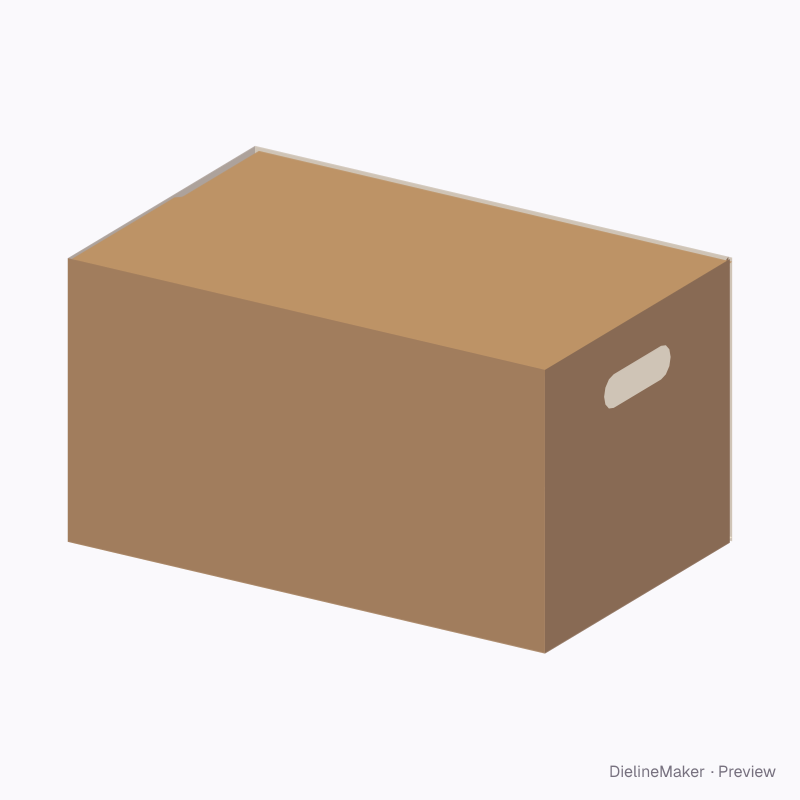

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0218Shipping
Tool carton 400×250×200 dieline
A double floor for heavy tools and a lid that relocks between jobs. A ready-sized preset of the tab-lock top box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 250 × 200 mm
Outside406.4 × 256.4 × 225.6 mm
Flat blank1341.6 × 719.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0218
- Inside size
- Length 400 · Width 250 · Height 200 mm
- Size range
- Length 120–800 · Width 80–500 · Height 60–800 mm
- Manufacturing
- 403.2 × 253.2 × 219.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.906 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0218 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 403.2 × 219.2 | L + T × H + 6T |
| Left side | 253.2 × 219.2 | W + T × H + 6T |
| Back | 403.2 × 219.2 | L + T × H + 6T |
| Right side | 250 × 219.2 | W × H + 6T |
| Glue flap | 32 × 219.2 | – |
| Bottom outer flap | 400 × 250 | L × W |
| Bottom inner flap ×2 | 246.8 × 250 | W − T × W |
| Bottom outer flap | 396.8 × 250 | L − T × W |
| Top outer flap | 400 × 250 | L × W |
| Top inner flap ×2 | 246.8 × 250 | W − T × W |
| Top outer flap | 396.8 × 169 | L − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Lid depthmm
- Hand holeson / off
The tab-lock top box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this tool carton 400×250×200 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
