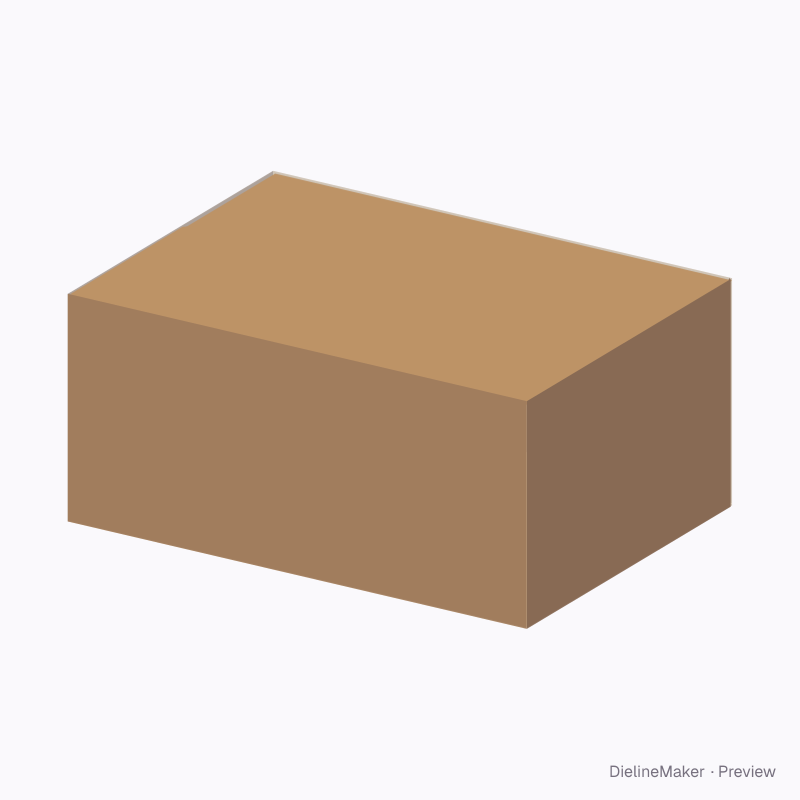

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0218Shipping
Returnable parts box 350×250×150 dieline
Tape-free top that opens and relocks for returns. A ready-sized preset of the tab-lock top box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside350 × 250 × 150 mm
Outside353.2 × 253.2 × 162.8 mm
Flat blank1224.8 × 659.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0218
- Inside size
- Length 350 · Width 250 · Height 150 mm
- Size range
- Length 120–800 · Width 80–500 · Height 60–800 mm
- Manufacturing
- 351.6 × 251.6 × 159.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.763 m²
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0218 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 351.6 × 159.6 | L + T × H + 6T |
| Left side | 251.6 × 159.6 | W + T × H + 6T |
| Back | 351.6 × 159.6 | L + T × H + 6T |
| Right side | 250 × 159.6 | W × H + 6T |
| Glue flap | 20 × 159.6 | – |
| Bottom outer flap | 350 × 250 | L × W |
| Bottom inner flap ×2 | 248.4 × 250 | W − T × W |
| Bottom outer flap | 348.4 × 250 | L − T × W |
| Top outer flap | 350 × 250 | L × W |
| Top inner flap ×2 | 248.4 × 250 | W − T × W |
| Top outer flap | 348.4 × 168 | L − T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Lid depthmm
- Hand holeson / off
The tab-lock top box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this returnable parts box 350×250×150 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
