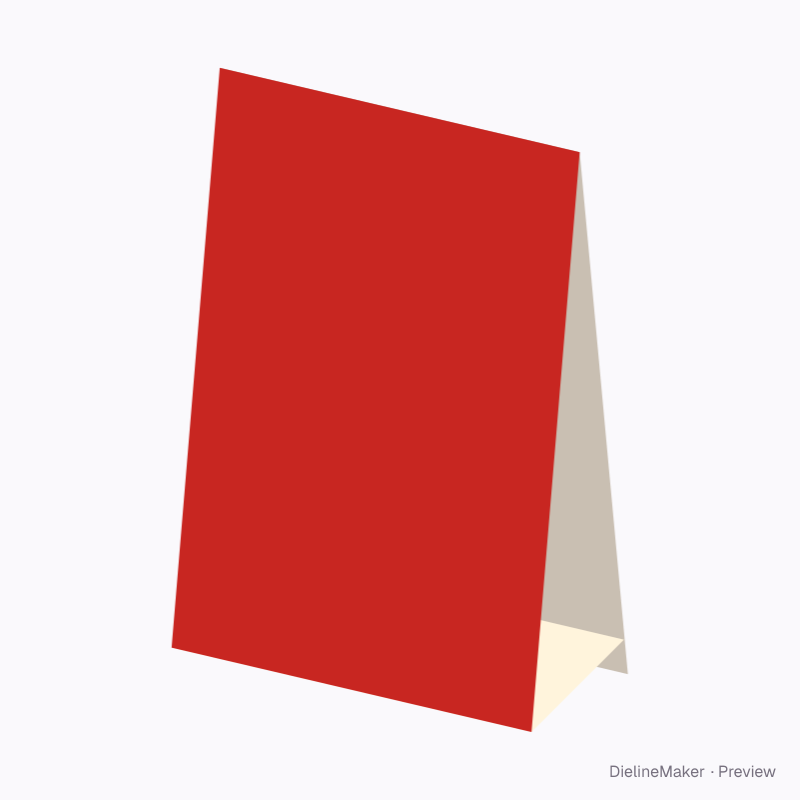

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureDisplay
Large event table tent — Table tent dieline
Editable 210 × 90 × 297 mm starting point using table tent. Adjust the dimensions to your product before prototyping. A ready-sized preset of the table tent — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside210 × 90 × 297 mm
Outside210 × 90 × 297 mm
Flat blank210 × 689 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Width 210 · Base depth 90 · Face height 297 mm
- Size range
- Width 50–400 · Base depth 20–250 · Face height 50–400 mm
- Manufacturing
- 210 × 90 × 297 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.144 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400SBS 300Kraft 350Black 350GD2 350SBS 18 pt
- Good for

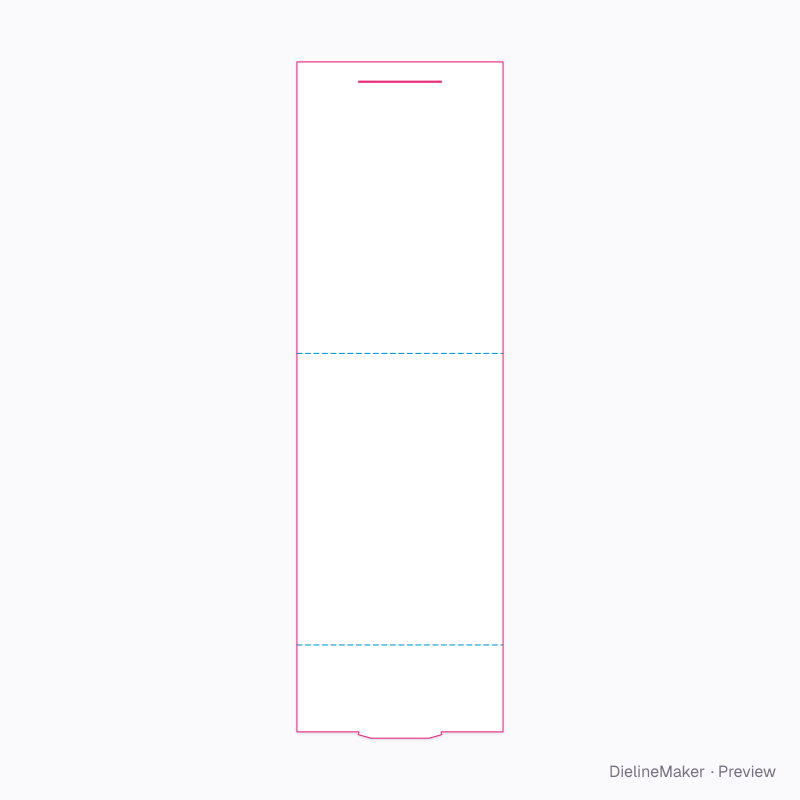

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front face | 210 × 297 | W × H |
| Back face | 210 × 297 | W × H |
| Base | 210 × 88.5 | W × Base |
| Lock tab | 84 × 6.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Base2 options
- Lock heightmm
- Tab widthmm
- Apex slot with upright graphicon / off
