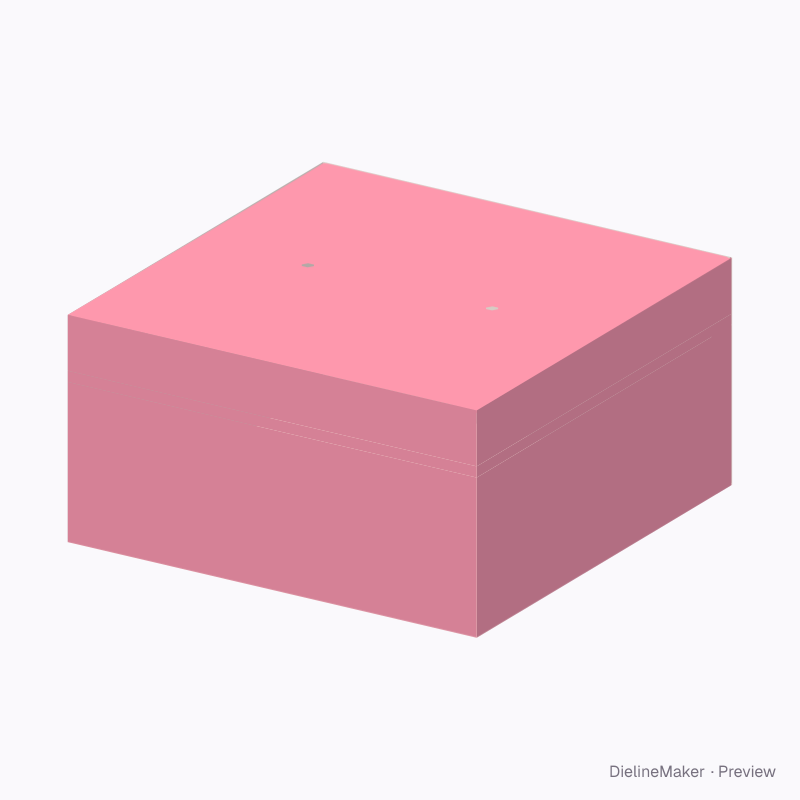

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCarriers
Low panettone tear-open carrier dieline
A sealed gift carrier with aligned holes through both roof plies for a separate cord or strap. Glue the full-overlap base after filling; tear the front-and-side strip to lift the top on its scored back hinge. The separate handle is supplied by you. A ready-sized preset of the tear-open carrying carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside199 × 199 × 101 mm
Outside200.2 × 200.2 × 102.2 mm
Flat blank812.8 × 499.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Inside length 199 · Inside width 199 · Inside height 101 mm
- Size range
- Inside length 80–500 · Inside width 80–500 · Inside height 50–350 mm
- Manufacturing
- 199.6 × 199.6 × 101.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.267 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350FBB 400Kraft 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Handle hole spacingmm
- Handle hole diametermm
- Top rim depthmm
- Tear strip widthmm
The tear-open carrying carton family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this low panettone tear-open carrier yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
