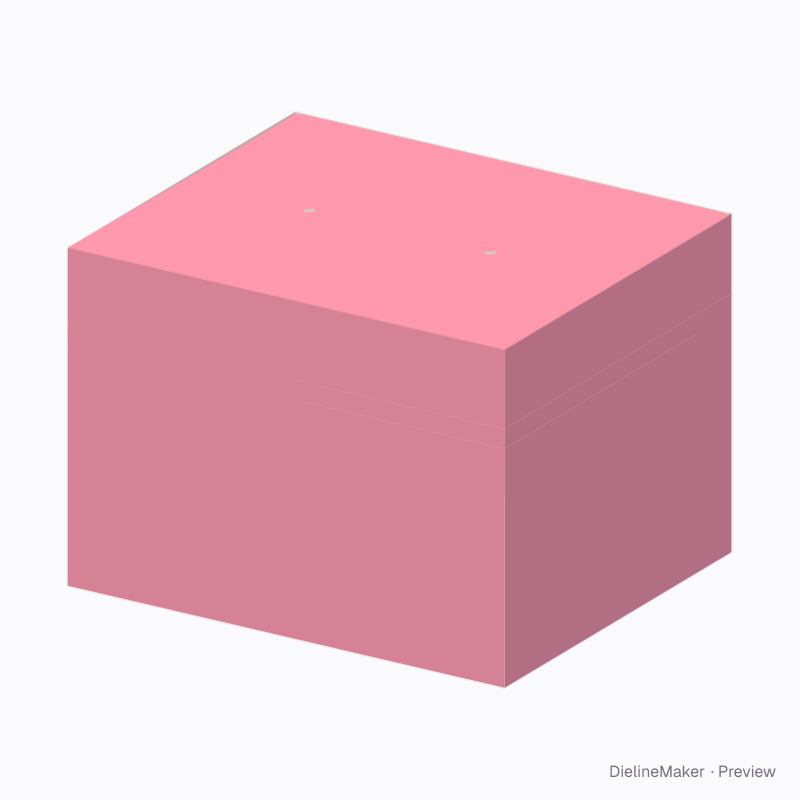

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCarriers
Small tear-open gift carton dieline
A sealed gift carrier with aligned holes through both roof plies for a separate cord or strap. Glue the full-overlap base after filling; tear the front-and-side strip to lift the top on its scored back hinge. The separate handle is supplied by you. A ready-sized preset of the tear-open carrying carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 100 × 85 mm
Outside120.9 × 100.9 × 85.9 mm
Flat blank456.4 × 285.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Inside length 120 · Inside width 100 · Inside height 85 mm
- Size range
- Inside length 80–500 · Inside width 80–500 · Inside height 50–350 mm
- Manufacturing
- 120.5 × 100.5 × 85.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.099 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350FBB 400Kraft 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for
The flat dieline

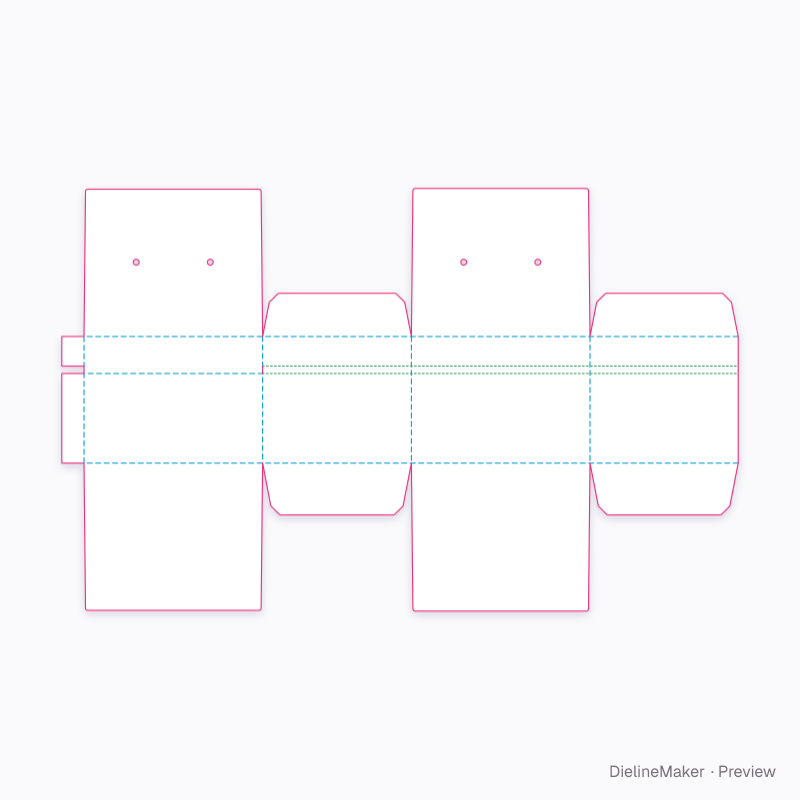

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 120.5 × 60.5 | L + T × – |
| Left side | 100.5 × 60.5 | W + T × – |
| Back | 120.5 × 60.5 | L + T × – |
| Right side | 100 × 60.5 | W × – |
| Glue flap | 15 × 60.5 | – |
| Back lifting hinge | 120.5 × 25 | L + T × – |
| Left top rim | 100.5 × 20 | W + T × – |
| Front top rim | 120.5 × 20 | L + T × – |
| Right top rim | 100 × 20 | W × – |
| Top rim side glue flap | 15 × 20 | – |
| Left tear strip | 100.5 × 5 | W + T × – |
| Front tear strip | 120.5 × 5 | L + T × – |
| Right tear strip | 100 × 5 | W × – |
| Dust flap | 100.5 × 29.2 | W + T × – |
| Dust flap | 100 × 29.2 | W × – |
| Inner seal flap ×2 | 120.5 × 99.5 | L + T × W − T |
4 more panels are listed in the editor’s structure step.
