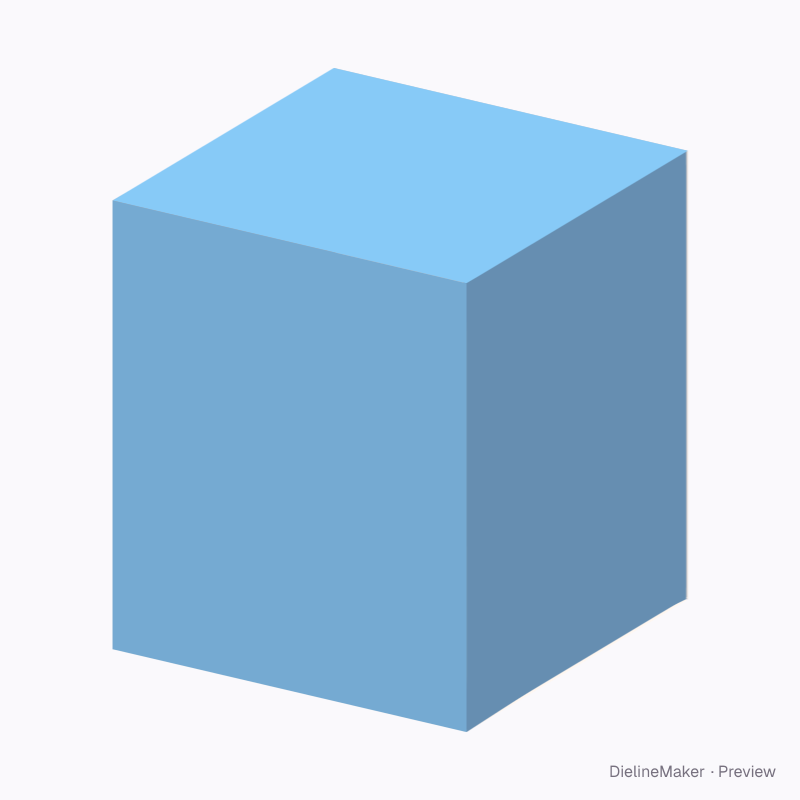

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureTuck end
Boutique tissue cube dieline
Upright cube with a round tear-out on the top. A ready-sized preset of the tissue box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside112 × 112 × 130 mm
Outside113 × 113 × 131 mm
Flat blank335.5 × 497.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 112 · Width 112 · Height 130 mm
- Size range
- Length 60–320 · Width 50–200 · Height 30–200 mm
- Manufacturing
- 112.5 × 112.5 × 130.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.123 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350GD2 350SBS 300Kraft 350FBB 400SBS 18 pt
- Good for

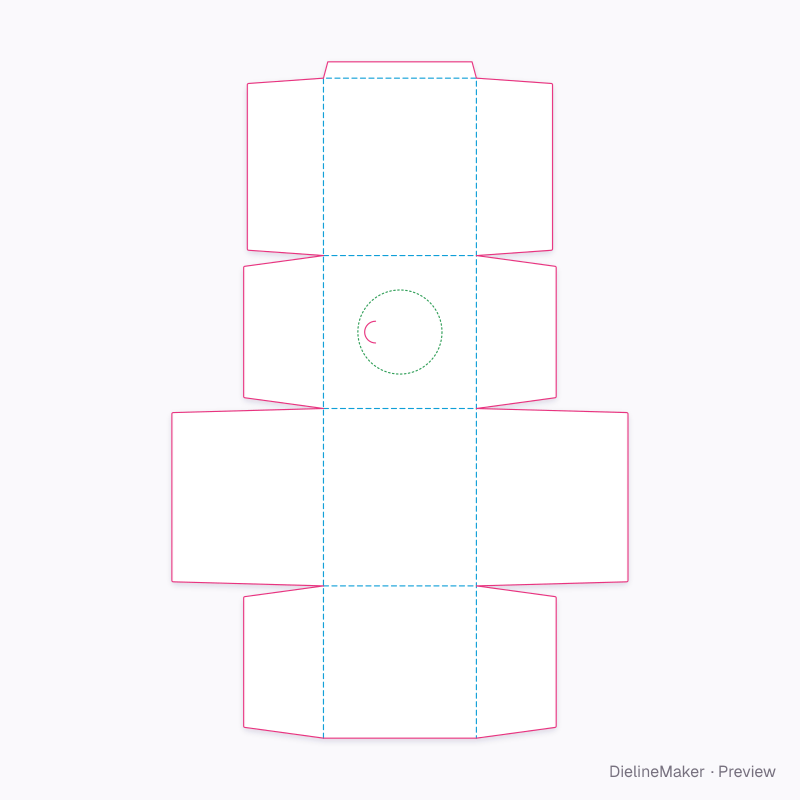

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Top | 112.5 × 112.5 | L + T × W + T |
| Back | 112.5 × 130.5 | L + T × H + T |
| Front | 112.5 × 130.5 | L + T × H + T |
| Bottom | 112.5 × 112 | L + T × W |
| Glue flap | 112.5 × 12 | – |
| Minor flap | 58.7 × 112.5 | – |
| Minor flap | 58.7 × 112 | – |
| Left inner flap | 56 × 130.5 | – × H + T |
| Left end | 111.5 × 130.5 | – × H + T |
| Minor flap | 58.7 × 112.5 | – |
| Minor flap | 58.7 × 112 | – |
| Right inner flap | 56 × 130.5 | – × H + T |
| Right end | 111.5 × 130.5 | – × H + T |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Dispenser4 options
- Opening lengthmm
- Film patchon / off
- Ends2 options

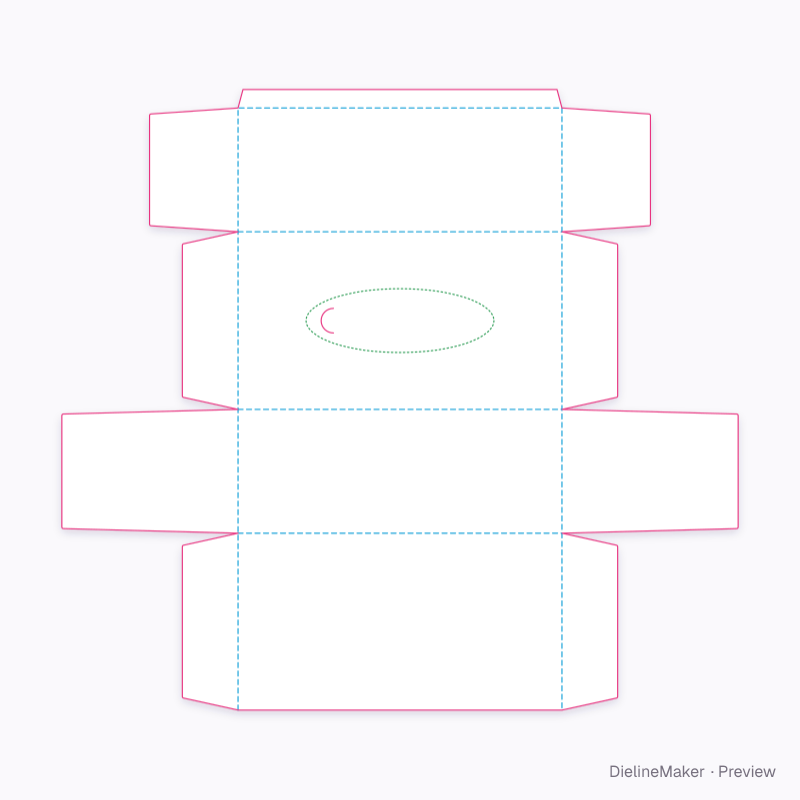

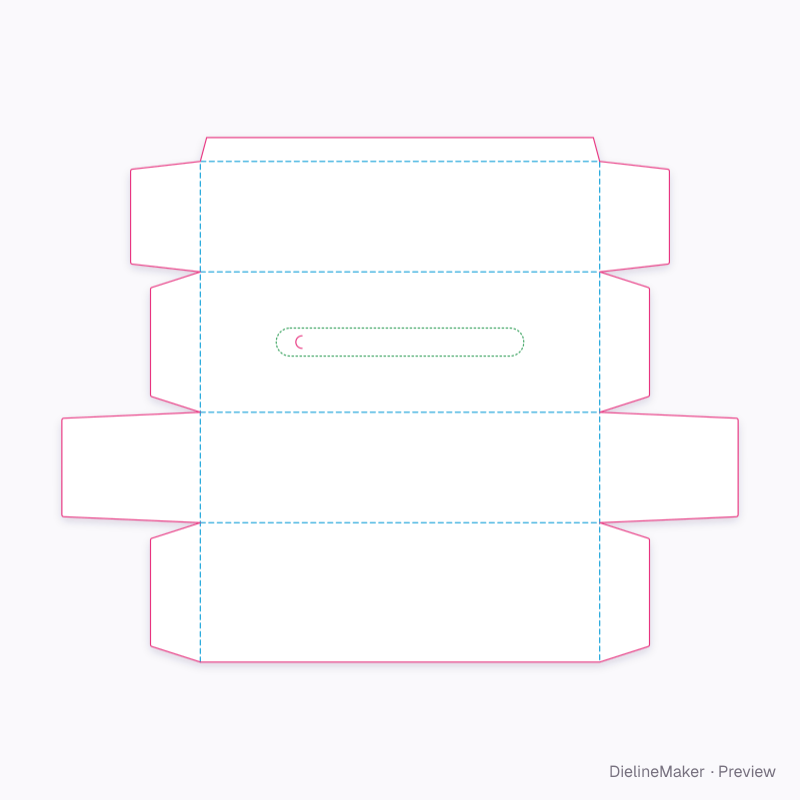

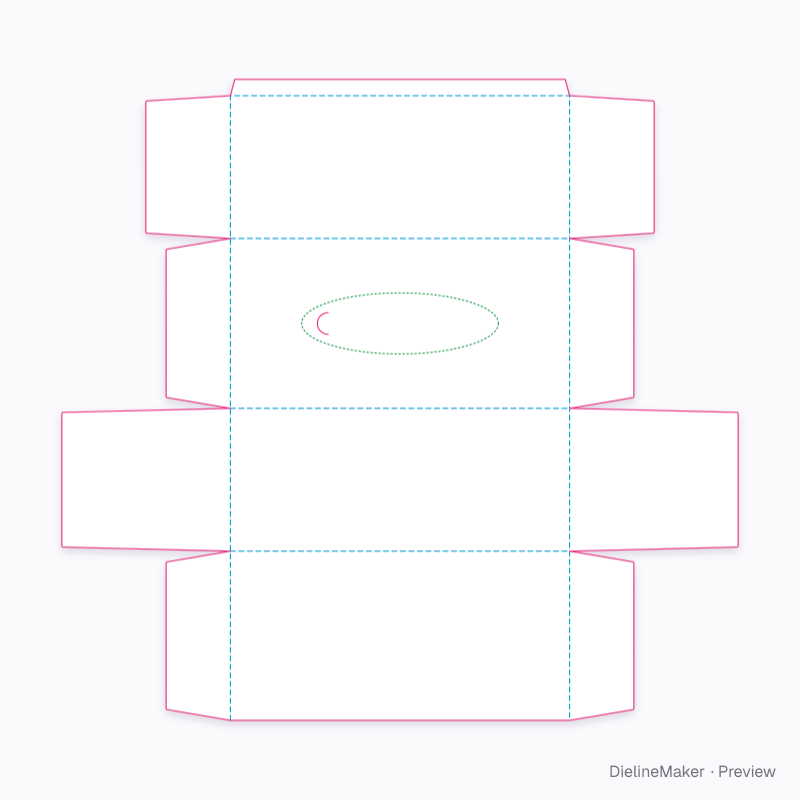

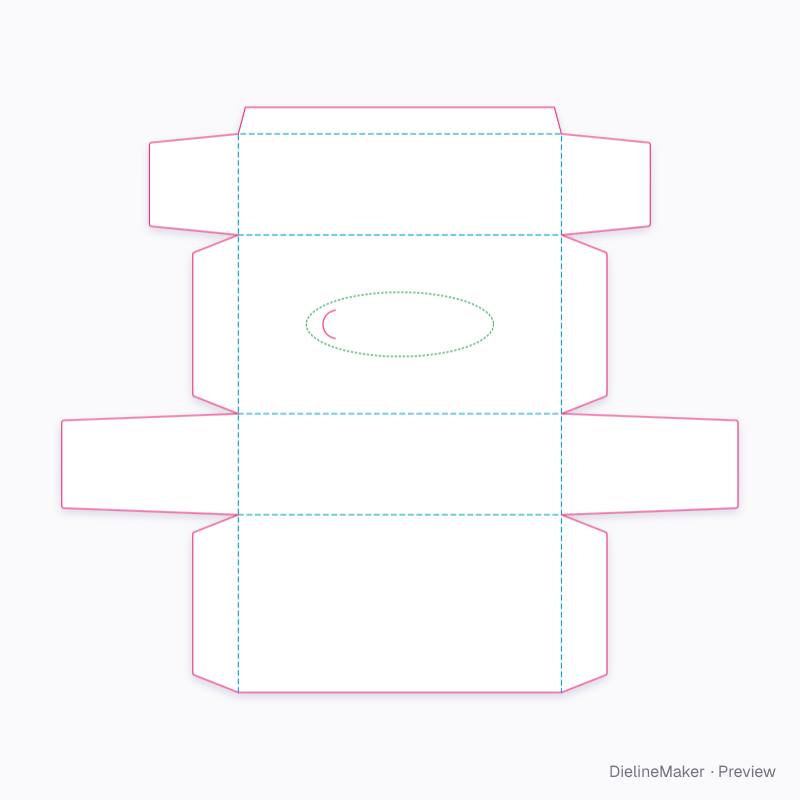

The tissue box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset

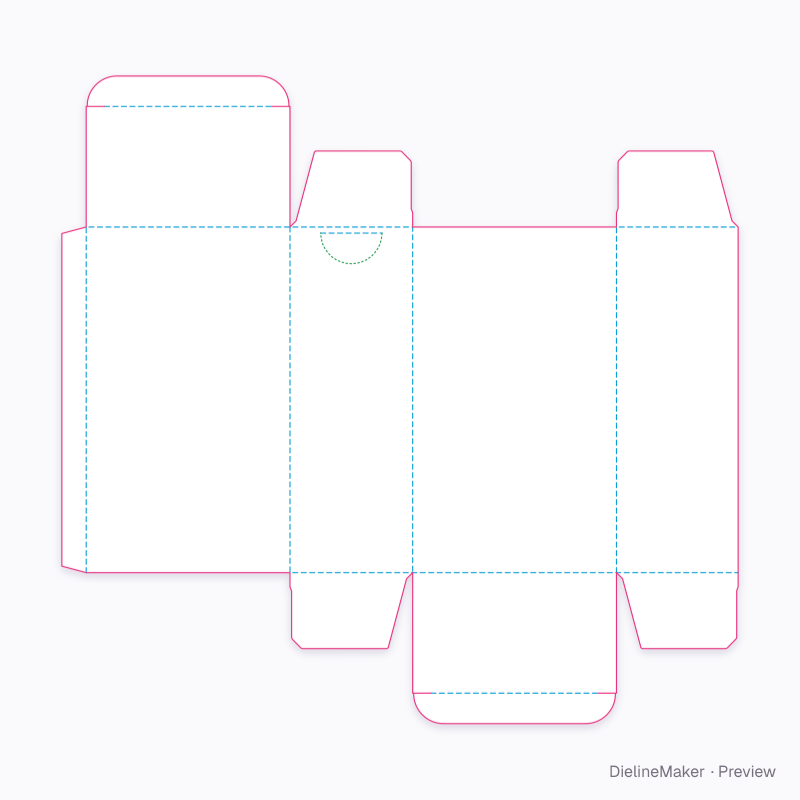

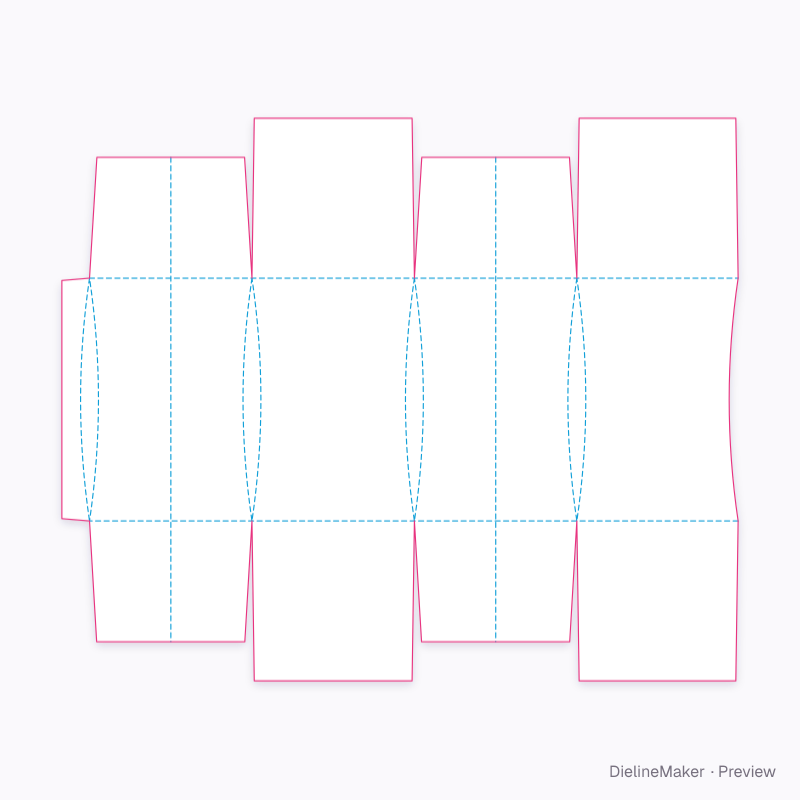

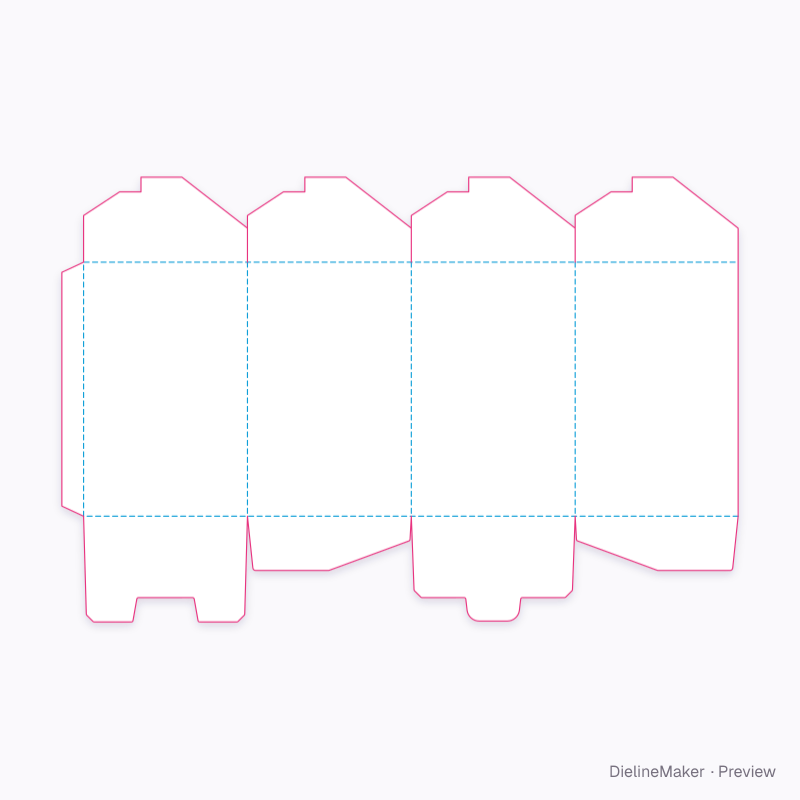

Similar structures
