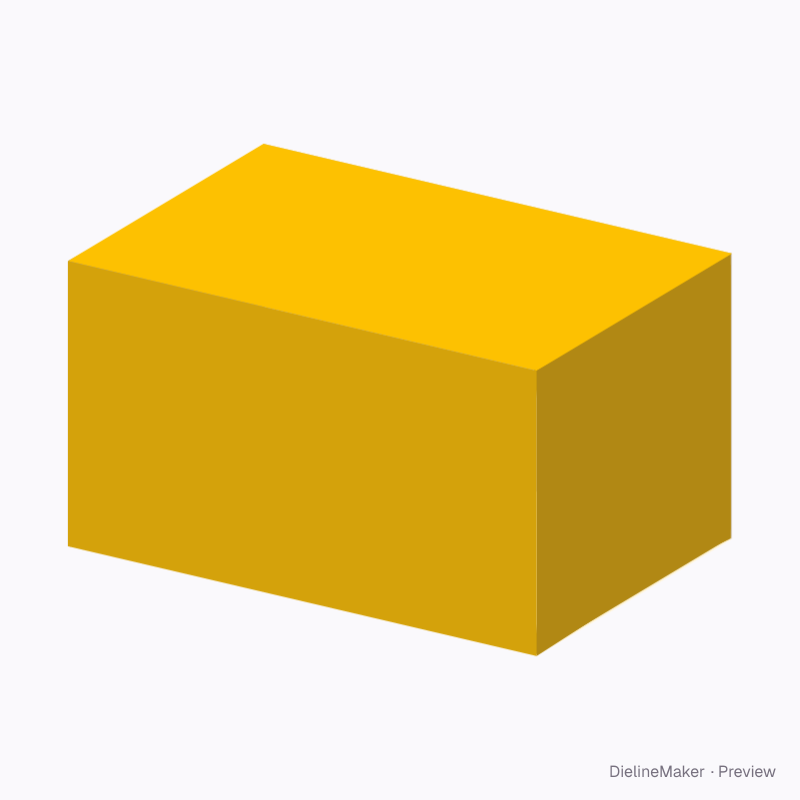

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureTuck end
Napkin dispenser box dieline
Counter box that dispenses folded napkins. A ready-sized preset of the tissue box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 120 × 100 mm
Outside181 × 121 × 101 mm
Flat blank419.5 × 453.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 180 · Width 120 · Height 100 mm
- Size range
- Length 60–320 · Width 50–200 · Height 30–200 mm
- Manufacturing
- 180.5 × 120.5 × 100.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.137 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350GD2 350SBS 300Kraft 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Top | 180.5 × 120.5 | L + T × W + T |
| Back | 180.5 × 100.5 | L + T × H + T |
| Front | 180.5 × 100.5 | L + T × H + T |
| Bottom | 180.5 × 120 | L + T × W |
| Glue flap | 180.5 × 12 | L + T × – |
| Minor flap | 45.2 × 120.5 | – × W + T |
| Minor flap | 45.2 × 120 | – × W |
| Left inner flap | 60 × 100.5 | – × H + T |
| Left end | 119.5 × 100.5 | W − T × H + T |
| Minor flap | 45.2 × 120.5 | – × W + T |
| Minor flap | 45.2 × 120 | – × W |
| Right inner flap | 60 × 100.5 | – × H + T |
| Right end | 119.5 × 100.5 | W − T × H + T |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Dispenser4 options
- Opening lengthmm
- Film patchon / off
- Ends2 options
The tissue box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this napkin dispenser box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
