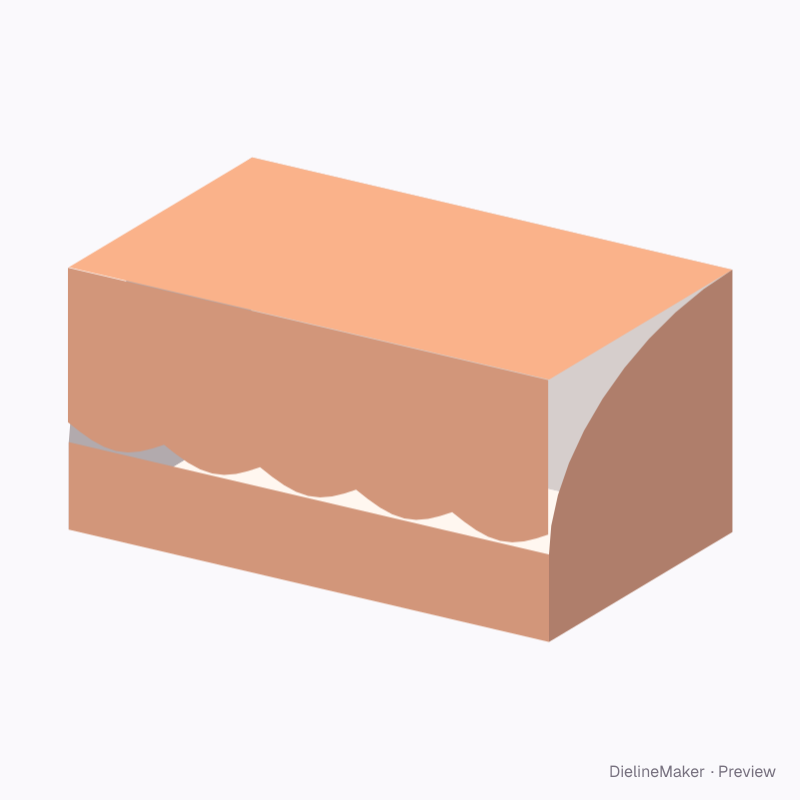

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-WING-SHELL-01Tuck end
Side-opening wing shell carton dieline
A carton with curved side wings, a shell lid with a scalloped front flap and a low hinged front panel hooked inside the wings. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 110 × 90 mm
Outside181 × 111 × 91 mm
Flat blank360 × 399 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-WING-SHELL-01
- Inside size
- Length 180 · Depth 110 · Height 90 mm
- Size range
- Length 60–400 · Depth 40–300 · Height 40–300 mm
- Manufacturing
- 180.5 × 110.5 × 90.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.093 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350E-flute WSBS 18 pt
- Good for

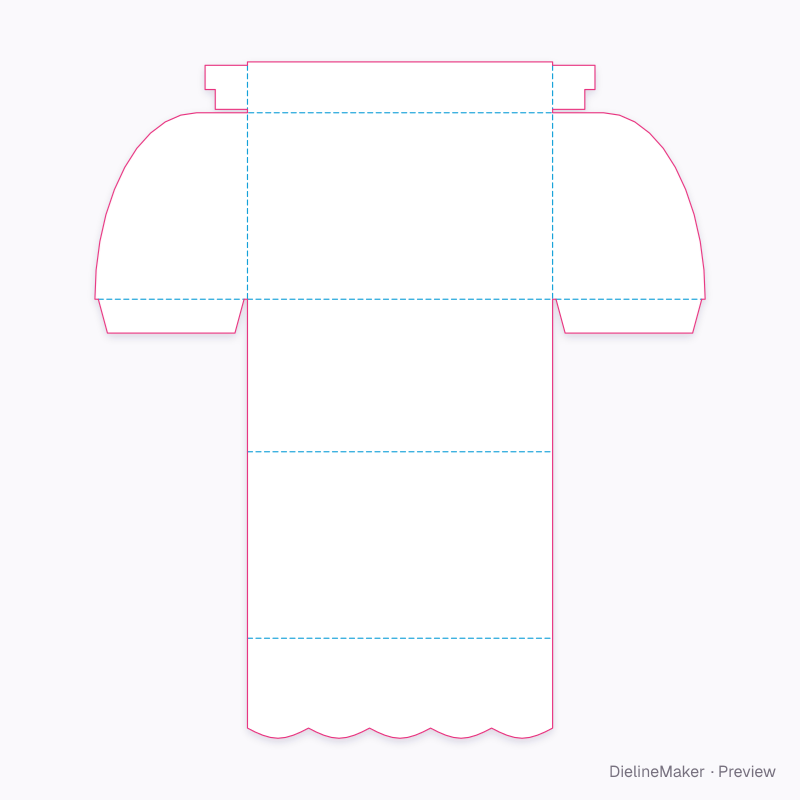

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-WING-SHELL-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 180 × 110 | L × W |
| Back | 180 × 90 | L × H |
| Curved side wing ×2 | 90 × 110 | H × W |
| Front opening panel | 180 × 30 | L × – |
| Shell top | 180 × 110 | L × W |
| Glue flap ×2 | 86 × 20 | – |
| Hooked side flap ×2 | 25 × 26 | – |
| Scalloped front flap | 180 × 59 | L × – |
