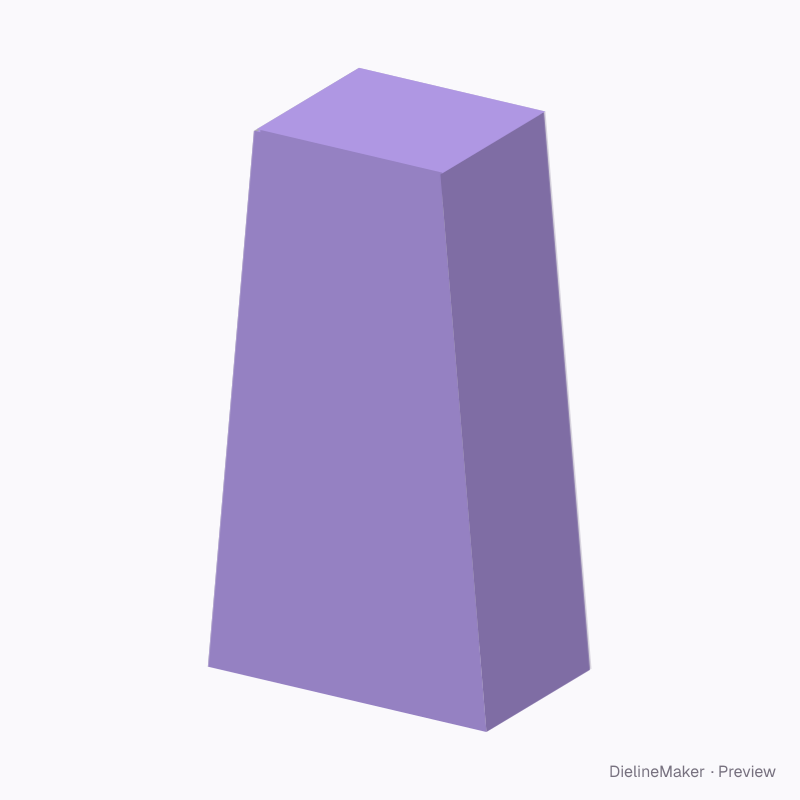

Tapered perfume box dieline
Tall carton narrowing to the cap of a 50 ml bottle. A ready-sized preset of the trapezoid box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside75 × 45 × 135 mm
Outside76.2 × 46.2 × 136.2 mm
Flat blank252.2 × 265.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Base length 75 · Depth 45 · Height 135 mm
- Size range
- Base length 40–400 · Depth 20–250 · Height 30–400 mm
- Manufacturing
- 75.6 × 45.6 × 135.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.042 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 75.6 × 135.6 | L + T × H + T |
| Left side | 45.6 × 136.2 | W + T × √((H + T)² + run²) |
| Back | 75.3 × 136.2 | – |
| Right side | 45 × 136.2 | W × √((H + T)² + run²) |
| Glue flap | 12 × 136.2 | – |
| Top closure | 50.6 × 44.4 | – × W − T |
| Tuck | 49.4 × 15 | – |
| Top dust flap | 45.6 × 24.3 | W + T × – |
| Top dust flap | 45 × 24.3 | W × – |
| Bottom closure | 75.6 × 44.4 | L + T × W − T |
| Tuck | 74.4 × 15 | L − T × – |
| Bottom dust flap | 45.6 × 30 | W + T × – |
| Bottom dust flap | 45 × 30 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Top lengthmm
- Tuck depthmm
- Slit lockon / off
- Thumb notchon / off
