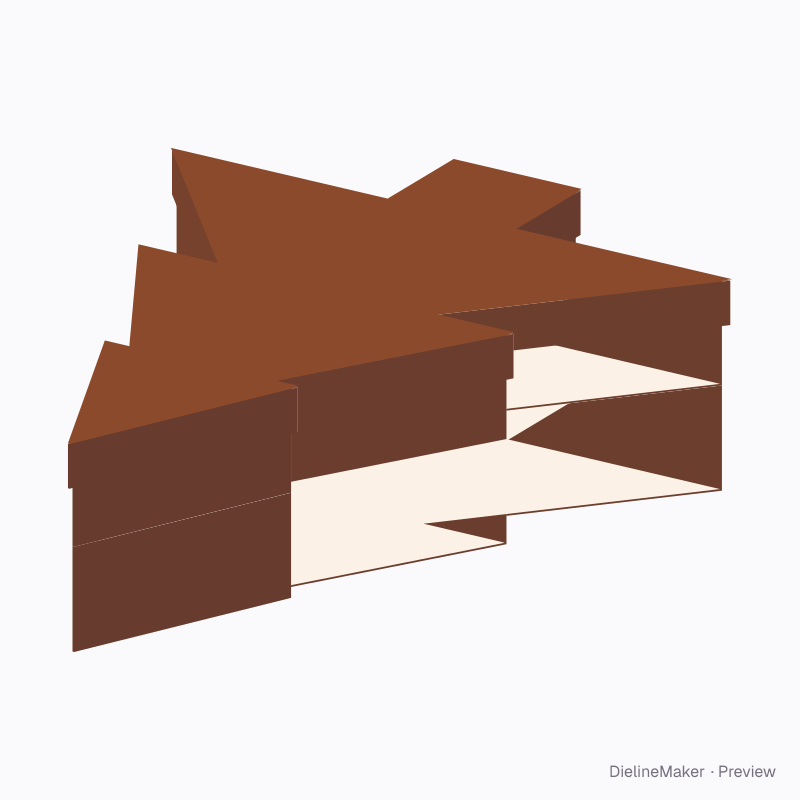

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-TREE-GIFT-BOX-01Shapes
Double-layer Christmas tree box dieline
A Christmas-tree tray and matching lift-off lid: a simple triangle or one to four stepped branch tiers above a trunk, with scored walls following every step. A ready-sized preset of the tree-shaped gift box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 260 × 35 mm
Outside201 × 261 × 36 mm
Flat blank895.6 × 42.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TREE-GIFT-BOX-01
- Inside size
- Width 200 · Height of the tree 260 · Depth 35 mm
- Size range
- Width 60–400 · Height of the tree 80–500 · Depth 15–120 mm
- Manufacturing
- 200.5 × 260.5 × 35.5 mm score to score · inside vs outside sizes
- Parts
- 6 parts — Lid cap, Base wall strip, Base cap, Lid wall strip, Upper tray wall, Upper tray floor
- Board area
- 0.158 m² · about 14 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-TREE-GIFT-BOX-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Gift box lidLid cap | 222.6 × 100 | – |
| Pose rigLid cap | 35 × 100 | – |
| Base wall ×2Base wall strip | 81.8 × 35.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 81.8 × 7 | – |
| Base wall ×2Base wall strip | 9.3 × 35.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 9.3 × 4.2 | – |
| Base wall ×2Base wall strip | 85.1 × 35.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 85.1 × 7 | – |
| Base wall ×2Base wall strip | 29.9 × 35.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 29.9 × 7 | – |
| Base wall ×2Base wall strip | 97.1 × 35.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 97.1 × 7 | – |
| Base wall ×2Base wall strip | 78.3 × 35.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 78.3 × 7 | – |
| Base wall ×2Base wall strip | 39 × 35.5 | – × H + T |
| Cap bonding tab ×2Base wall strip | 39 × 7 | – |
40 more panels are listed in the editor’s structure step.
