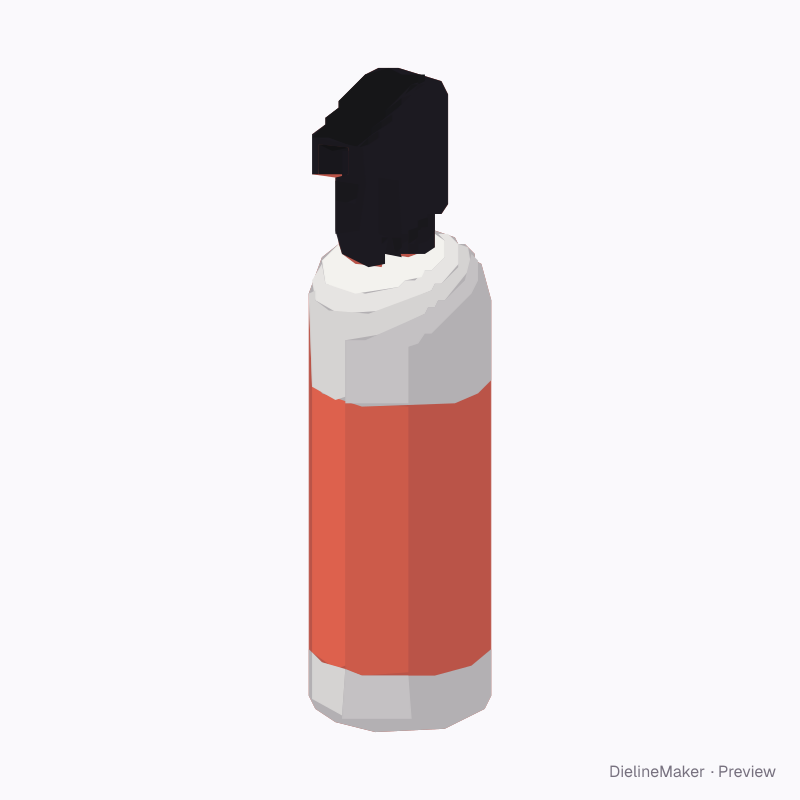

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Trigger spray 1 l label template
Large HDPE bottle for garden and pet sprays. A ready-sized preset of the trigger spray bottle — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 88 × 255 mm
Artwork area177.3 × 140 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Diameter 88 · Height to neck top 255 mm
- Size range
- Diameter 45–110 · Height to neck top 120–320 mm
- Parts
- One artwork area
- Artwork area
- 0.025 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 8 options; the template and 3D preview follow each change.
- Wrap coverage%
- Label heightmm
- Label from basemm
- Body7 options
- Trigger colour9 options
- Sprayer housing2 options
- Contents7 options
- Fill level%
The trigger spray bottle family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this trigger spray 1 l yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
