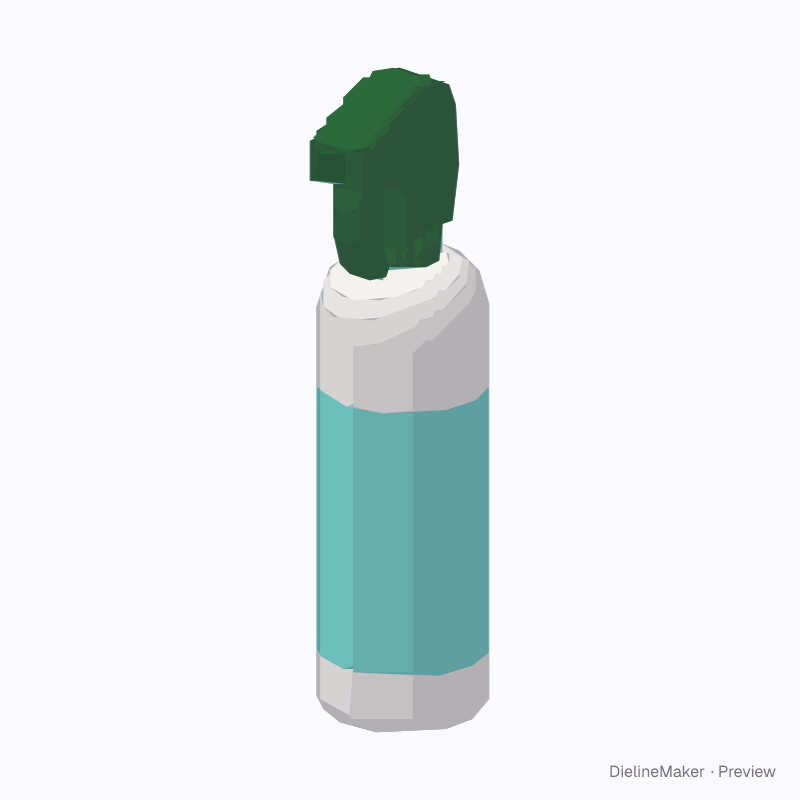

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
All-purpose cleaner 750 ml label template
White HDPE with a green trigger and a full wrap label. A ready-sized preset of the trigger spray bottle — adjust the object dimensions and decoration area to preview your artwork at size.
Object sizeØ 78 × 235 mm
Artwork area251.6 × 129 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Diameter 78 · Height to neck top 235 mm
- Size range
- Diameter 45–110 · Height to neck top 120–320 mm
- Parts
- One artwork area
- Artwork area
- 0.032 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 9 options; the template and 3D preview follow each change.
- Wrap coverage%
- Overlapmm
- Label heightmm
- Label from basemm
- Body7 options
- Trigger colour9 options
- Sprayer housing2 options
- Contents7 options
- Fill level%
The trigger spray bottle family
The same model with sizes and artwork options ready to customize.
