Razor blade hanger dieline

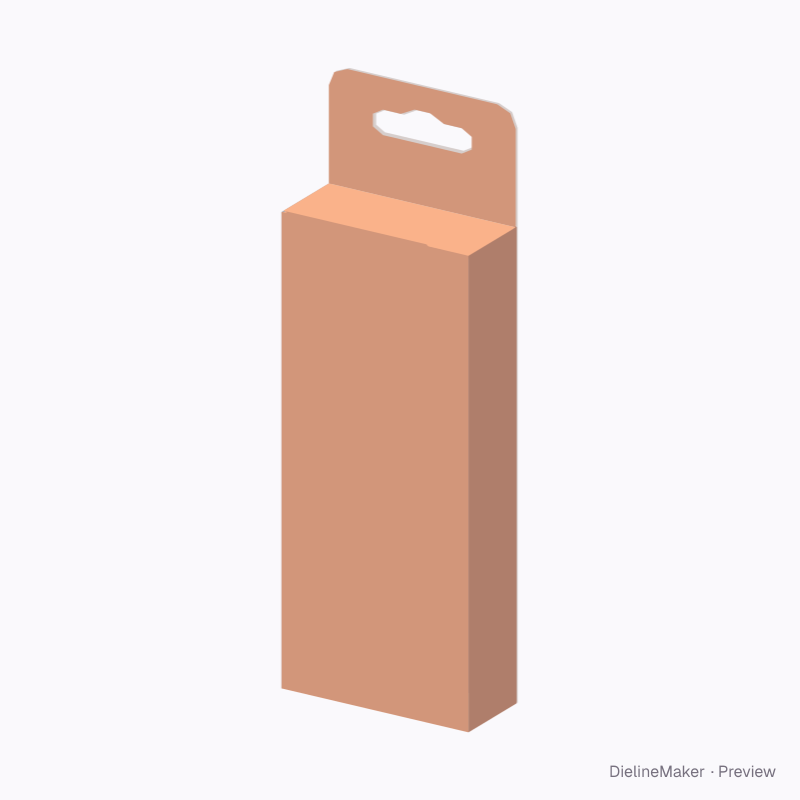

Peg carton for a four-pack of razor cartridges. A ready-sized preset of the tuck top hanger — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside60 × 25 × 140 mm
Outside61 × 26 × 141 mm
Flat blank183.5 × 282.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA A20.20.03.01
- Inside size
- Length 60 · Width 25 · Height 140 mm
- Size range
- Length 25–250 · Width 10–150 · Height 20–400 mm
- Manufacturing
- 60.5 × 25.5 × 140.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.036 m² · about 10 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350Black 350SBS 18 pt
- Good for

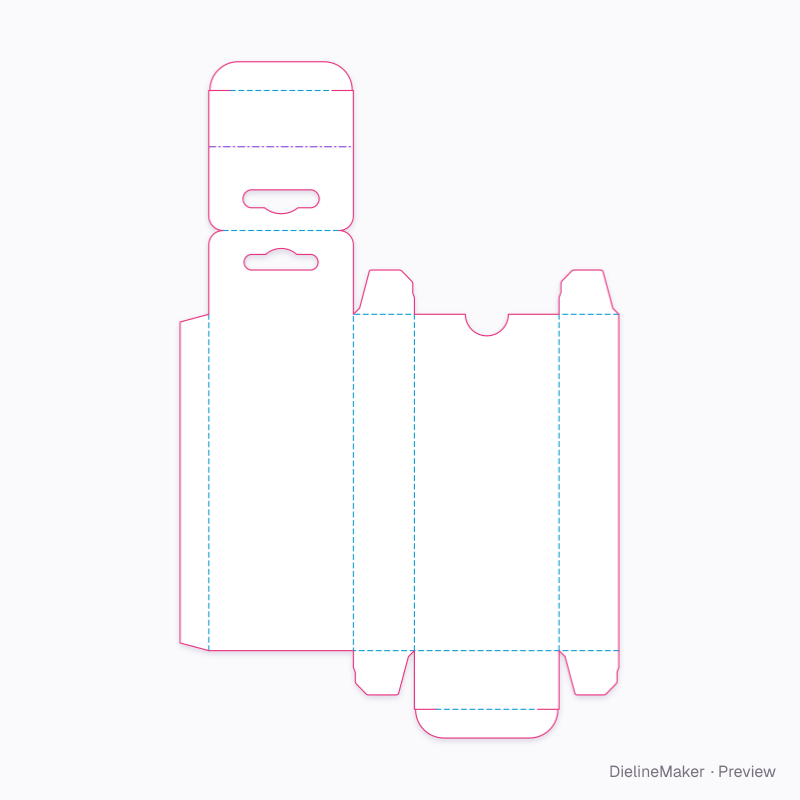

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA A20.20.03.01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 60.5 × 140.5 | L + T × H + T |
| Left side | 25.5 × 140.5 | W + T × H + T |
| Back | 60.5 × 140.5 | L + T × H + T |
| Right side | 25 × 140.5 | W × H + T |
| Glue flap | 12 × 140.5 | – × H + T |
| Top dust flap | 25.5 × 18.5 | W + T × – |
| Top dust flap | 25 × 18.5 | W × – |
| Bottom closure | 60.5 × 24.5 | L + T × W − T |
| Bottom tuck | 59.5 × 12 | L − T × – |
| Bottom dust flap | 25.5 × 18.5 | W + T × – |
| Bottom dust flap | 25 × 18.5 | W × – |
| Hang header | 60.5 × 35 | L + T × – |
| Header back ply | 48.5 × 35 | – |
| Top closure | 60.5 × 23.5 | L + T × – |
| Top tuck | 59.5 × 12 | L − T × – |
