FEFCO 0215Shipping
Tuck-top box 8 × 4 × 6 in dieline
An 8 × 4 in top that opens and closes on a tuck tab, glued sides and a locking base: the classroom package-design box. A ready-sized preset of the tuck-top lock-bottom box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside203 × 102 × 152 mm
Outside206.2 × 105.2 × 158.4 mm
Flat blank634.8 × 336.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0215
- Inside size
- Length 203 · Width 102 · Height 152 mm
- Size range
- Length 80–800 · Width 50–600 · Height 50–800 mm
- Manufacturing
- 204.6 × 103.6 × 155.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.161 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-fluteF-fluteEB double
- Good for
The flat dieline

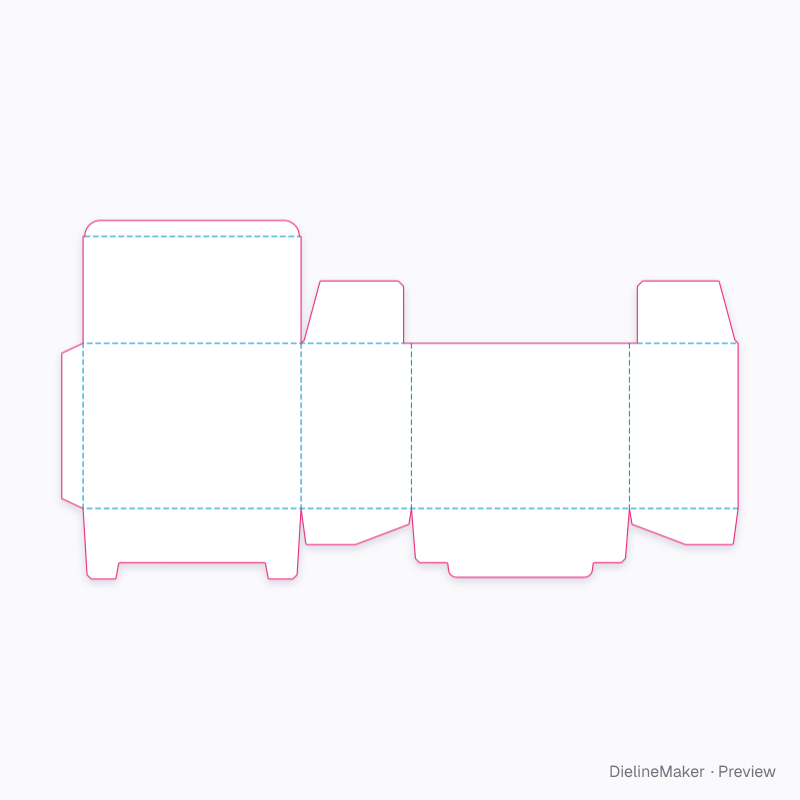

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How it folds
The tuck-top box 8 × 4 × 6 in erects in 7 steps, in the order the creases are scored to take. The editor plays the same sequence in 3D and lights each step’s creases on the dieline.
- 1Fold the walls upLeft side, Back, Right side, Glue flap
- 2Fold the flapsSnap end and 1 more
- 3Lock the tabsSnap bottom
- 4Lock the tabsSnap tuck
- 5Fold the dust flaps inTop dust flap and 1 more
- 6Tuck the flaps inTop tuck
- 7Close the end flapsTop closure
How the blank is sized
Score-to-score panel sizes of this FEFCO 0215 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 204.6 × 155.2 | L + T × H + 2T |
| Left side | 103.6 × 155.2 | W + T × H + 2T |
| Back | 204.6 × 155.2 | L + T × H + 2T |
| Right side | 102 × 155.2 | W × H + 2T |
| Glue flap | 20 × 155.2 | – × H + 2T |
| Snap end | 103.6 × 34 | W + T × – |
| Snap end | 102 × 34 | W × – |
| Snap bottom | 204.6 × 66.3 | L + T × – |
| Snap tuck | 204.6 × 64.7 | L + T × – |
| Top closure | 204.6 × 100.4 | L + T × W − T |
| Top tuck | 201.4 × 15 | L − T × – |
| Top dust flap | 96.2 × 58.5 | – |
| Top dust flap | 94.6 × 58.5 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Tuck depthmm
- Thumb notchon / off
- Tongue widthmm
- Tongue heightmm
