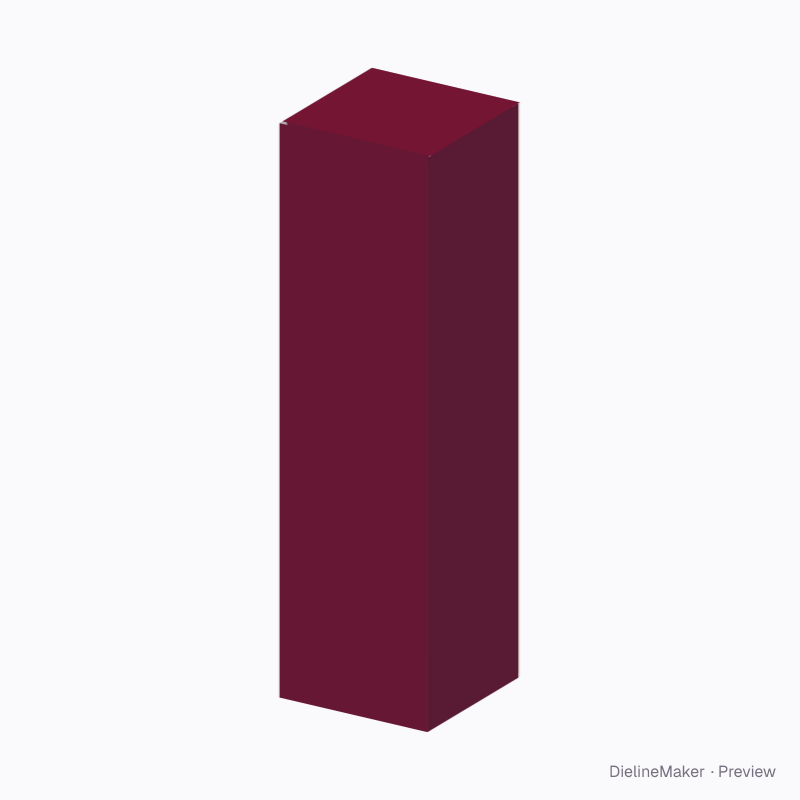

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0215Shipping
Wine bottle box 95×95×340 dieline
Single-bottle gift box for a 750 ml bottle. A ready-sized preset of the tuck-top lock-bottom box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside95 × 95 × 340 mm
Outside98.2 × 98.2 × 346.4 mm
Flat blank404.8 × 513.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0215
- Inside size
- Length 95 · Width 95 · Height 340 mm
- Size range
- Length 80–800 · Width 50–600 · Height 50–800 mm
- Manufacturing
- 96.6 × 96.6 × 343.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.172 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-fluteF-fluteEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0215 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 96.6 × 343.2 | L + T × H + 2T |
| Left side | 96.6 × 343.2 | W + T × H + 2T |
| Back | 96.6 × 343.2 | L + T × H + 2T |
| Right side | 95 × 343.2 | W × H + 2T |
| Glue flap | 20 × 343.2 | – × H + 2T |
| Snap end | 96.6 × 31.7 | – |
| Snap end | 95 × 31.7 | – |
| Snap bottom | 96.6 × 61.8 | – |
| Snap tuck | 96.6 × 60.1 | – |
| Top closure | 96.6 × 93.4 | – |
| Top tuck | 93.4 × 15 | – |
| Top dust flap | 89.2 × 47.3 | – |
| Top dust flap | 87.6 × 47.3 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 4 options; the template and 3D preview follow each change.
- Tuck depthmm
- Thumb notchon / off
- Tongue widthmm
- Tongue heightmm
