DM-TURN-OVER-LID-TRAY-B-01Mailer
Turn-over lid tray B · eared tuck dieline
Hinged-lid tray whose front tuck has rounded end ears. A ready-sized preset of the turn-over hinged-lid tray — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside250 × 180 × 60 mm
Outside266 × 183.2 × 63.2 mm
Flat blank510.8 × 533.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TURN-OVER-LID-TRAY-B-01
- Inside size
- Length 250 · Width 180 · Height 60 mm
- Size range
- Length 60–600 · Width 40–450 · Height 20–250 mm
- Manufacturing
- 264.4 × 181.6 × 61.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.216 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- SBS 350E-flute WE-flute KF-fluteFBB 400Kraft 350SBS 18 pt
- Good for
The flat dieline

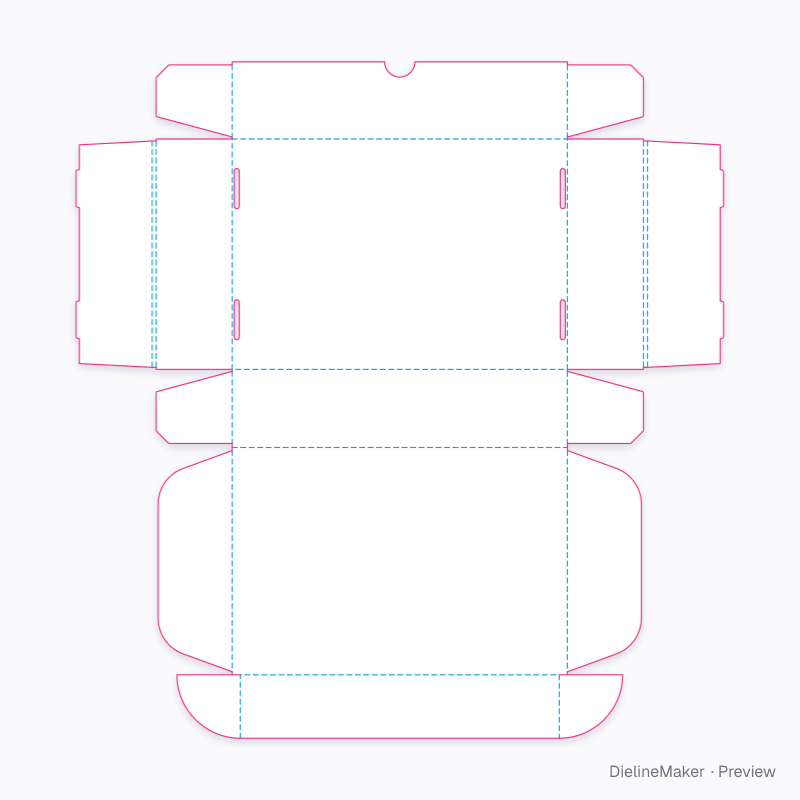

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-TURN-OVER-LID-TRAY-B-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 264.4 × 181.6 | – × W + T |
| Front | 264.4 × 60.8 | – × H + T/2 |
| Back | 264.4 × 61.6 | – × H + T |
| Front ear ×2 | 60 × 56.8 | H × H − 2T |
| Back ear ×2 | 60 × 56.8 | H × H − 2T |
| Left end | 60 × 181.6 | H × W + T |
| Left end roll | 3.2 × 178.4 | – × W − T |
| Left end (inside) | 60 × 178.4 | H × W − T |
| Right end | 60 × 181.6 | H × W + T |
| Right end roll | 3.2 × 178.4 | – × W − T |
| Right end (inside) | 60 × 178.4 | H × W − T |
| Lid | 264.4 × 179.2 | – × W − T/2 |
| Lid ear ×2 | 58.4 × 174.4 | H − T × – |
| Front tuck | 251.6 × 50 | L + T × – |
| Front tuck end ear ×2 | 50 × 50 | – |
