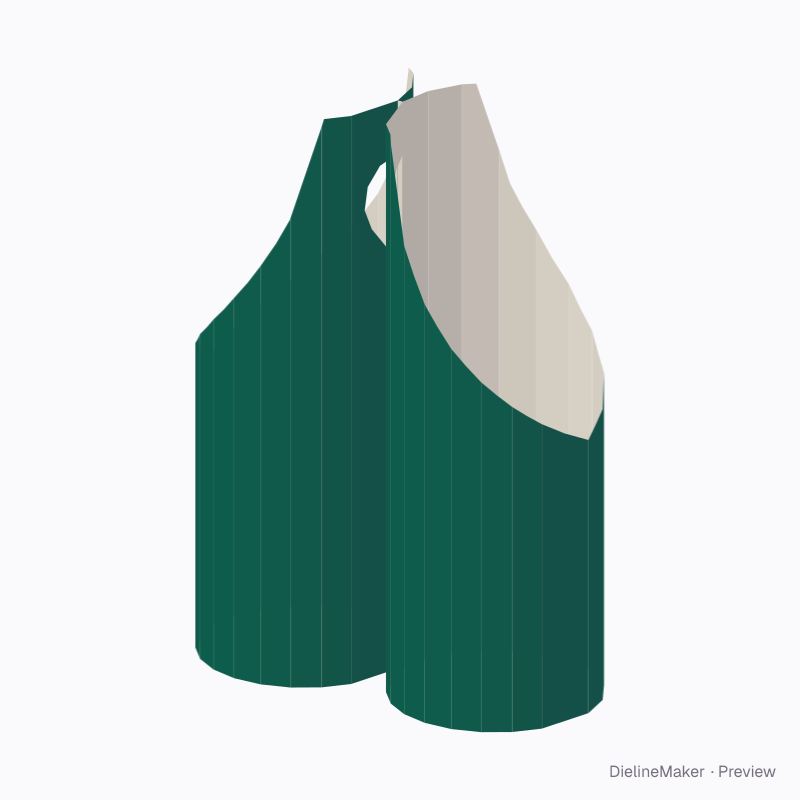

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F50.11.00.00Carriers
Two-bottle round carrier dieline
Carries two bottles or jars side by side by a central handle, e.g. a pair of craft-beer bottles or sauce jars. A ready-sized preset of the two-compartment round carrier — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 100 mm
Outside151.3 × 101 mm
Flat blank491 × 279.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F50.11.00.00
- Inside size
- Length (both compartments) 150 · Wall height 100 mm
- Size range
- Length (both compartments) 60–400 · Wall height 30–300 mm
- Manufacturing
- 150.5 × 100.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.086 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F50.11.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
