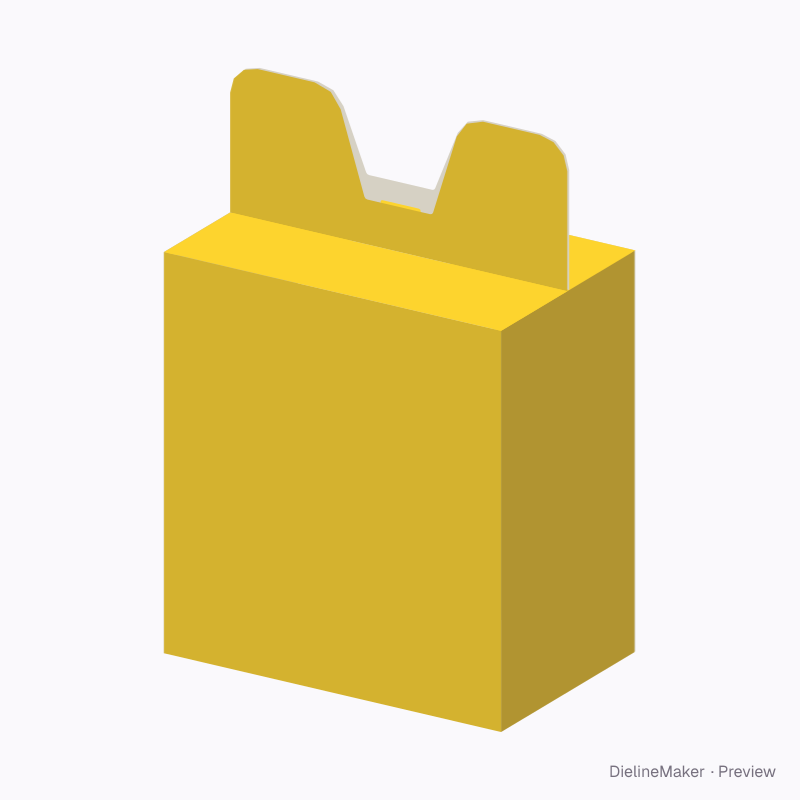

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureShapes
Party ear gift carton dieline
Two half lids carry paired rounded ears that meet back to back. A shaped central tongue passes through the opposite ear rail and holds the decorative closure together. A ready-sized preset of the twin-ear locking gift carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside110 × 70 × 120 mm
Outside111 × 71 × 121 mm
Flat blank373.5 × 243.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 110 · Width 70 · Height 120 mm
- Size range
- Length 60–400 · Width 40–250 · Height 40–400 mm
- Manufacturing
- 110.5 × 70.5 × 120.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.078 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400Kraft 350Black 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 110.5 × 120.5 | L + T × H + T |
| Left side | 70.5 × 120.5 | W + T × H + T |
| Back | 110.5 × 120.5 | L + T × H + T |
| Right side | 70 × 120.5 | W × H + T |
| Glue flap | 12 × 120.5 | – × H + T |
| Crash-lock flap (back) | 110.5 × 43.3 | L + T × – |
| Glued web ×2 | 49.9 × 24.5 | – |
| Bottom side flap | 70.5 × 35 | W + T × – |
| Crash-lock flap (front) | 110.5 × 43.3 | L + T × – |
| Bottom side flap | 70 × 35 | W × – |
| Back lid | 110.5 × 34.8 | L + T × W/2 − T/2 |
| Front lid | 110.5 × 34.8 | L + T × W/2 − T/2 |
| Back decorative ears | 110.5 × 45 | L + T × – |
| Front decorative ears | 110.5 × 45 | L + T × – |
| Top dust flap | 70.5 × 38.7 | W + T × – |
| Top dust flap | 70 × 38.7 | W × – |
1 more panels are listed in the editor’s structure step.
