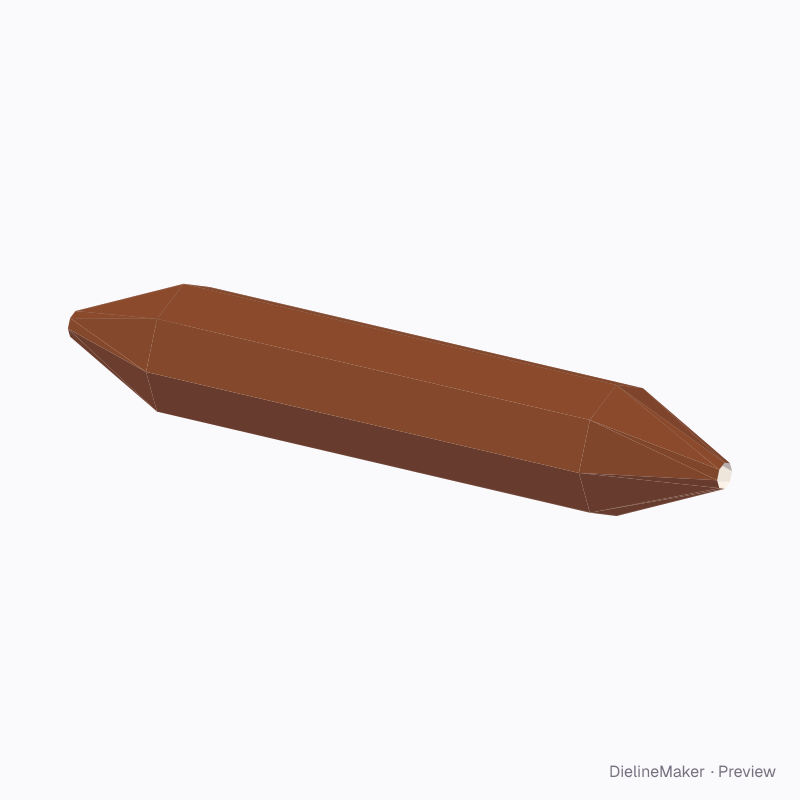

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-TWIST-END-CARTON-01Shapes
Cracker-style twist carton dieline
A faceted paperboard tube whose diagonally scored end bays twist closed into tied necks, like a wrapped sweet. A ready-sized preset of the twist-ended paperboard candy carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 50 mm
Outside180.8 × 50.8 mm
Flat blank163.1 × 279.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-TWIST-END-CARTON-01
- Inside size
- Body length 180 · Body diameter 50 mm
- Size range
- Body length 40–400 · Body diameter 25–200 mm
- Manufacturing
- 180.4 × 50.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.038 m² · about 10 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300SBS 350FBB 400Kraft 350SBS 18 pt
- Good for

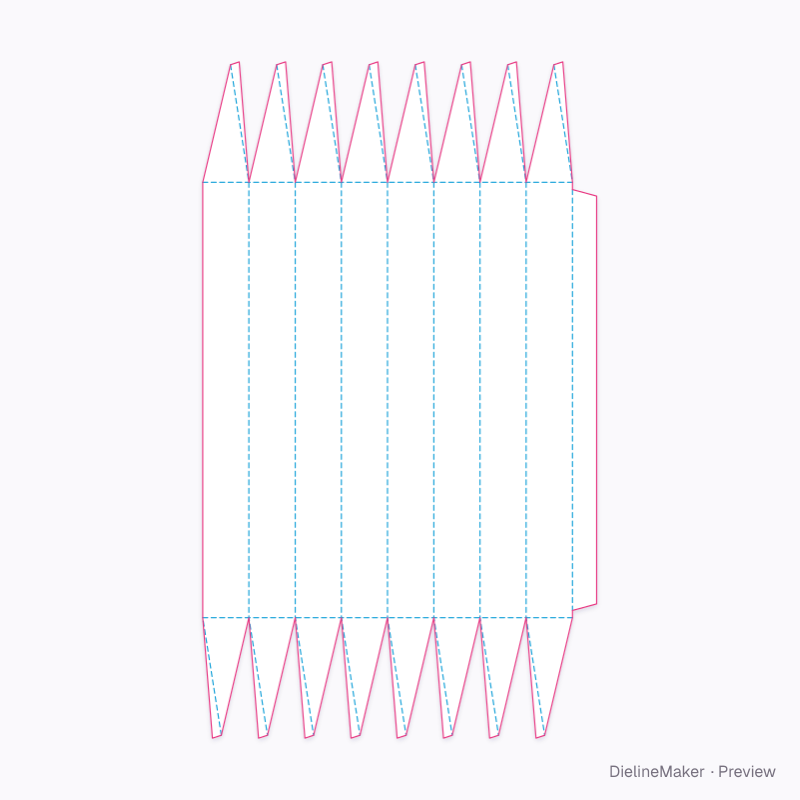

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-TWIST-END-CARTON-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front facet | 19.1 × 180 | – × L |
| Twist facet ×16 | 19.1 × 48.6 | – |
| Body facet ×7 | 19.1 × 180 | – × L |
| Twist facet ×16 | 3.8 × 49.2 | – |
| Glue flap | 10 × 174 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Sides3 options
- End bay lengthmm
- Twist°

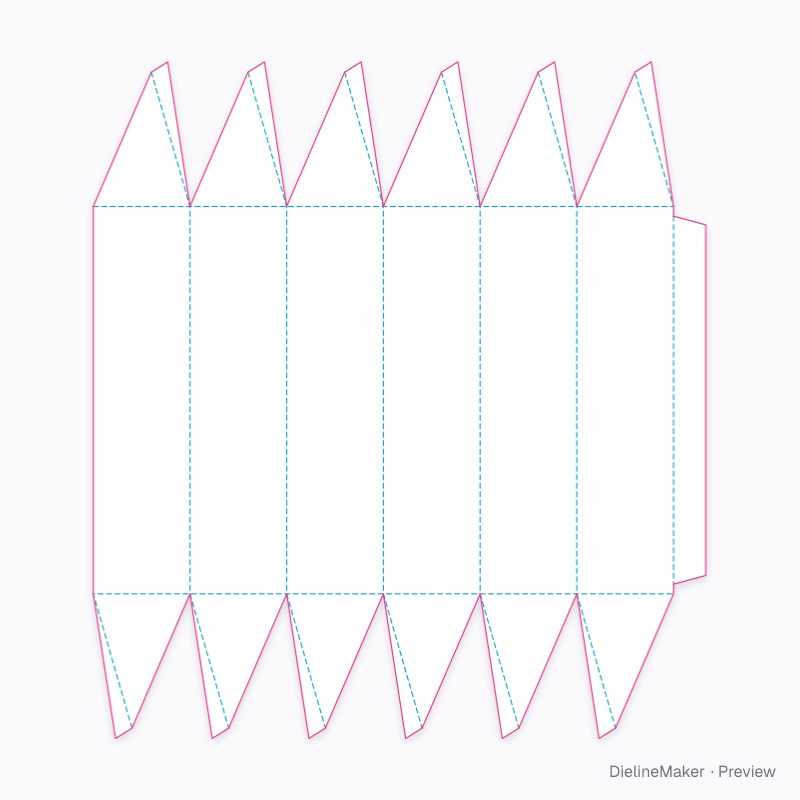

The twist-ended paperboard candy carton family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this cracker-style twist carton yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
