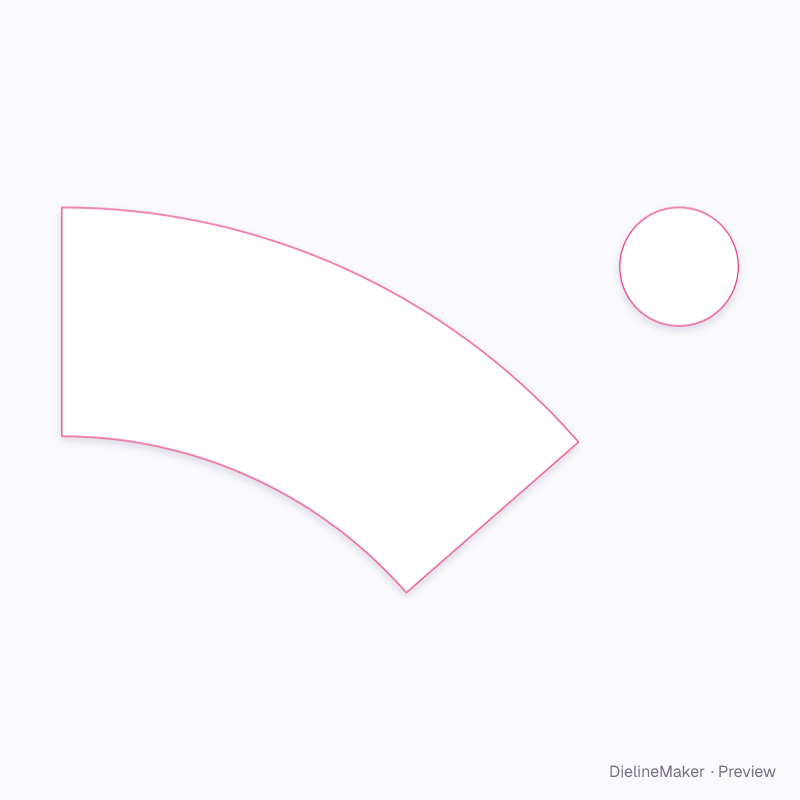

Conical tub with base disc 120×80×150 dieline
Rolled conical wall and a separate base disc, e.g. for popcorn or ice cream. A ready-sized preset of the two-part conical tub — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
InsideØ 120 × 150 mm
OutsideØ 120.8 × 150.4 mm
Flat blank341.8 × 254.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F70.62.00.00
- Inside size
- Rim diameter (B) 120 · Height 150 mm
- Size range
- Rim diameter (B) 40–300 · Height 40–300 mm
- Manufacturing
- Ø 120 × 150 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Conical wall, Base disc
- Board area
- 0.054 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300Paper 170Kraft 350SBS 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Cut
- Glue area
- Bleed 3 mm
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Base diameter (b)mm
- Seam overlapmm
The two-part conical tub family
The same structure with sizes, boards and options set for a use.
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this conical tub with base disc 120×80×150 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
