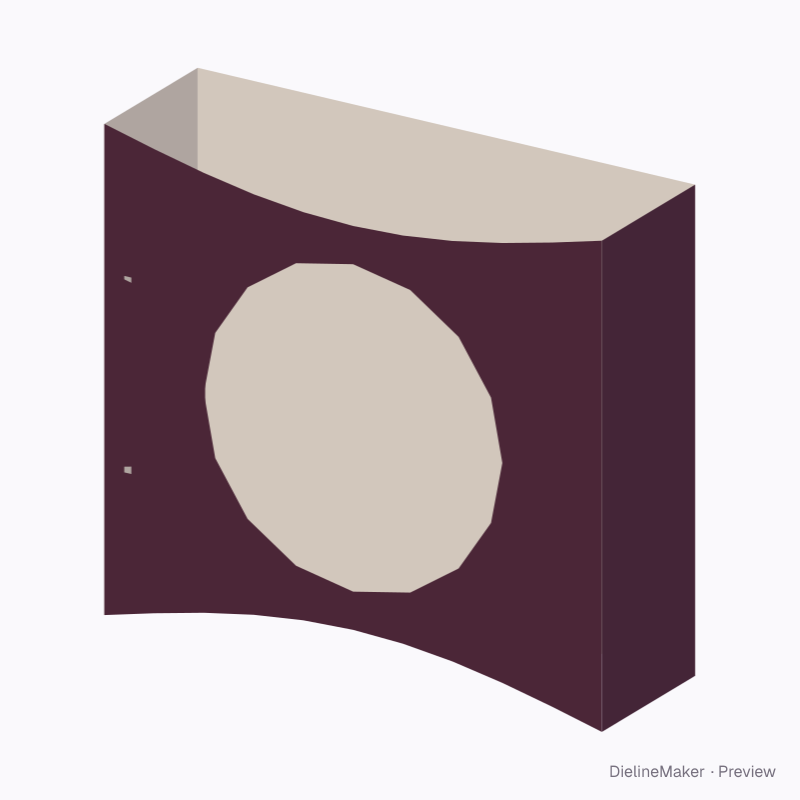

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-WINDOW-BAND-01Sleeves
Round-window product band dieline
A folded band with a circular display window, waisted front edges and a tongue-and-slit closure. A ready-sized preset of the round-window band sleeve — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside100 × 30 × 90 mm
Outside100.8 × 30.8 × 90.8 mm
Flat blank280 × 90 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-WINDOW-BAND-01
- Inside size
- Front width 100 · Depth 30 · Band height 90 mm
- Size range
- Front width 40–300 · Depth 5–150 · Band height 30–300 mm
- Manufacturing
- 100.4 × 30.4 × 90.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.023 m² · about 21 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 300 g · 0.42 mm caliper
- Board options
- SBS 300SBS 350Kraft 350Paper 170SBS 18 pt
- Good for

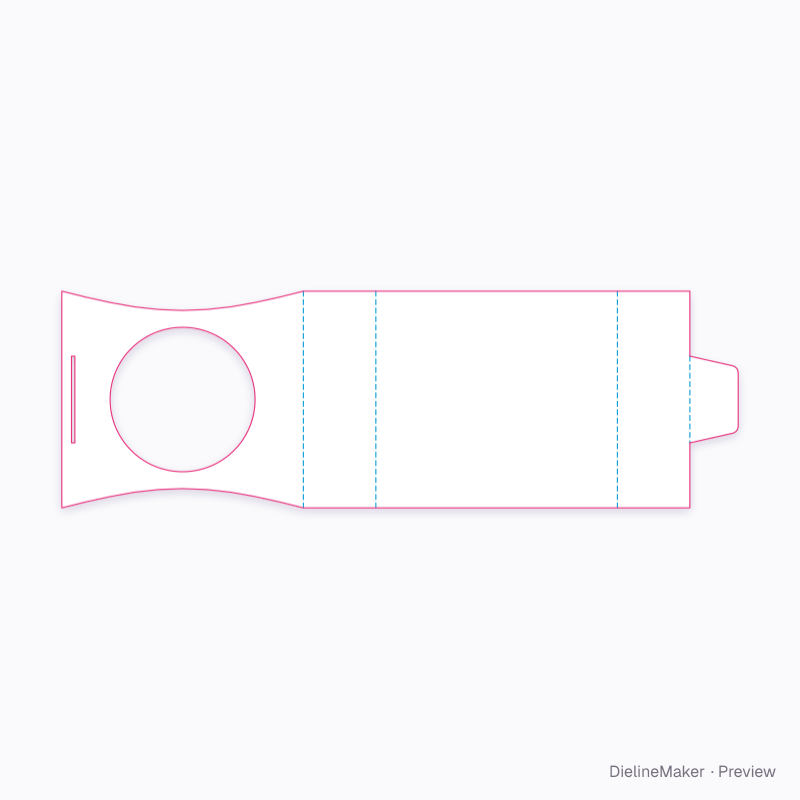

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-WINDOW-BAND-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.42 mm for SBS white board 300 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Window front | 100 × 90 | L × H |
| Side ×2 | 30 × 90 | W × H |
| Back | 100 × 90 | L × H |
| Closing tongue | 20 × 36 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Window diametermm
- Waist depthmm
