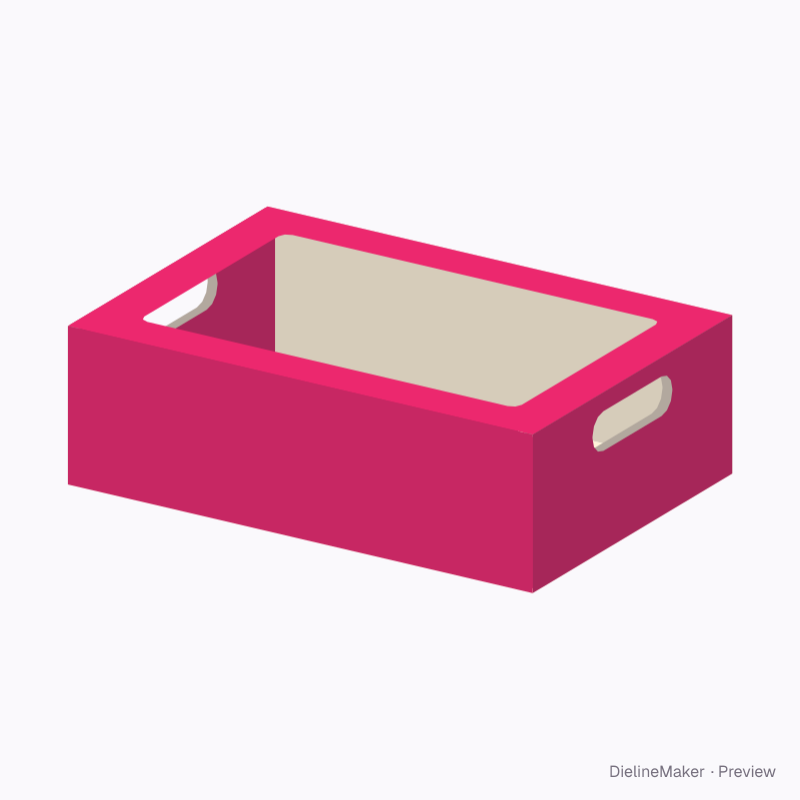

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-WINDOW-CARRY-MAILER-01Mailer
Windowed carry mailer dieline
A hinged-lid tray with a broad lid window and doubled end walls cut with aligned hand holes. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside320 × 220 × 100 mm
Outside323.2 × 223.2 × 103.2 mm
Flat blank725.6 × 665 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-WINDOW-CARRY-MAILER-01
- Inside size
- Length 320 · Width 220 · Height 100 mm
- Size range
- Length 150–600 · Width 80–400 · Height 50–250 mm
- Manufacturing
- 321.6 × 221.6 × 101.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.308 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KSBS 350Kraft 350SBS 18 pt
- Good for

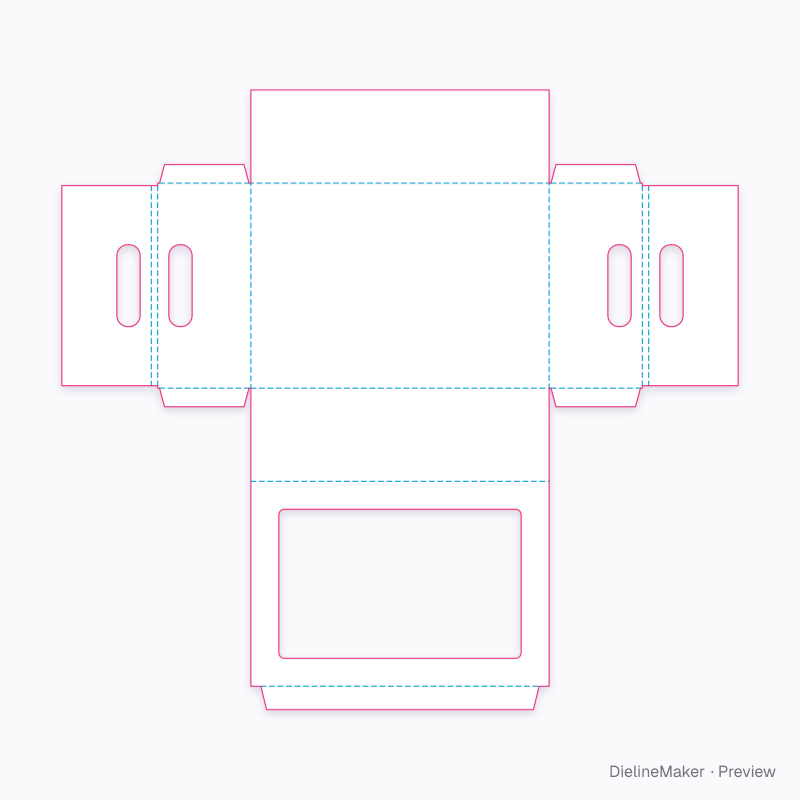

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-WINDOW-CARRY-MAILER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 320 × 220 | L × W |
| Long wall ×2 | 320 × 100 | L × H |
| End wall ×2 | 100 × 220 | H × W |
| Windowed lid | 320 × 220 | L × W |
| Glue flap ×4 | 96 × 20 | – |
| End wall roll ×2 | 6.8 × 214.8 | – |
| Front tongue | 298.4 × 25 | – |
| End wall inner ply ×2 | 96 × 214.8 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Lid window marginmm
- Hand hole widthmm
- Front tongue depthmm
Ready-sized windowed carry mailer presets
The same structure with sizes, boards and options set for a use.
- Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this windowed carry mailer yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
