Structural styles

Rigid box styles and set-up packaging

Compare telescope and shoulder boxes and distinguish style terminology from test standards.

DielineMaker · Updated 26 October 2026

Illustration of packaging concepts. See the templates below for editable geometry.

Rigid boxes are commonly supplied already assembled. Telescope lids and shoulder constructions describe how their components fit together; they do not form a universal numeric certification system.

TAPPI and AICC provide technical and industry resources. No universal NVC/TAPPI or National Paperbox Association rigid-box style numbering has been verified for this guide; an exact publication and edition are needed to establish such a mapping.

Choose the opening and component arrangement

The TAPPI/AICC Box Manufacturing Olympics defines its rigid-box competition category around packaging delivered in finished set-up form. Competition categories should not be mistaken for dimensional construction standards.

Reference	What it means	Design use

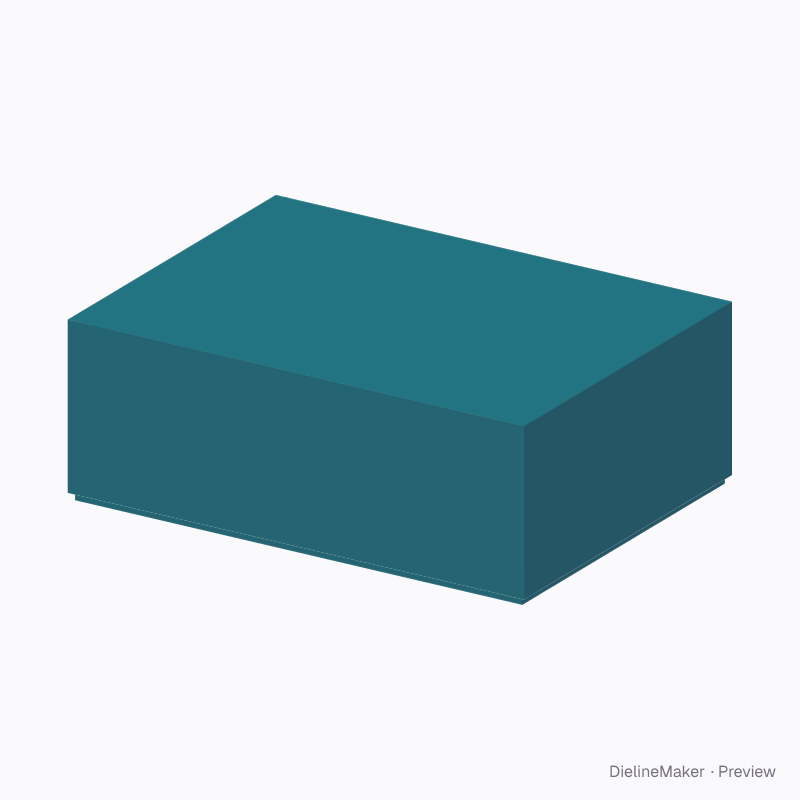

Telescope box	A separate lid fits over the base.	Specify lid depth and clearance.

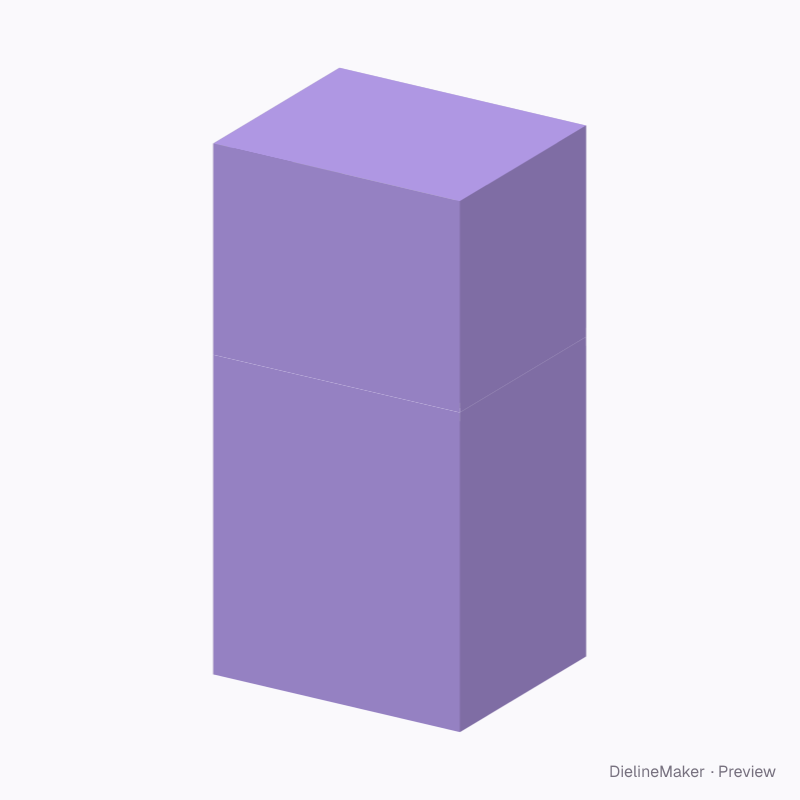

Shoulder box	An inner shoulder locates the lid and can remain visible.	Coordinate shoulder height and the reveal.
Board and covering	Structural board and decorative wrap are separate design inputs.	Agree material thickness, turn-ins and finishing tolerances.

Prototype the fit

Check the wrapped components together: covering material changes clearances, and the desired opening feel depends on more than nominal dimensions.

NVC Packaging Centre is based in Gouda, the Netherlands. It should not be expanded into a North American or National Paperbox Association identity. For a claimed association style code, obtain the source publication and drawing instead of inferring a code from a common box name.
