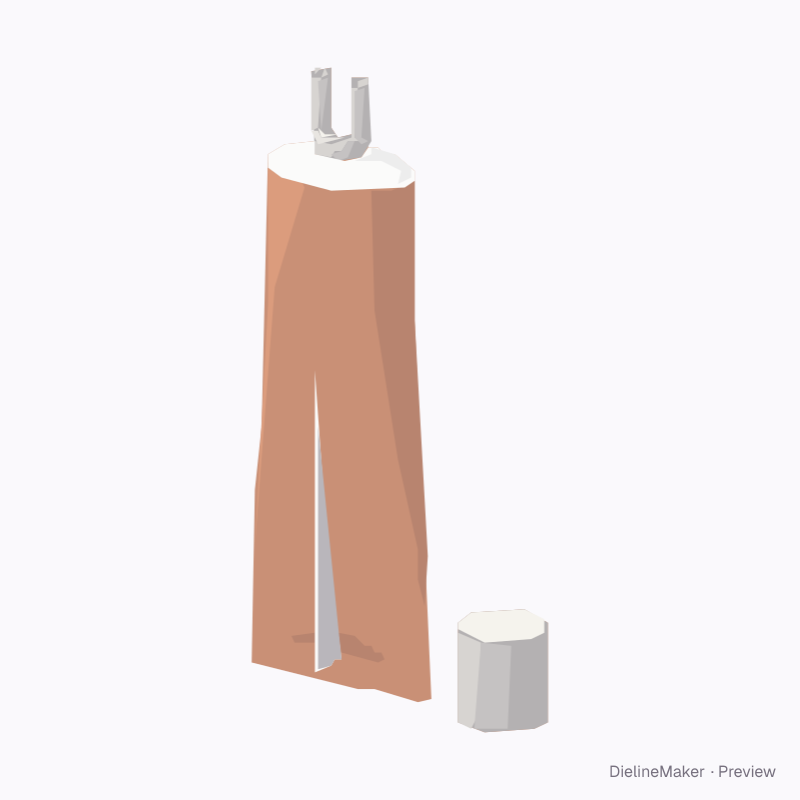

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Dual-chamber cosmetic tube decoration template
A round or oval soft tube with a flat heat-sealed tail and a nozzle, twist-off, slant, rollerball, brush, sponge or dual-chamber head. The export is the actual developed decoration area. Tube forming, seal allowances, applicator fit and nominal fill capacity require the supplier’s specification. A ready-sized preset of the cosmetic & precision applicator tube — adjust the object dimensions and decoration area to preview your artwork at size.
Object size40 × 170 mm
Artwork area107.7 × 140 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Tube body width 40 · Overall height 170 mm
- Size range
- Tube body width 13–60 · Overall height 60–240 mm
- Parts
- One artwork area
- Artwork area
- 0.015 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 7 options; the template and 3D preview follow each change.
- Body section2 options
- Oval body depthmm
- Applicator head8 options
- Head and cap heightmm
- Show fitted protective capon / off
- Head & cap colour5 options
- Clear protective capon / off
The cosmetic & precision applicator tube family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this dual-chamber cosmetic tube yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
