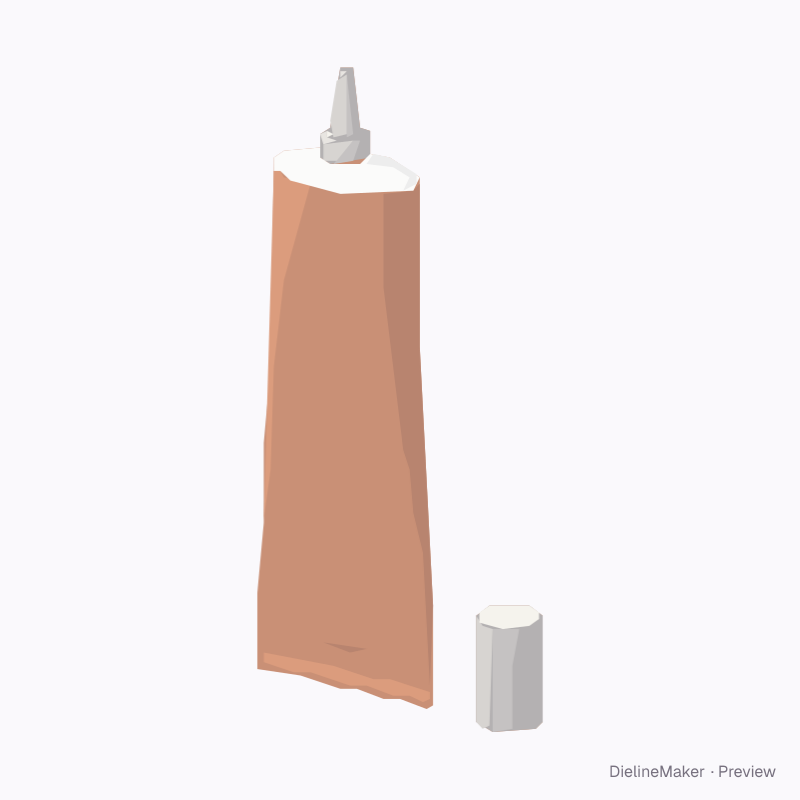

A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Oval nozzle tube decoration template
A round or oval soft tube with a flat heat-sealed tail and a nozzle, twist-off, slant, rollerball, brush, sponge or dual-chamber head. The export is the actual developed decoration area. Tube forming, seal allowances, applicator fit and nominal fill capacity require the supplier’s specification. A ready-sized preset of the cosmetic & precision applicator tube — adjust the object dimensions and decoration area to preview your artwork at size.
Object size35 × 150 mm
Artwork area90.7 × 121 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Tube body width 35 · Overall height 150 mm
- Size range
- Tube body width 13–60 · Overall height 60–240 mm
- Parts
- One artwork area
- Artwork area
- 0.011 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
