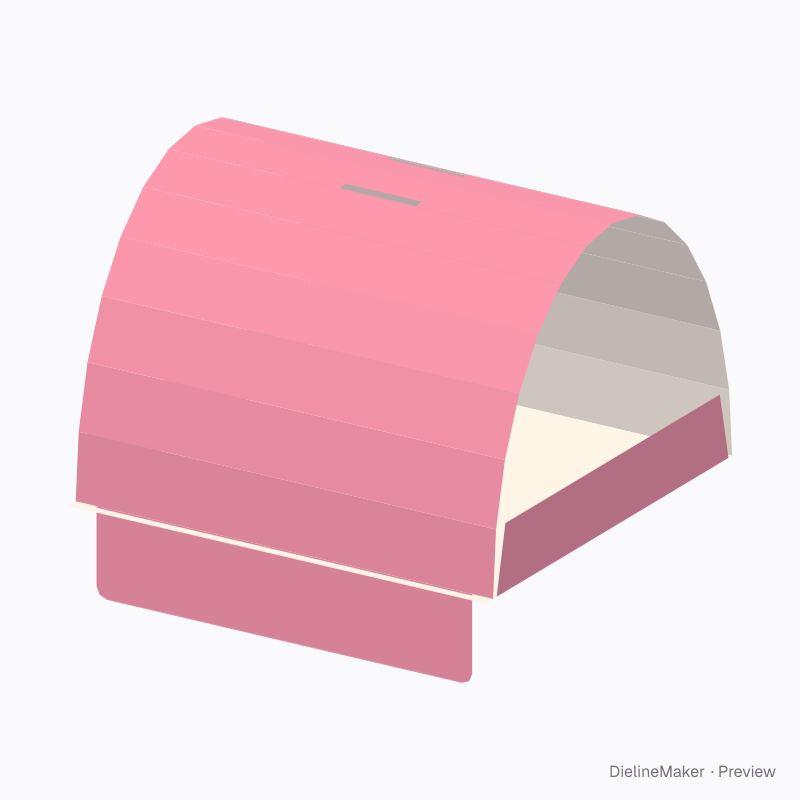

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-ARCH-COVER-BOX-01Food
Mini cake arch box 120 × 110 × 80 dieline
A tall arch over a single-portion cake, end lugs and a wide ribbon. A ready-sized preset of the arched-cover pastry box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 110 × 80 mm
Outside121.2 × 111.2 × 81.2 mm
Flat blank156 × 351 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ARCH-COVER-BOX-01
- Inside size
- Length 120 · Width 110 · Height 80 mm
- Size range
- Length 40–300 · Width 30–250 · Height 20–250 mm
- Manufacturing
- 120.6 × 110.6 × 80.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.046 m² · about 6 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 300SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How it folds
The mini cake arch box 120 × 110 × 80 erects in 3 steps, in the order the creases are scored to take. The editor plays the same sequence in 3D and lights each step’s creases on the dieline.
- 1Fold the flapsLeft end lug, Right end lug
- 2Close the lidArched cover
- 3Tuck the flaps inFront tuck
How the blank is sized
Score-to-score panel sizes of this DM-ARCH-COVER-BOX-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 120 × 113.6 | L × – |
| Arched cover ×2 | 120 × 17.9 | L × – |
| Left end lug | 18 × 106.6 | – |
| Right end lug | 18 × 106.6 | – |
| Arched cover ×2 | 120 × 17.4 | L × – |
| Arched cover ×2 | 120 × 16.5 | L × – |
| Arched cover ×2 | 120 × 15.4 | L × – |
| Arched cover ×2 | 120 × 14.1 | L × – |
| Arched cover ×2 | 120 × 13 | L × – |
| Arched cover ×2 | 120 × 12.4 | L × – |
| Front tuck | 108 × 24 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Ribbon slotson / off
- Ribbon widthmm
- Slot spacingmm
- End lugson / off
- Lug heightmm
The arched-cover pastry box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Before you choose this template
Size, materials, downloads and production checks.
Will the mini cake arch box 120 × 110 × 80 dieline fit my product?
A tall arch over a single-portion cake, end lugs and a wide ribbon. The default dimensions in inside-size mode are Length 120 mm, Width 110 mm, Height 80 mm. Measure your product and any inserts or wrapping, then set the template size. Check a physical sample with your contents before ordering production.
Can I change the size and design?
Yes. The supported ranges are Length 40–300 mm, Width 30–250 mm, Height 20–250 mm. At the default settings, the editor also exposes Ribbon slots, Ribbon width, Slot spacing, End lugs, Lug height. Add your own artwork and preview the result in 3D. The template geometry is rebuilt when its dimensions change.
Which materials can I choose?
The default is Folding boxboard 400 g (0.6 mm caliper). This structure allows SBS white board 350 g, Folding boxboard 400 g, Kraft board 350 g, SBS white board 300 g, SBS white board 18 pt. Select the stock before checking fit, and ask your converter to confirm the grade and caliper for the intended product.
Which files can I download?
The template page offers dimensioned PDF, Illustrator (.ai via script), layered SVG and DXF cutting and crease geometry. After adding artwork in the editor, you can export a print-ready PDF and review the bleed, safe areas and dieline layers with your printer.
Is this dieline free?
Browsing the previews is free, and you can customize the template after signing in with Google. Template and print-file downloads require a Pro or Business plan. The Free plan allows one eligible download every 8 hours; free mockups, renders and videos carry a watermark. See the pricing page for the current plans.
Can I send the download straight to production?
Use the file as a starting point for a printer or converter review. Confirm the finished dimensions, stock, crease and cutting setup, assembly, bleed and artwork, then approve a physical sample. The 3D preview does not test strength, transit performance or suitability for particular contents.
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this mini cake arch box 120 × 110 × 80 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
