FEFCO 0846Display
Display tower dieline

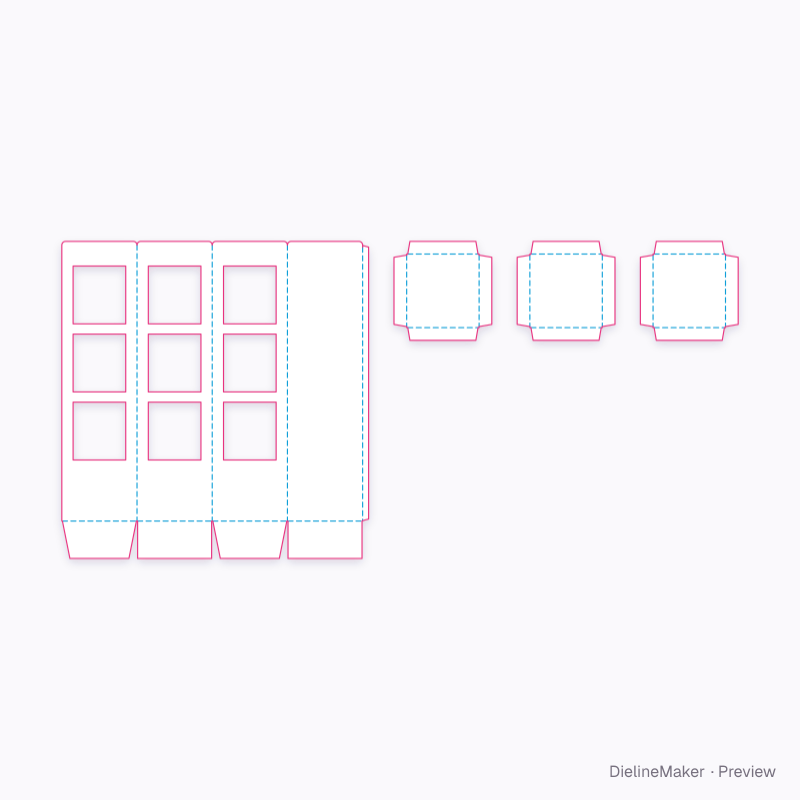

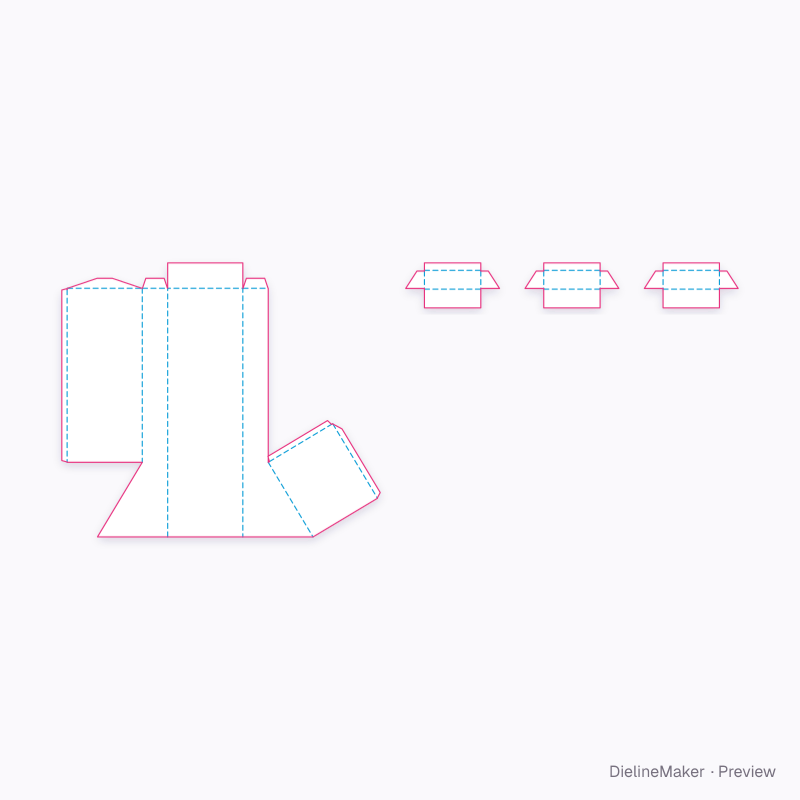

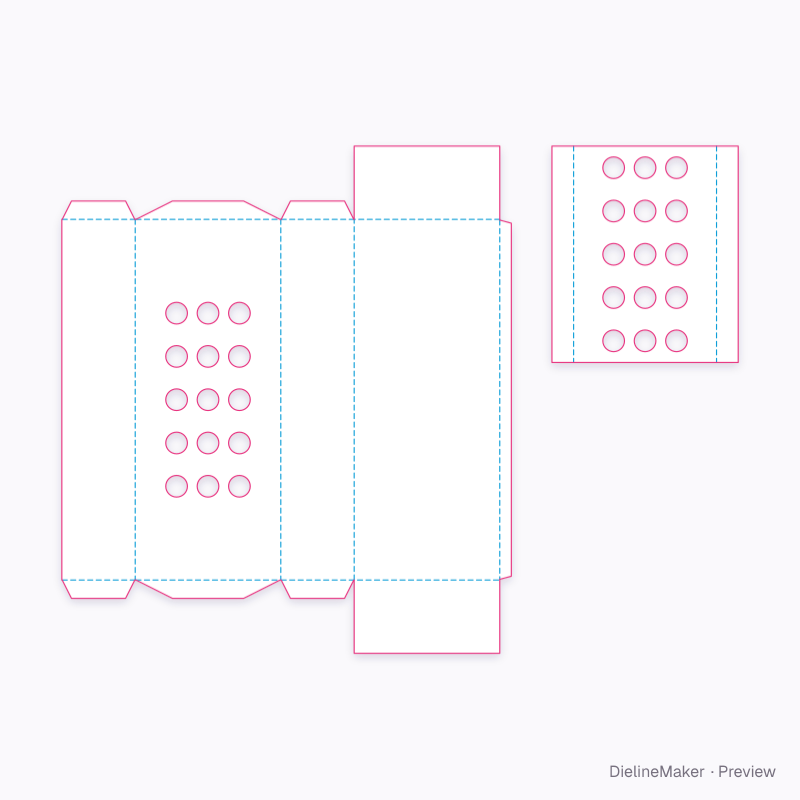

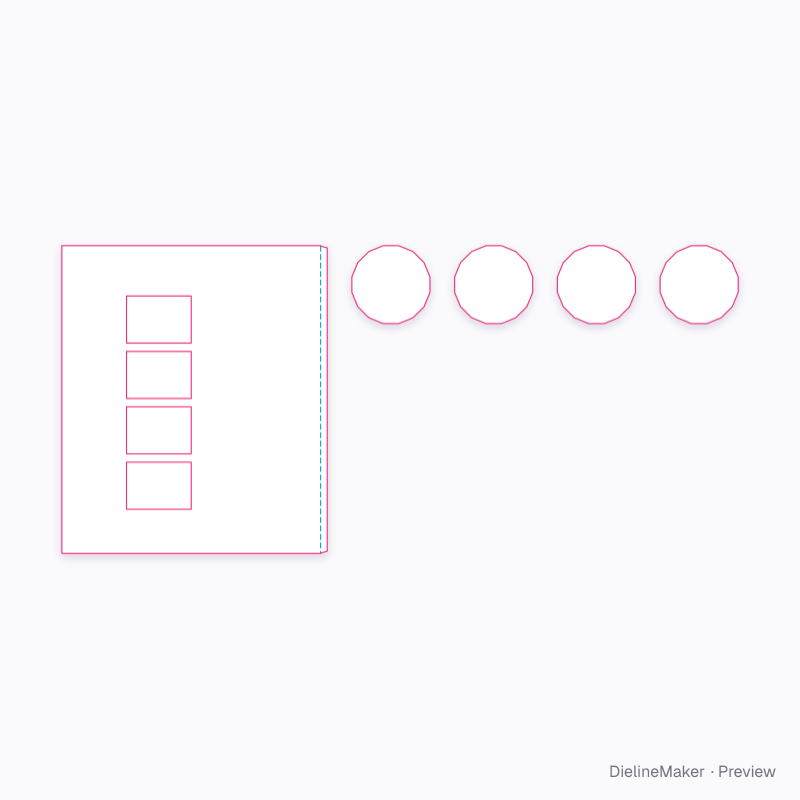

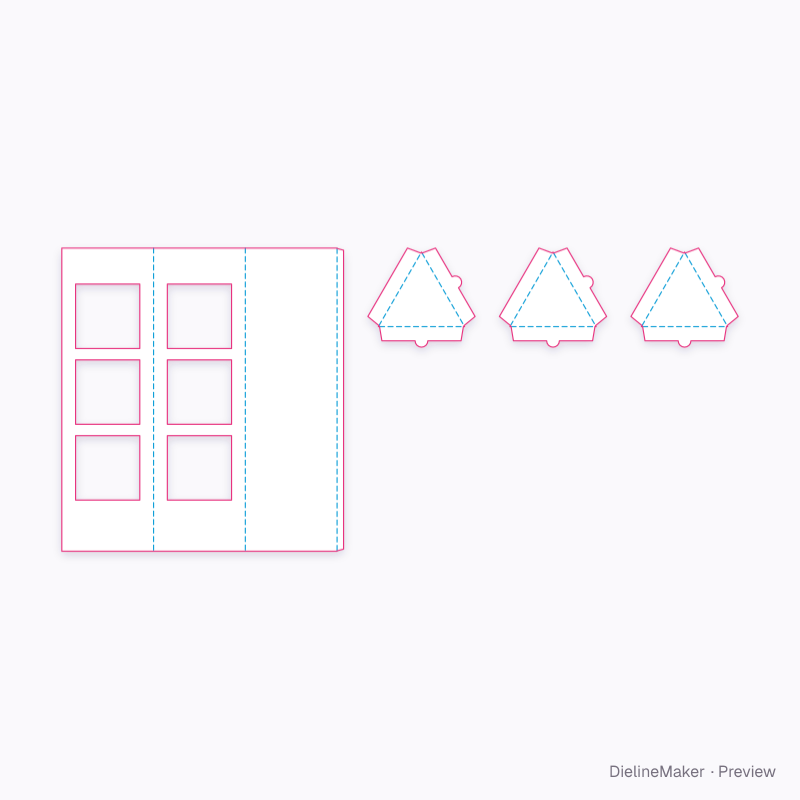

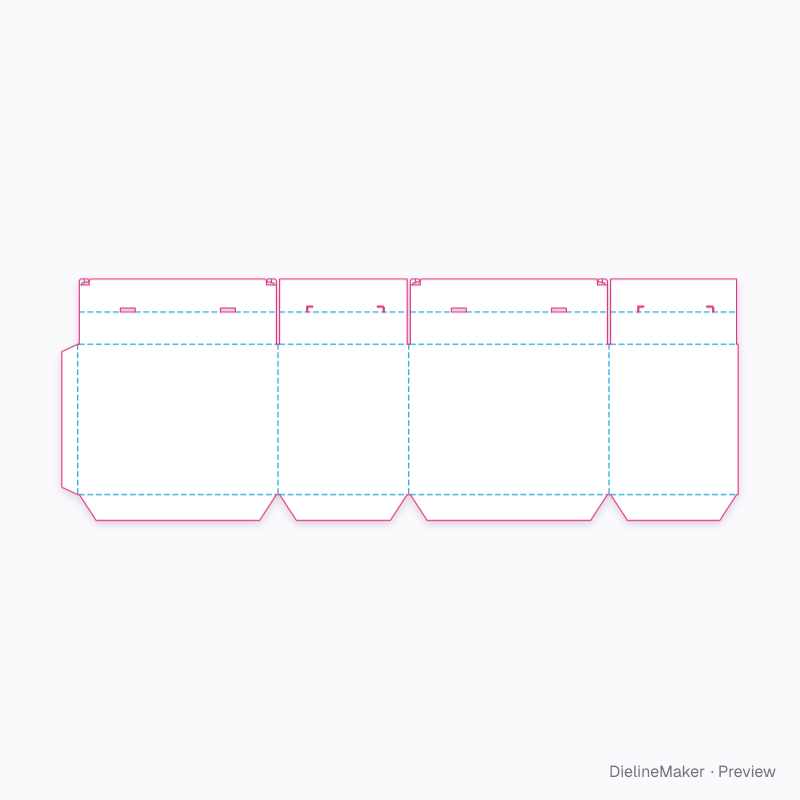

A floor-standing display tower: square, triangular or round with windows onto trays or shelves, a tall box with a grid of holder holes, or a slim column on a wedge foot with hanging trays. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 400 × 1500 mm
Outside406.4 × 406.4 × 1500 mm
Flat blank1644.8 × 1701.1 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0846
- Inside size
- Width 400 · Depth 400 · Height 1500 mm
- Size range
- Width 150–1000 · Depth 60–1000 · Height 300–2200 mm
- Manufacturing
- 403.2 × 403.2 × 1500 mm score to score · inside vs outside sizes
- Parts
- 4 parts — Square tower, Tray 1, Tray 2, Tray 3
- Board area
- 3.529 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute WE-flute K
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0846 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| FrontSquare tower | 403.2 × 1500 | – × H |
| Right sideSquare tower | 403.2 × 1479.8 | – |
| Left sideSquare tower | 403.2 × 1479.8 | – |
| Bottom flap ×2Square tower | 396.8 × 201.1 | – |
| BackSquare tower | 403.2 × 1479.8 | – |
| Bottom inner flap ×2Square tower | 396.8 × 200.6 | – |
| Glue flapSquare tower | 32 × 1466.3 | – |
| Tray 1Tray 1 | 388.4 × 394.8 | – |
| Lip ×2Tray 1 | 376.8 × 68 | – |
| Lip ×2Tray 1 | 68 × 383.2 | – |
| Tray 2Tray 2 | 388.4 × 394.8 | – |
| Lip ×2Tray 2 | 376.8 × 68 | – |
| Lip ×2Tray 2 | 68 × 383.2 | – |
| Tray 3Tray 3 | 388.4 × 394.8 | – |
| Lip ×2Tray 3 | 376.8 × 68 | – |
| Lip ×2Tray 3 | 68 × 383.2 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
