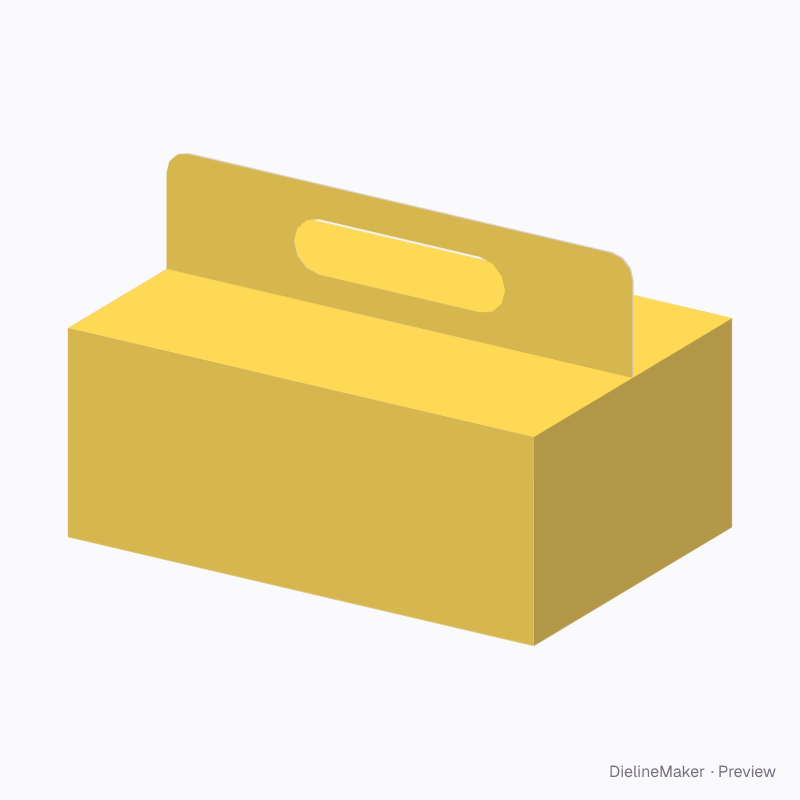

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-BRIEFCASE-CRASH-01Food
Pastry carry box dieline
Carries six pastries flat; crash bottom for a quick set-up. A ready-sized preset of the briefcase box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 150 × 90 mm
Outside221 × 151 × 91 mm
Flat blank753.5 × 308.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-BRIEFCASE-CRASH-01
- Inside size
- Length 220 · Width 150 · Height 90 mm
- Size range
- Length 60–400 · Width 40–250 · Height 40–400 mm
- Manufacturing
- 220.5 × 150.5 × 90.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.197 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400SBS 300GD2 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-BRIEFCASE-CRASH-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 220.5 × 90.5 | L + T × H + T |
| Left side | 150.5 × 90.5 | W + T × H + T |
| Back | 220.5 × 90.5 | L + T × H + T |
| Right side | 150 × 90.5 | W × H + T |
| Glue flap | 12 × 90.5 | – × H + T |
| Crash-lock flap (back) | 220.5 × 91.3 | L + T × – |
| Glued web ×2 | 106.4 × 52.8 | – |
| Bottom side flap | 150.5 × 75 | W + T × – |
| Crash-lock flap (front) | 220.5 × 91.3 | L + T × – |
| Bottom side flap | 150 × 75 | W × – |
| Back lid | 220.5 × 74.8 | L + T × W/2 − T/2 |
| Front lid | 220.5 × 74.8 | L + T × W/2 − T/2 |
| Back handle | 220.5 × 52 | L + T × – |
| Front handle | 220.5 × 52 | L + T × – |
| Top dust flap | 150.5 × 77.2 | W + T × – |
| Top dust flap | 150 × 77.2 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Bottom3 options
- Handle heightmm
- Hole widthmm
The briefcase box family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this pastry carry box yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
