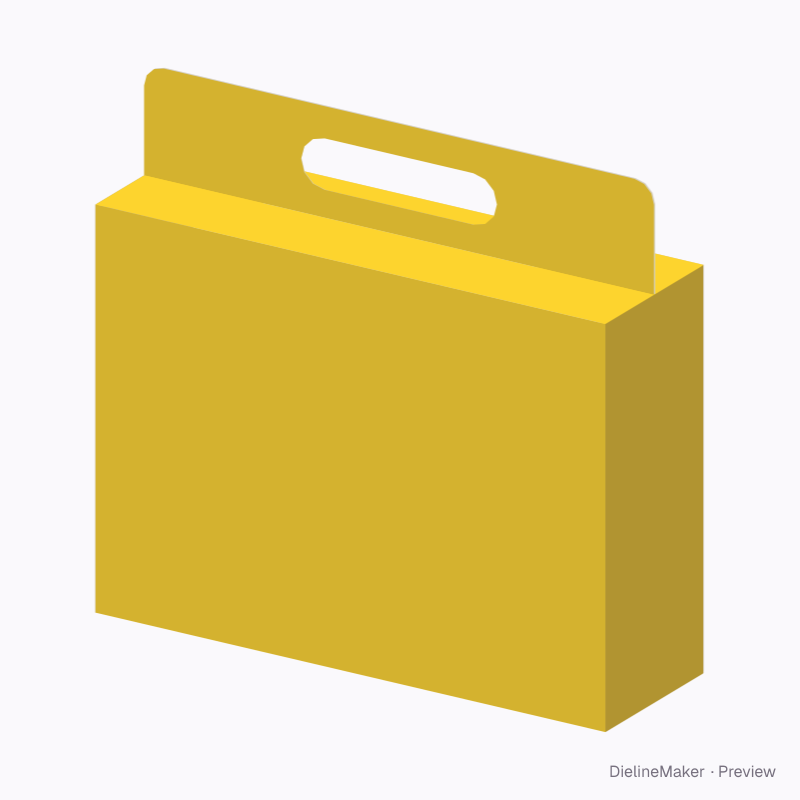

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-BRIEFCASE-SNAP-01Food
Toy carry case dieline
Slim upright case for a toy set or craft kit. A ready-sized preset of the briefcase box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 80 × 190 mm
Outside261 × 81 × 191 mm
Flat blank693.5 × 334.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-BRIEFCASE-SNAP-01
- Inside size
- Length 260 · Width 80 · Height 190 mm
- Size range
- Length 60–400 · Width 40–250 · Height 40–400 mm
- Manufacturing
- 260.5 × 80.5 × 190.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.214 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350Kraft 350FBB 400SBS 300GD2 350F-fluteE-flute WE-flute KSBS 18 pt
- Good for

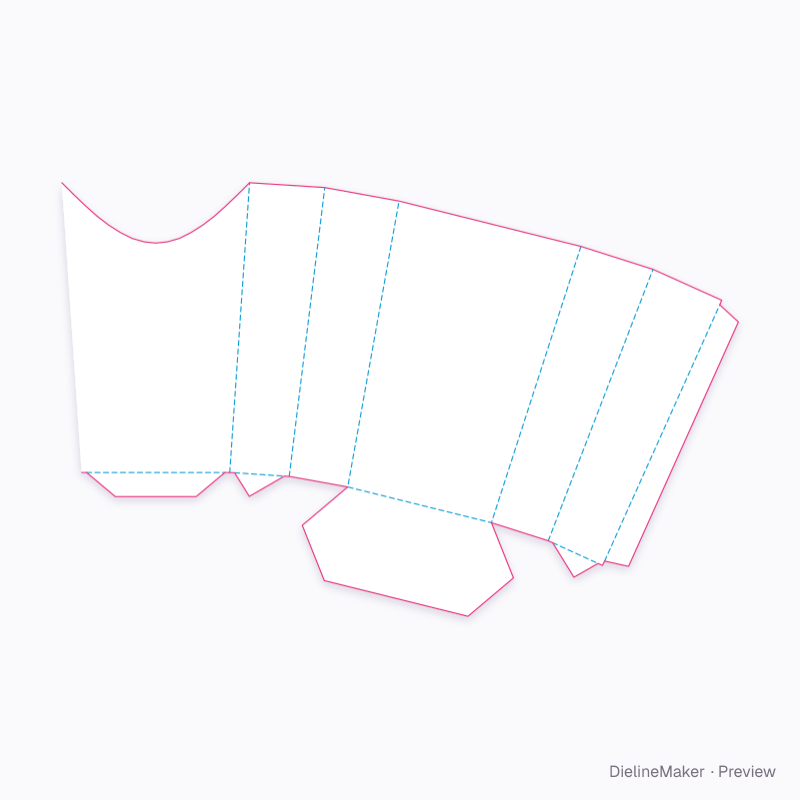

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-BRIEFCASE-SNAP-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 260.5 × 190.5 | L + T × H + T |
| Left side | 80.5 × 190.5 | W + T × H + T |
| Back | 260.5 × 190.5 | L + T × H + T |
| Right side | 80 × 190.5 | W × H + T |
| Glue flap | 12 × 190.5 | – × H + T |
| Snap end | 80.5 × 26.7 | W + T × – |
| Snap end | 80 × 26.7 | W × – |
| Snap bottom | 260.5 × 52 | L + T × – |
| Snap tuck | 260.5 × 51.5 | L + T × – |
| Back lid | 260.5 × 39.8 | L + T × W/2 − T/2 |
| Front lid | 260.5 × 39.8 | L + T × W/2 − T/2 |
| Back handle | 260.5 × 52 | L + T × – |
| Front handle | 260.5 × 52 | L + T × – |
| Top dust flap | 80.5 × 60.4 | W + T × – |
| Top dust flap | 80 × 60.4 | W × – |
