Preview image

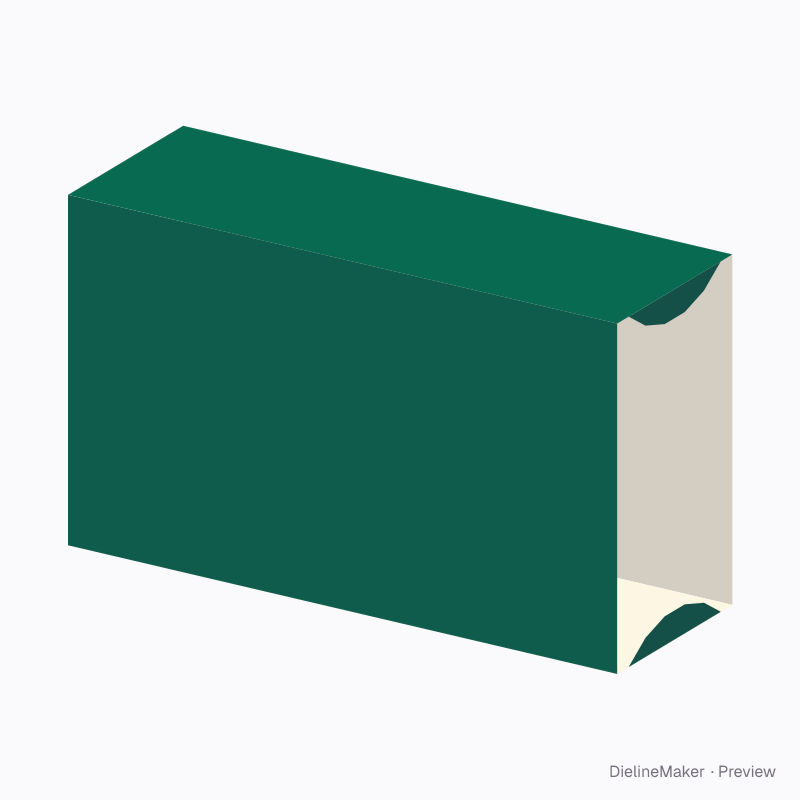

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA E11.20.00.00Carriers
3-can end-tab wrap 198×66×115 dieline
For 330 ml cans with recessed lids: curved end tabs fold in over the end cans. A ready-sized preset of the can wrap-around multipack — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside198 × 66 × 115 mm
Outside198 × 66.9 × 116.4 mm
Flat blank376.4 × 217.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA E11.20.00.00
- Inside size
- Length (A) 198 · Width (B) 66 · Height 115 mm
- Size range
- Length (A) 60–600 · Width (B) 50–300 · Height 40–300 mm
- Manufacturing
- 198 × 66.5 × 115.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.076 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Kraft 350SBS 350GD2 350FBB 400SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA E11.20.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Glue lap | 13 × 198 | – × L |
| Top | 66.5 × 198 | W + T × L |
| Side | 115.5 × 198 | H + T × L |
| Bottom | 66.5 × 198 | W + T × L |
| Side | 115 × 198 | H × L |
| End tab ×4 | 53.2 × 10 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Construction8 options
- Cans per rowcount
- Heel locks4 options
- End tab depthmm
- Finger holes4 options
The can wrap-around multipack family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this 3-can end-tab wrap 198×66×115 yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
