The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-PRESENTATION-LEAF-01Tuck end
Reinforced hanging reveal carton dieline
A windowed hanging tuck carton with a folded, glued double-ply cover, a printable inner leaf and a plain free edge. A ready-sized preset of the window carton with presentation leaf — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside120 × 40 × 180 mm
Outside121.2 × 41.2 × 181.2 mm
Flat blank572.1 × 290 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-PRESENTATION-LEAF-01
- Inside size
- Length 120 · Depth 40 · Height 180 mm
- Size range
- Length 50–300 · Depth 25–200 · Height 60–400 mm
- Manufacturing
- 120.6 × 40.6 × 180.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.122 m² · about 3 up on a 720 × 1020 mm sheet
- Default board
- Folding boxboard 400 g · 0.6 mm caliper
- Board options
- SBS 350FBB 400Kraft 350SBS 300SBS 18 pt
- Good for

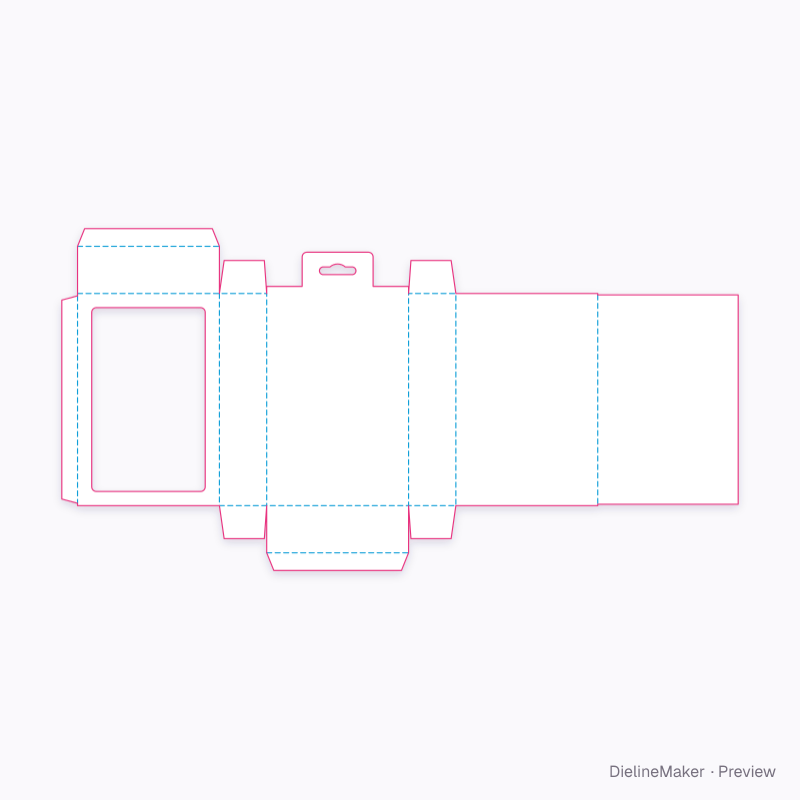

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How it folds
The reinforced hanging reveal carton erects in 6 steps, in the order the creases are scored to take. The editor plays the same sequence in 3D and lights each step’s creases on the dieline.
- 1Fold the walls upRight side, Back with hanging tab, Left side, Inner cover
- 2Fold the glue flap and glue the seamGlue flap
- 3Fold the dust flaps inDust flap, Tuck and 3 more
- 4Close the lidTop lid, Bottom lid
- 5Tuck the flaps inTuck
- 6Close the end flapsPresentation leaf
How the blank is sized
Score-to-score panel sizes of this DM-PRESENTATION-LEAF-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.6 mm for Folding boxboard 400 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front frame | 120 × 180 | L × H |
| Right side | 40 × 180 | W × H |
| Glue flap | 13.3 × 176 | – |
| Top lid | 120 × 40 | L × W |
| Back with hanging tab | 120 × 180 | L × H |
| Dust flap ×4 | 40 × 28 | W × – |
| Tuck ×2 | 120 × 15 | L × – |
| Left side | 40 × 180 | W × H |
| Bottom lid | 120 × 40 | L × W |
| Presentation leaf | 120 × 180 | L × H |
| Inner cover | 118.8 × 177.6 | L − 2T × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Window frame widthmm
- Cover construction2 options
- Tuck depthmm
- Hanging tabon / off
- Header heightmm
The window carton with presentation leaf family
The same structure with sizes, boards and options set for a use.
Preset
Preset
Preset
Before you choose this template
Size, materials, downloads and production checks.
Will the reinforced hanging reveal carton dieline fit my product?
A windowed hanging tuck carton with a folded, glued double-ply cover, a printable inner leaf and a plain free edge. The default dimensions in inside-size mode are Length 120 mm, Depth 40 mm, Height 180 mm. Measure your product and any inserts or wrapping, then set the template size. Check a physical sample with your contents before ordering production.
Can I change the size and design?
Yes. The supported ranges are Length 50–300 mm, Depth 25–200 mm, Height 60–400 mm. At the default settings, the editor also exposes Window frame width, Cover construction, Tuck depth, Hanging tab, Header height. Add your own artwork and preview the result in 3D. The template geometry is rebuilt when its dimensions change.
Which materials can I choose?
The default is Folding boxboard 400 g (0.6 mm caliper). This structure allows SBS white board 350 g, Folding boxboard 400 g, Kraft board 350 g, SBS white board 300 g, SBS white board 18 pt. Select the stock before checking fit, and ask your converter to confirm the grade and caliper for the intended product.
Which files can I download?
The template page offers dimensioned PDF, Illustrator (.ai via script), layered SVG and DXF cutting and crease geometry. After adding artwork in the editor, you can export a print-ready PDF and review the bleed, safe areas and dieline layers with your printer.
Is this dieline free?
Browsing the previews is free, and you can customize the template after signing in with Google. Template and print-file downloads require a Pro or Business plan. The Free plan allows one eligible download every 8 hours; free mockups, renders and videos carry a watermark. See the pricing page for the current plans.
Can I send the download straight to production?
Use the file as a starting point for a printer or converter review. Confirm the finished dimensions, stock, crease and cutting setup, assembly, bleed and artwork, then approve a physical sample. The 3D preview does not test strength, transit performance or suitability for particular contents.
