A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementCards & tags
Classic hub-print CD insert template

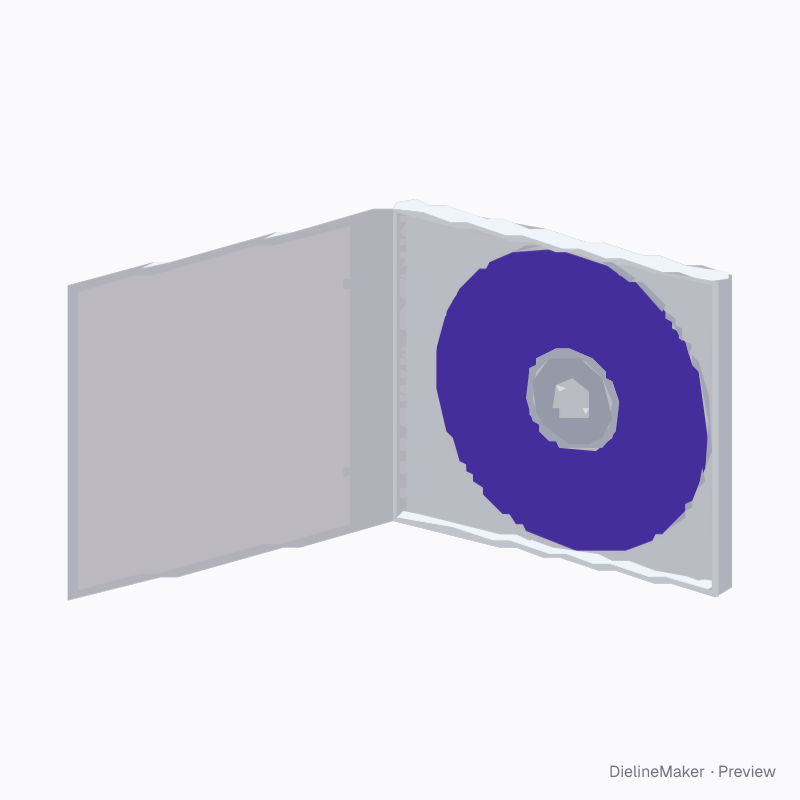

A hinged clear jewel case with front insert, scored rear tray card and printed optical disc. Exports are the paper inserts and supplier-dependent disc print area; the moulded case is a visual reference. Confirm insert fit with the case supplier. A ready-sized preset of the cd jewel case + disc — adjust the object dimensions and decoration area to preview your artwork at size.
Object size120 × 6.5 × 120 mm
Artwork area151 × 118 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Front insert width 120 · Tray spine width 6.5 · Front insert height 120 mm
- Size range
- Front insert width 118–122 · Tray spine width 5.5–7 · Front insert height 118–122 mm
- Parts
- 3 parts — Front booklet insert, Rear tray card + two spines, Disc face · printable annulus
- Artwork area
- 0.043 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Crease
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Case opening°
- Unprinted hub diametermm
- Case profile2 options
The cd jewel case + disc family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this classic hub-print cd yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
