A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementCards & tags
Slim CD case insert template

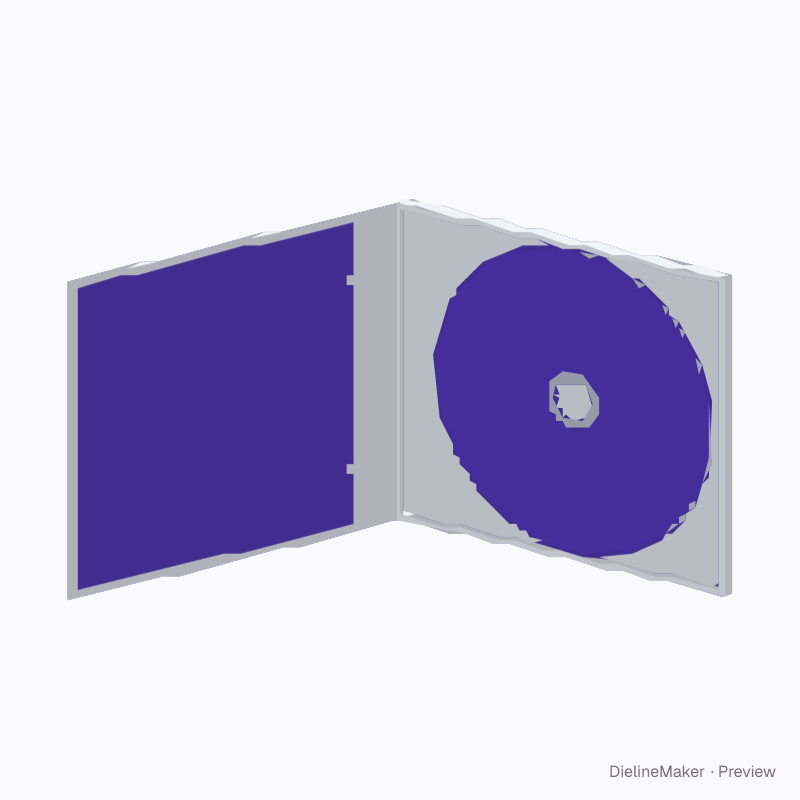

A hinged clear jewel case with front insert, scored rear tray card and printed optical disc. Exports are the paper inserts and supplier-dependent disc print area; the moulded case is a visual reference. Confirm insert fit with the case supplier. A ready-sized preset of the cd jewel case + disc — adjust the object dimensions and decoration area to preview your artwork at size.
Object size120 × 6.5 × 120 mm
Artwork area241 × 120 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Front insert width 120 · Tray spine width 6.5 · Front insert height 120 mm
- Size range
- Front insert width 118–122 · Tray spine width 5.5–7 · Front insert height 118–122 mm
- Parts
- 2 parts — Slim case insert (front + inside panel), Disc face · printable annulus
- Artwork area
- 0.040 m²
- Good for
The flat artwork area

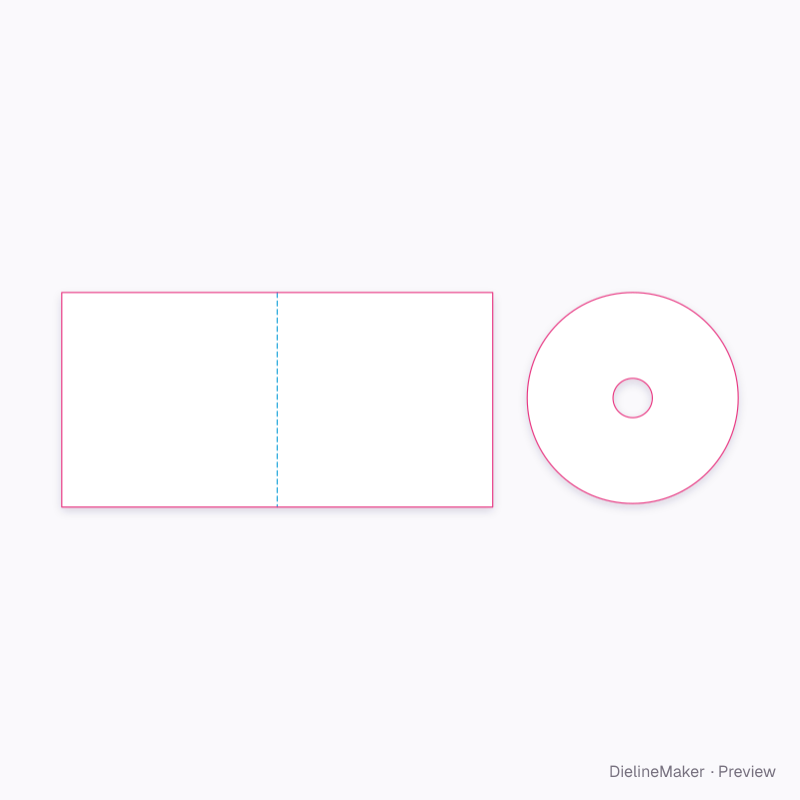

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Crease
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 3 options; the template and 3D preview follow each change.
- Case opening°
- Unprinted hub diametermm
- Case profile2 options
The cd jewel case + disc family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this slim cd case yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
