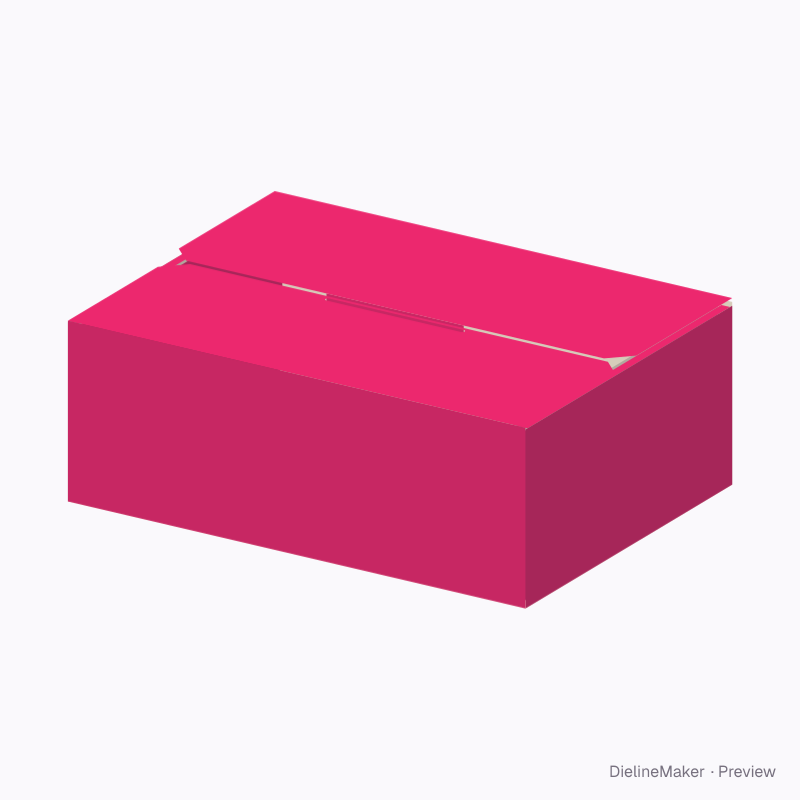

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CENTRE-LID-MAILER-01Mailer
Centre-lock mailer 400×300×150 dieline
B-flute for heavier orders and bundles. A ready-sized preset of the centre-lock double-lid mailer — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside400 × 300 × 150 mm
Outside422.4 × 306.4 × 156.4 mm
Flat blank1035.2 × 941.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CENTRE-LID-MAILER-01
- Inside size
- Length 400 · Width 300 · Height 150 mm
- Size range
- Length 150–600 · Width 80–450 · Height 20–150 mm
- Manufacturing
- 419.2 × 303.2 × 153.2 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.640 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-flute
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How it folds
The centre-lock mailer 400×300×150 erects in 7 steps, in the order the creases are scored to take. The editor plays the same sequence in 3D and lights each step’s creases on the dieline.
- 1Fold the walls upFront, Back
- 2Fold the corner ears inFront ear, Back ear and 2 more
- 3Fold the walls upLeft end, Right end
- 4Fold the stripLeft end roll, Left end (inside)
- 5Fold the stripRight end roll, Right end (inside)
- 6Close the lidFront lid, Back lid
- 7Tuck the flaps inCentre lock tongue
How the blank is sized
Score-to-score panel sizes of this DM-CENTRE-LID-MAILER-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 419.2 × 303.2 | – × W + T |
| Front | 419.2 × 151.6 | – × H + T/2 |
| Back | 419.2 × 153.2 | – × H + T |
| Front ear ×2 | 145.2 × 143.6 | – × H − 2T |
| Back ear ×2 | 145.2 × 143.6 | – × H − 2T |
| Left end | 150 × 303.2 | H × W + T |
| Left end roll | 8 × 296.8 | – × W − T |
| Left end (inside) | 150 × 296.8 | H × W − T |
| Right end | 150 × 303.2 | H × W + T |
| Right end roll | 8 × 296.8 | – × W − T |
| Right end (inside) | 150 × 296.8 | H × W − T |
| Front lid | 419.2 × 150 | – |
| Back lid | 419.2 × 158.9 | – |
| Centre lock tongue | 125.8 × 25 | – |
