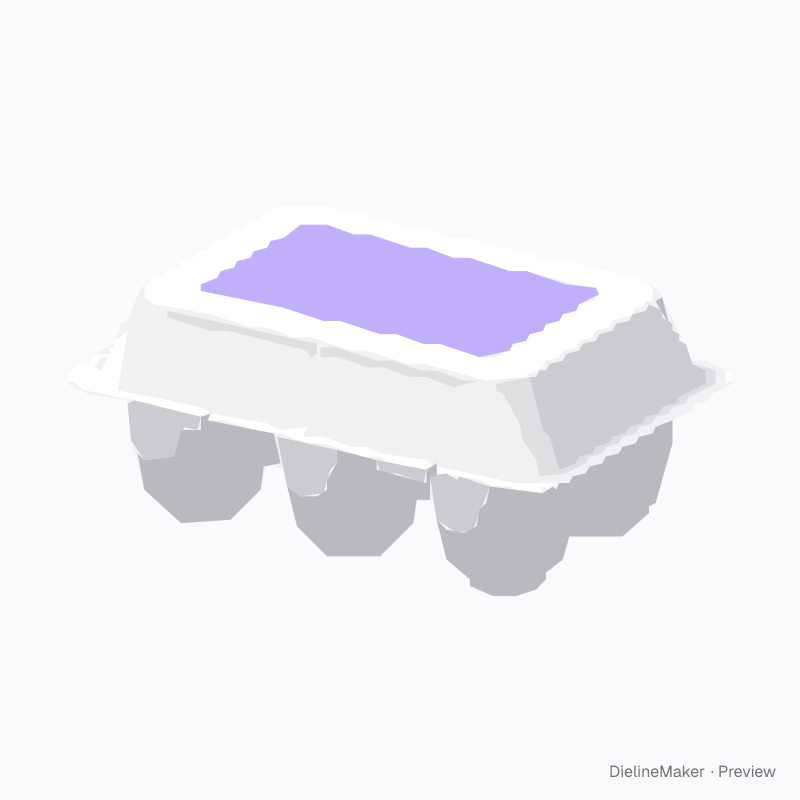

Preview image
A 3D product preview with editable artwork placement. The downloads contain artwork areas; manufacturing patterns and hardware drawings are not included. The artwork is a sample from a fictional brand — swap in your own in the editor.
Artwork placementLabels
Clear six-egg box label template
A clear tapered tray, domed hinged lid, snap latches and a separate lid label. Exports contain the printable label; the plastic shell is a mockup reference, not a thermoforming die. A ready-sized preset of the clear food clamshell — adjust the object dimensions and decoration area to preview your artwork at size.
Object size165 × 112 × 72 mm
Artwork area100.7 × 60.5 mm
Download the artwork templatePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, with the artwork area and bleed, without a watermark. See plans
- Reference
- —
- Object size
- Rim width 165 · Rim depth 112 · Overall height 72 mm
- Size range
- Rim width 80–320 · Rim depth 65–260 · Overall height 25–130 mm
- Parts
- One artwork area
- Artwork area
- 0.006 m²
- Good for
The flat artwork area
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed.
- Artwork boundary
- Bleed 3 mm
Adjustable in the editor
Alongside dimensions, the template offers 7 options; the template and 3D preview follow each change.
- Seal / rim widthmm
- Lid label width (0 = auto)mm
- Lid label depth (0 = auto)mm
- Tray cavities2 options
- Egg rowscount
- Eggs per rowcount
- Shell material4 options
The clear food clamshell family
The same model with sizes and artwork options ready to customize.
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this clear six-egg box yours
Set the artwork area, add your design and export the dimensioned artwork template, or stage the product in a 3D scene.
