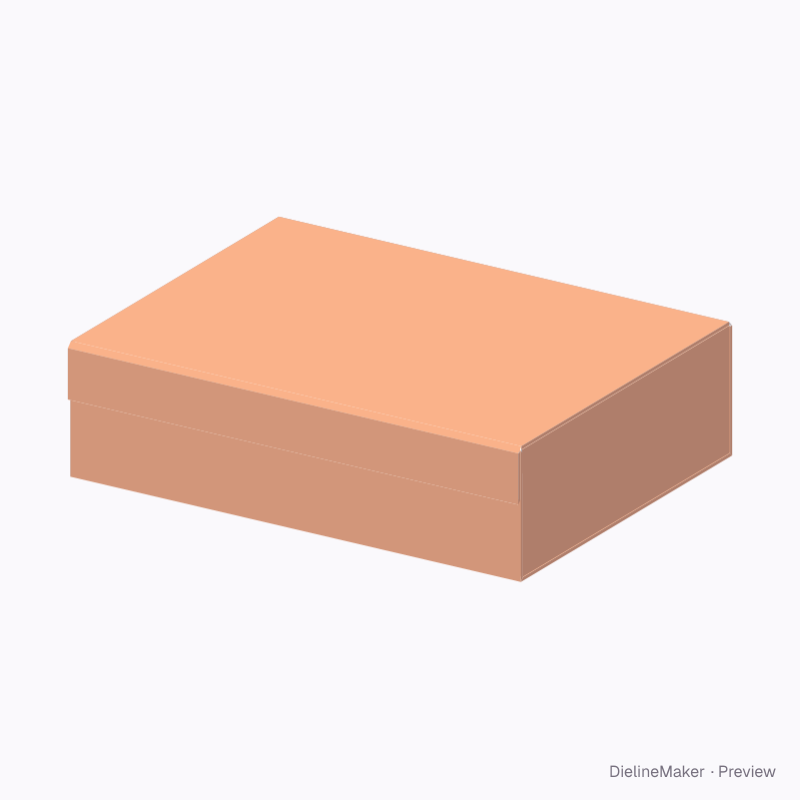

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureRigid
Corporate welcome presentation box — Collapsible magnetic box dieline
Editable 320 × 240 × 85 mm starting point using collapsible magnetic box. Adjust the dimensions to your product before prototyping. A ready-sized preset of the collapsible magnetic box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside320 × 240 × 85 mm
Outside325.3 × 247.3 × 89.6 mm
Flat blank360 × 994.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 320 · Depth 240 · Height 85 mm
- Size range
- Length 80–500 · Depth 60–400 · Height 30–200 mm
- Manufacturing
- 322.7 × 243.7 × 87.3 mm score to score · inside vs outside sizes
- Parts
- 8 parts — Cover wrap, Left side wrap, Right side wrap, Tray board, Lid board, Flap board, Left side board, Right side board
- Board area
- 0.696 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- Rigid greyboard 2 mm · 2 mm caliper
- Board options
- Rigid 2 mmRigid 1.5
- Good for

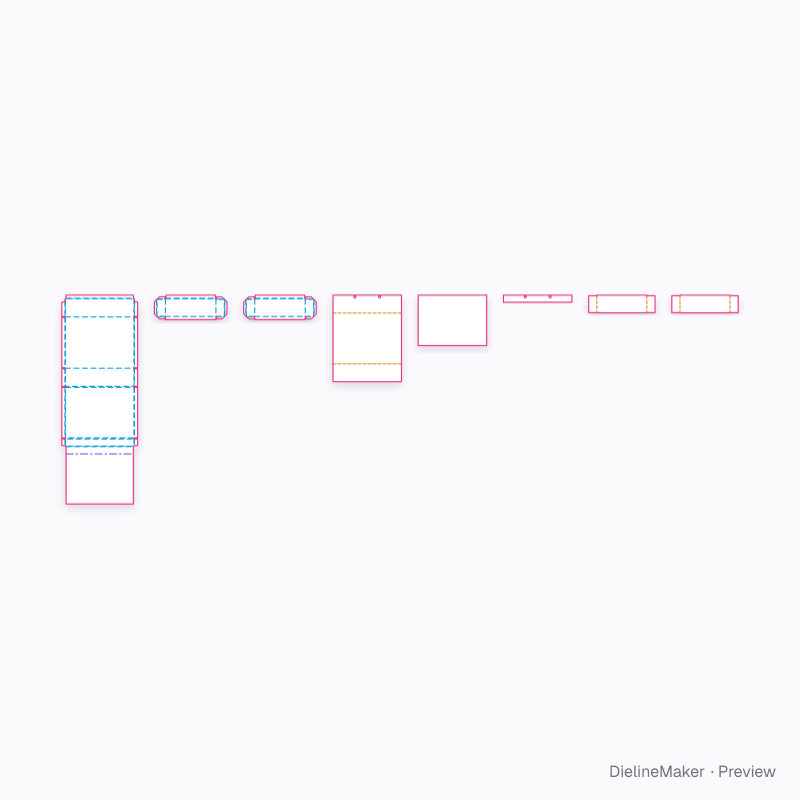

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Kiss cut
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (2 mm for Rigid greyboard 2 mm). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseCover wrap | 325.3 × 244.3 | L + 2Tb + 2p + 2s × W + 2Tb + 2p |
| Front wallCover wrap | 325.3 × 86.7 | L + 2Tb + 2p + 2s × H + Tb + p − c |
| Back wallCover wrap | 325.3 × 86.1 | L + 2Tb + 2p + 2s × H + 2Tb + 4p − j/√2 |
| Lid hingeCover wrap | 325.3 × 5 | – × j |
| LidCover wrap | 325.3 × 240.2 | L + 2Tb + 2p + 2s × W + 3Tb + 5p + 2c − √2·j |
| Flap hingeCover wrap | 325.3 × 5 | – × j |
| Front flapCover wrap | 325.3 × 34 | L + 2Tb + 2p + 2s × F |
| Front top rimCover wrap | 325.3 × 2.3 | – |
| Front top turn-inCover wrap | 320.7 × 15 | – |
| Front left rimCover wrap | 2.3 × 86.7 | – |
| Front left turn-inCover wrap | 15 × 68.7 | – |
| Front right rimCover wrap | 2.3 × 86.7 | – |
| Front right turn-inCover wrap | 15 × 68.7 | – |
| Base left rimCover wrap | 2.3 × 244.3 | – |
| Base left turn-inCover wrap | 15 × 239.7 | – |
| Base right rimCover wrap | 2.3 × 244.3 | – |
45 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 5 options; the template and 3D preview follow each change.
- Flap depthmm
- Magnetscount
- Magnet diametermm
- Inside lineron / off
- Corner tab widthmm
