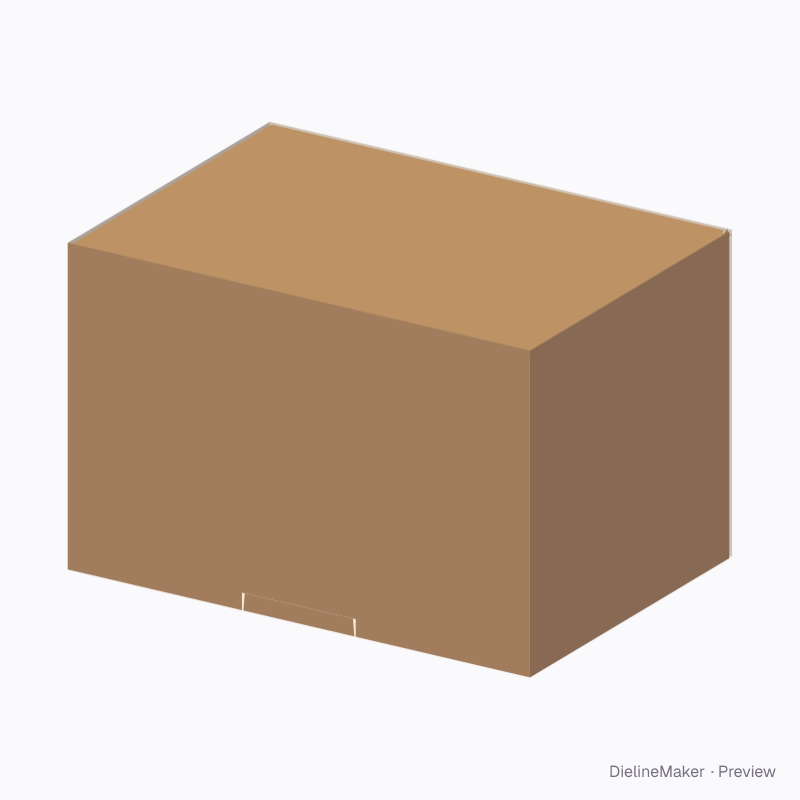

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0703Shipping
Book carton 330×230×200 dieline
A closed, single-piece floor under a dense load of books. A ready-sized preset of the covering auto-bottom box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside330 × 230 × 200 mm
Outside336.4 × 236.4 × 222.4 mm
Flat blank1161.6 × 690.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0703
- Inside size
- Length 330 · Width 230 · Height 200 mm
- Size range
- Length 120–800 · Width 80–600 · Height 60–800 mm
- Manufacturing
- 333.2 × 233.2 × 216 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.668 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute W
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0703 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 333.2 × 216 | L + T × H + 5T |
| Left side | 233.2 × 216 | W + T × H + 5T |
| Back | 333.2 × 216 | L + T × H + 5T |
| Right side | 230 × 216 | W × H + 5T |
| Glue flap | 32 × 216 | – |
| Covering flap | 333.2 × 233.2 | L + T × W + T |
| Glued web | 39 × 251.2 | – |
| Bottom side flap | 233.2 × 147.2 | W + T × – |
| Auto-bottom flap | 333.2 × 116.6 | L + T × – |
| Glued web | 19.5 × 125.6 | – |
| Bottom side flap | 230 × 147.2 | W × – |
| Lock tab | 80 × 11.6 | – |
| Top outer flap | 330 × 230 | L × W |
| Top inner flap ×2 | 226.8 × 230 | W − T × W |
| Top outer flap | 326.8 × 230 | L − T × W |
