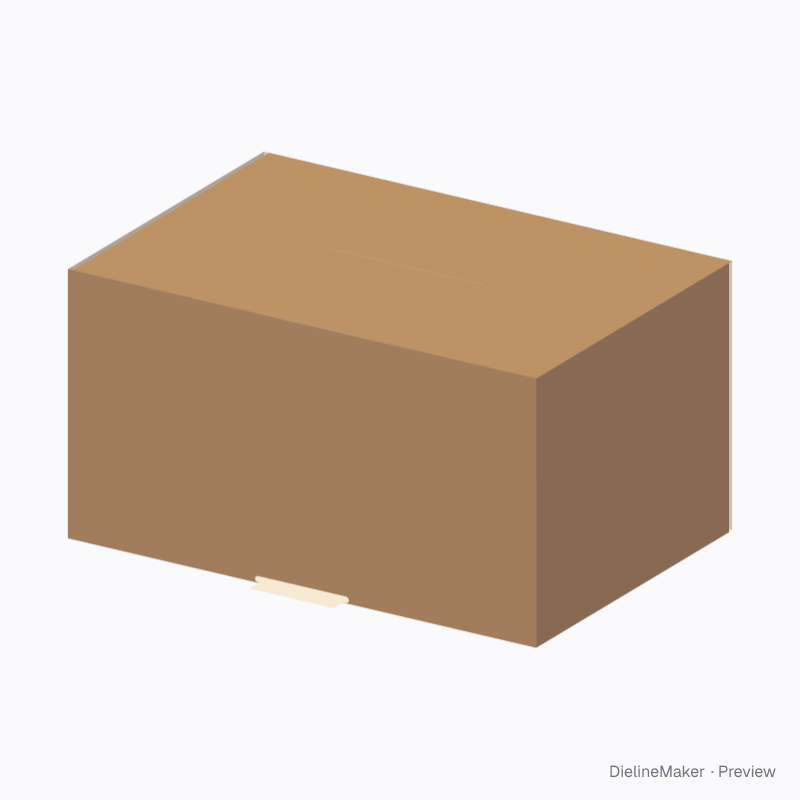

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0701Shipping
Covering auto-bottom case dieline
A pre-glued case with one full covering bottom and an integral locking tongue. Choose an open tray, regular or centre-special flaps, a tuck lid, a skirted cover or dual locking covers. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 150 mm
Outside306.4 × 206.4 × 166 mm
Flat blank1041.6 × 475.4 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0701
- Inside size
- Length 300 · Width 200 · Height 150 mm
- Size range
- Length 100–1000 · Width 60–800 · Height 50–900 mm
- Manufacturing
- 303.2 × 203.2 × 159.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.391 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for

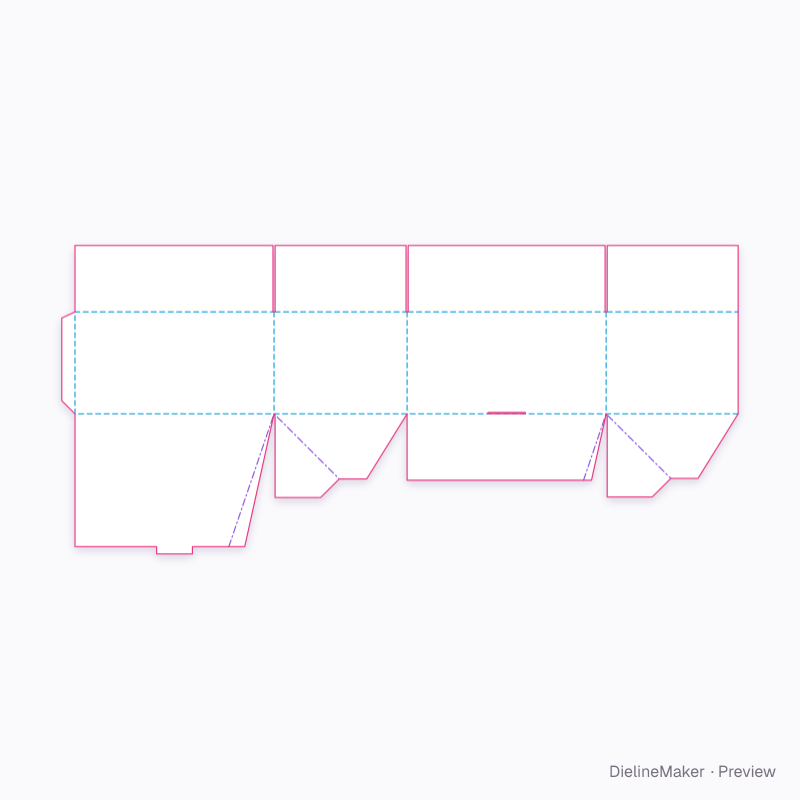

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0701 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 303.2 × 159.6 | L + T × H + 3T |
| Left side | 203.2 × 159.6 | W + T × H + 3T |
| Back | 303.2 × 159.6 | L + T × H + 3T |
| Right side | 200 × 159.6 | W × H + 3T |
| Glue flap | 32 × 159.6 | – |
| Top outer flap | 300 × 101.6 | L × – |
| Top inner flap ×2 | 196.8 × 101.6 | W − T × – |
| Top outer flap | 296.8 × 101.6 | L − T × – |
| Auto-bottom side flap | 203.2 × 99.6 | W + T × – |
| Pre-glued diagonal ear | 88.3 × 140.8 | – |
| Auto-bottom side flap | 200 × 98 | W × – |
| Pre-glued diagonal ear | 87.1 × 138.6 | – |
| Scored major glue web | 23.1 × 214.6 | – |
| Scored major glue web | 11.5 × 107.3 | – |
| Short auto-bottom flap | 303.2 × 101.6 | L + T × – |
| Covering bottom with integral tongue | 303.2 × 203.2 | L + T × W + T |
1 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Construction6 options
- Bottom tongue widthmm
- Bottom tongue depthmm

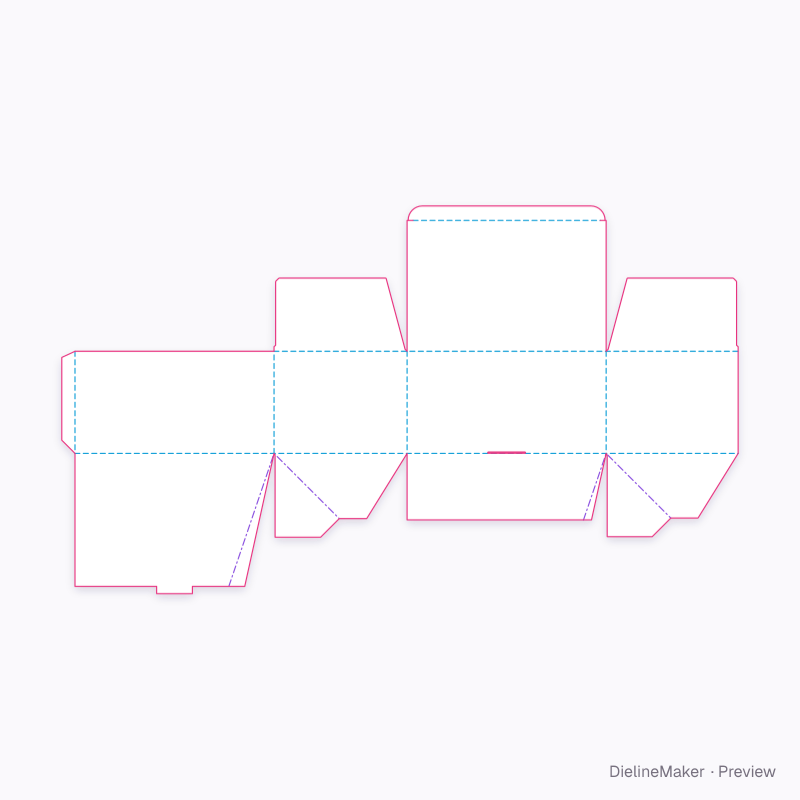

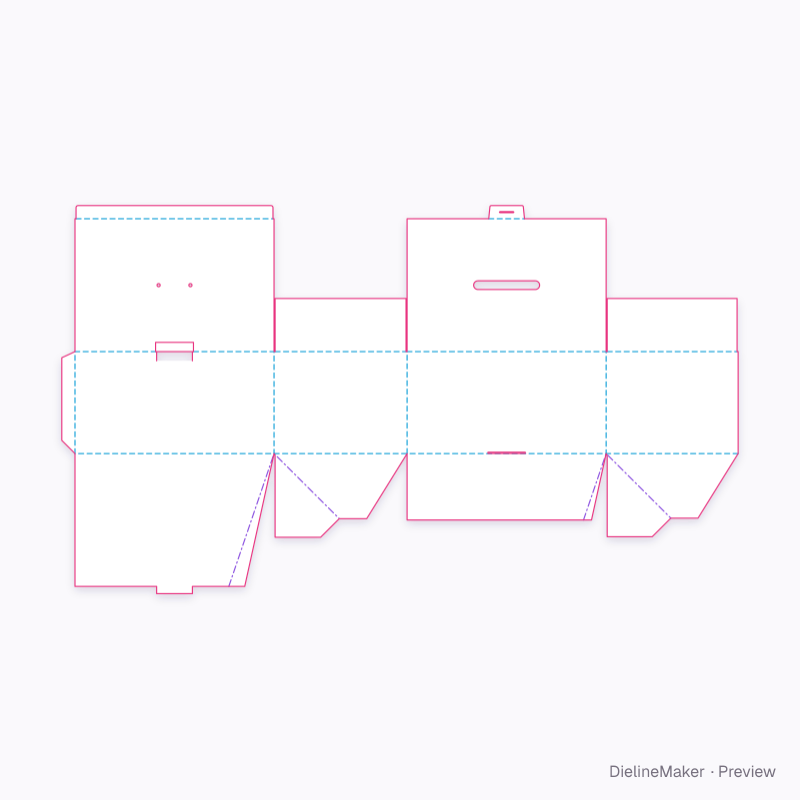

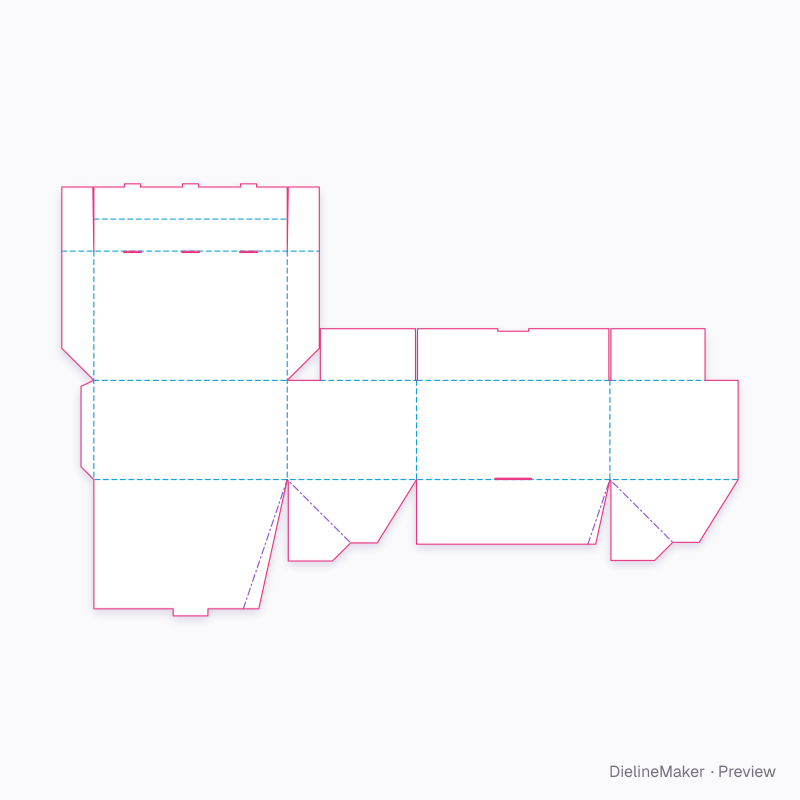

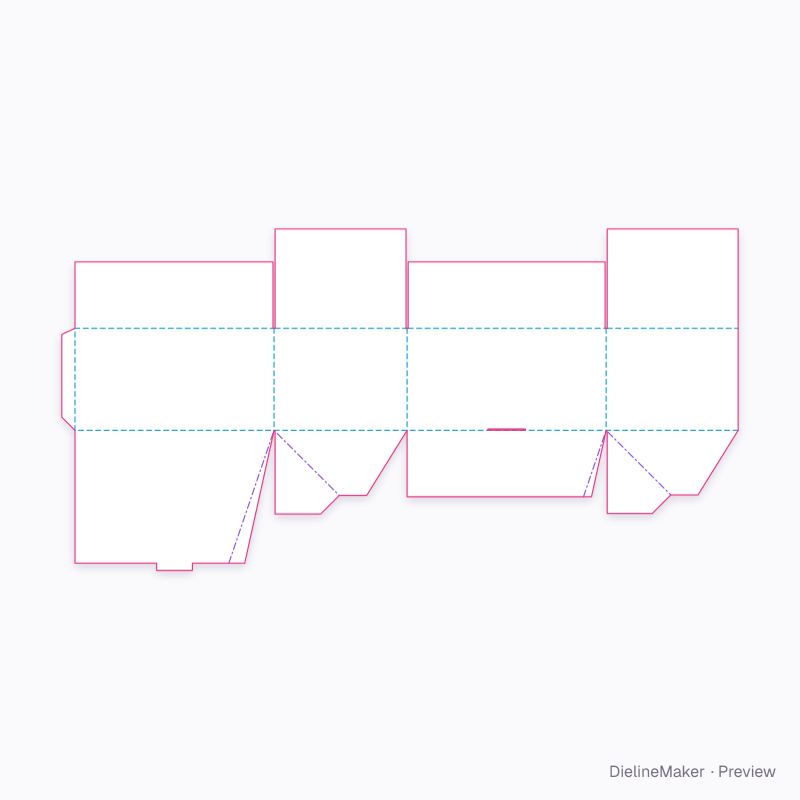

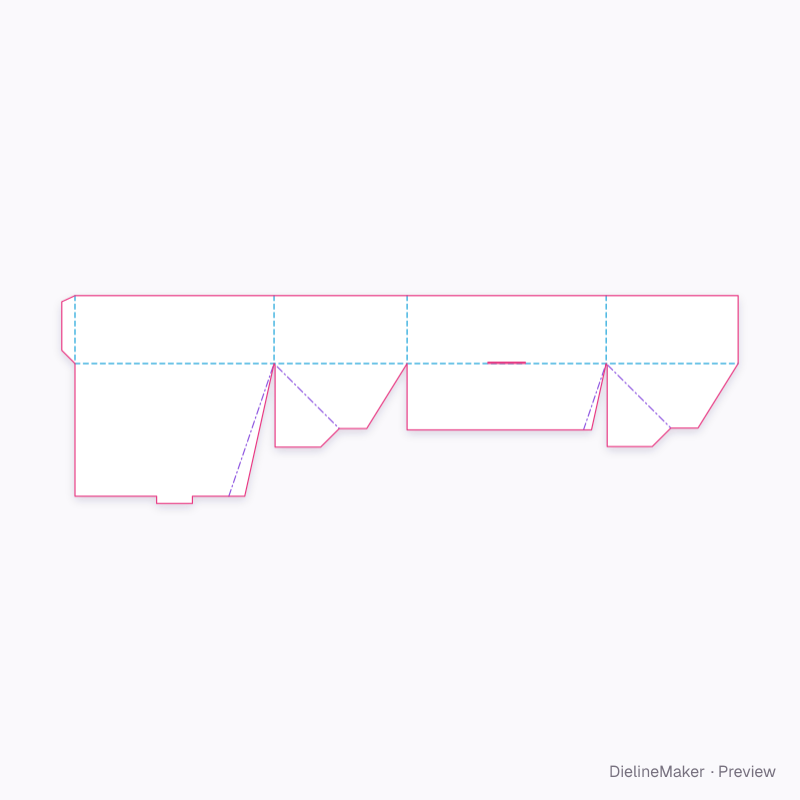

Ready-sized covering auto-bottom case presets
