FEFCO 0706Shipping
Slotted auto-bottom case dieline
A pre-glued half-width floor with integral tabs that lock into slots in the end walls. Choose open, overlapping, regular, centre-special or tuck-top closure. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 200 × 150 mm
Outside306.4 × 206.4 × 159.6 mm
Flat blank1041.6 × 258 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0706
- Inside size
- Length 300 · Width 200 · Height 150 mm
- Size range
- Length 100–1000 · Width 60–800 · Height 50–900 mm
- Manufacturing
- 303.2 × 203.2 × 156.4 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.253 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- B-fluteEB doubleE-flute KE-flute WF-flute
- Good for

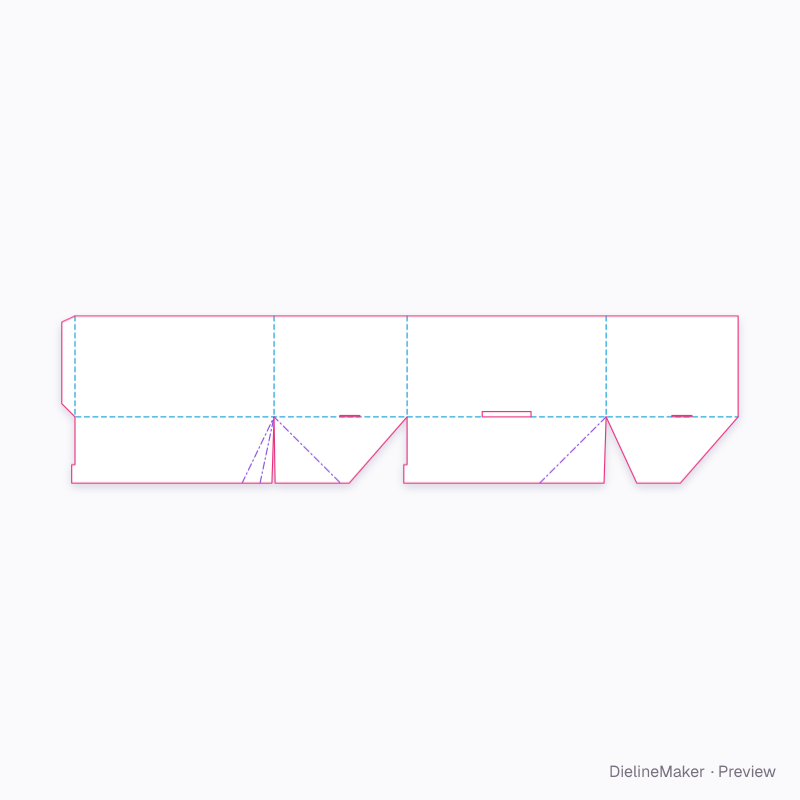

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0706 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 303.2 × 156.4 | L + T × H + 2T |
| Left side | 203.2 × 156.4 | W + T × H + 2T |
| Back | 303.2 × 156.4 | L + T × H + 2T |
| Right side | 200 × 156.4 | W × H + 2T |
| Glue flap | 32 × 156.4 | – × H + 2T |
| Slotted auto-bottom side flap | 203.2 × 101.6 | W + T × – |
| Diagonal side glue web | 69.6 × 143.7 | – |
| Slotted auto-bottom side flap | 200 × 101.6 | W × – |
| Half-width locking floor ×2 | 303.2 × 101.6 | L + T × – |
| Scored major glue web | 24.7 × 112.7 | – |
| Second major diagonal | 14.6 × 103.8 | – |
| Side-wall locking tongue ×2 | 5 × 28 | – |
| Scored major glue web | 143.7 × 67.3 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Construction5 options
- Bottom tongue widthmm
- Bottom tongue projectionmm
