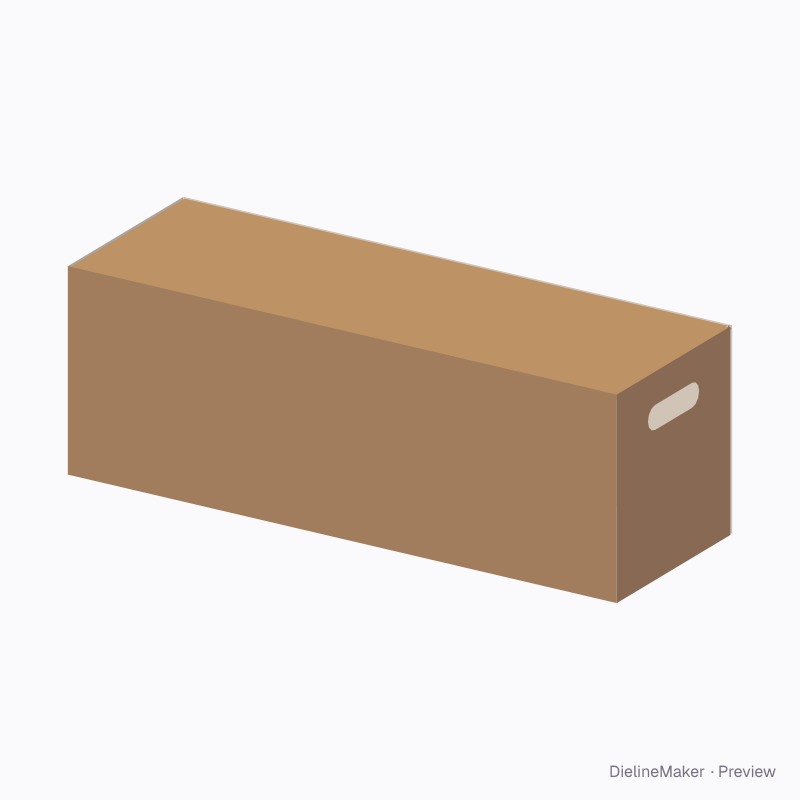

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0710Shipping
Long-goods crash-lock carton 600×200×200 dieline
Long, narrow carton that erects fast; full top flaps keep the lid from bowing. A ready-sized preset of the crash-lock full overlap box — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside600 × 200 × 200 mm
Outside606.4 × 206.4 × 216 mm
Flat blank1641.6 × 532.2 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0710
- Inside size
- Length 600 · Width 200 · Height 200 mm
- Size range
- Length 100–800 · Width 60–600 · Height 50–800 mm
- Manufacturing
- 603.2 × 203.2 × 209.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.828 m²
- Default board
- B-flute shipping · 3.2 mm caliper
- Board options
- E-flute KE-flute WB-fluteF-fluteEB double
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0710 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (3.2 mm for B-flute shipping). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 603.2 × 209.6 | L + T × H + 3T |
| Left side | 203.2 × 209.6 | W + T × H + 3T |
| Back | 603.2 × 209.6 | L + T × H + 3T |
| Right side | 200 × 209.6 | W × H + 3T |
| Glue flap | 32 × 209.6 | – |
| Crash-lock flap (back) | 603.2 × 122.6 | L + T × – |
| Glued web | 143.7 × 71.4 | – |
| Bottom side flap | 203.2 × 100 | – |
| Crash-lock flap (front) | 603.2 × 122.6 | L + T × – |
| Glued web | 71.4 × 143.7 | – |
| Bottom side flap | 200 × 100 | – |
| Top outer flap | 600 × 200 | L × – |
| Top inner flap ×2 | 196.8 × 200 | – |
| Top outer flap | 596.8 × 200 | L − T × – |
