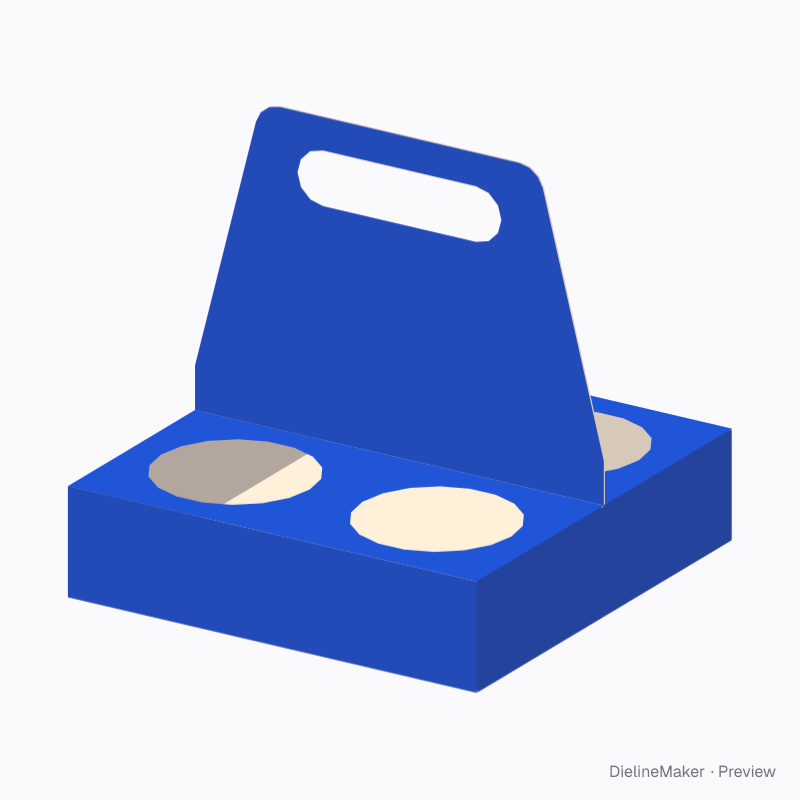

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
Parametric structureCarriers
Four medium cups carrier — Cup carrier dieline
Editable 200 × 200 × 195 mm starting point using cup carrier. Adjust the dimensions to your product before prototyping. A ready-sized preset of the cup carrier — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 200 × 195 mm
Outside200.9 × 200.9 × 195 mm
Flat blank299.5 × 790 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- —
- Inside size
- Length 200 · Depth 200 · Height 195 mm
- Size range
- Length 70–600 · Depth 90–600 · Height 70–320 mm
- Manufacturing
- 200.5 × 200.5 × 195 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.186 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- Kraft 350FBB 400SBS 350F-fluteSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Reverse crease
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 200.5 × 200.5 | L + T × W + T |
| Front | 200.5 × 50 | L + T × deck |
| Back | 200.5 × 50 | L + T × deck |
| Front corner ear ×2 | 45 × 49.1 | – |
| Back corner ear ×2 | 45 × 49.1 | – |
| Right side | 49.5 × 199.5 | W − T × deck − T |
| Left side | 49.5 × 199.5 | W − T × deck − T |
| Front deck | 200.5 × 99.8 | L + T × W/2 − T/2 |
| Back deck | 200.5 × 99.8 | L + T × W/2 − T/2 |
| Deck glue flap ×4 | 22.3 × 98.8 | – |
| Front handle | 200.5 × 145 | L + T × H − deck |
| Back handle | 200.5 × 145 | L + T × H − deck |
Adjustable in the editor
Beyond the size and board, this structure exposes 8 options; the template and 3D preview follow each change.
- Requested cupscount
- Cup rowscount
- Cups per rowcount
- Cup diametermm
- Deck heightmm
- Grip tabsmm
- Hand holeon / off
- Hole widthmm
