DM-CURVED-TOP-HANDLE-01Carriers
Curved-top cake carrier dieline

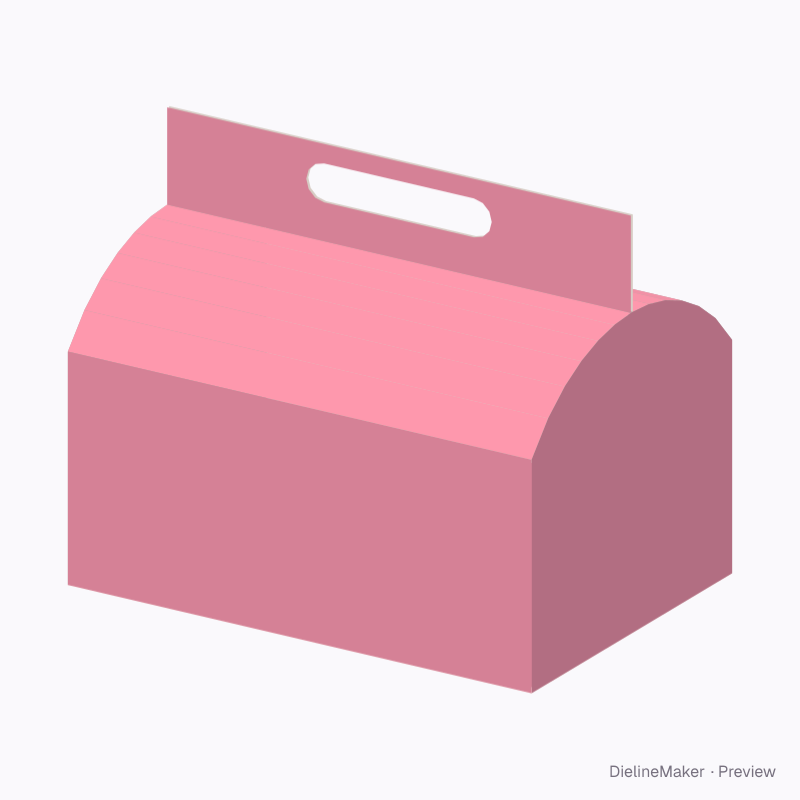

A carton whose front and back curve over into a barrel top and rise into a doubled carry handle; arched ends glued inside. A ready-sized preset of the curved-top carton with carrying handle — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 180 × 120 mm
Outside263.2 × 183.2 × 123.2 mm
Flat blank590 × 726.6 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CURVED-TOP-HANDLE-01
- Inside size
- Length 260 · Width 180 · Wall height 120 mm
- Size range
- Length 80–450 · Width 50–300 · Wall height 40–350 mm
- Manufacturing
- 261.6 × 181.6 × 121.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.252 m²
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- SBS 350Kraft 350FBB 400E-flute WE-flute KSBS 18 pt
- Good for

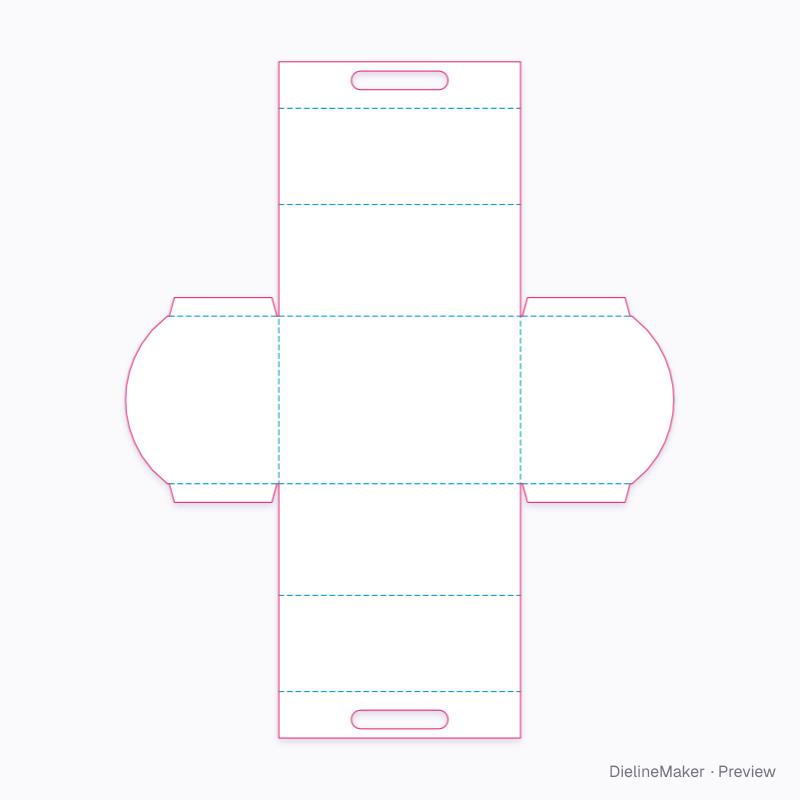

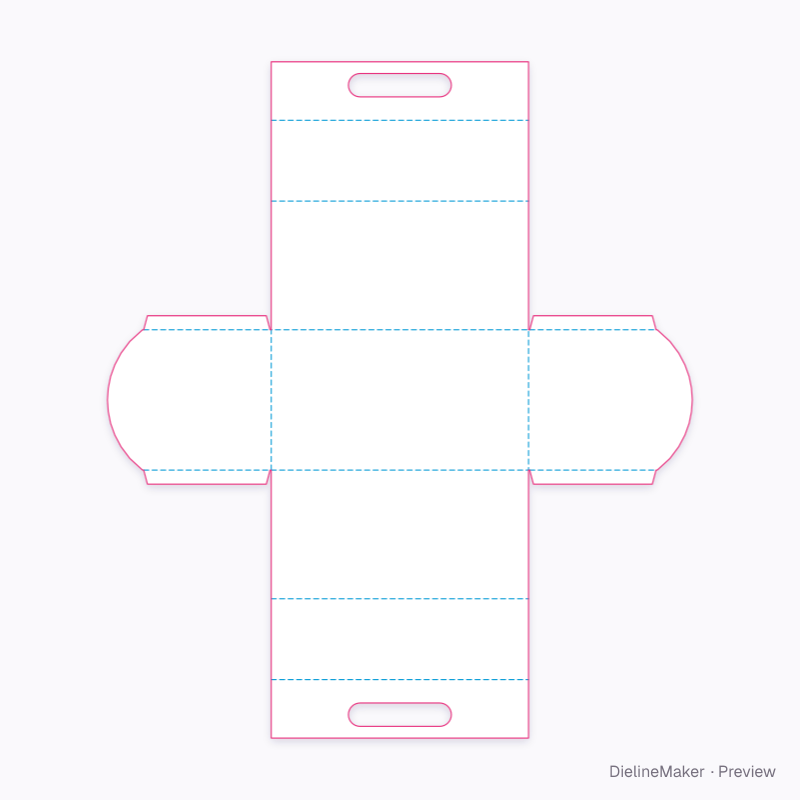

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CURVED-TOP-HANDLE-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 260 × 180 | L × W |
| Front | 260 × 120 | L × H |
| Back | 260 × 120 | L × H |
| Arched end ×2 | 165 × 180 | – × W |
| Curved top ×2 | 260 × 22 | L × – |
| Glue flap ×4 | 115.8 × 20 | – |
| Curved top ×2 | 260 × 18.6 | L × – |
| Curved top ×2 | 260 × 16.8 | L × – |
| Curved top ×2 | 260 × 15.8 | L × – |
| Curved top ×2 | 260 × 15.2 | L × – |
| Curved top ×2 | 260 × 14.9 | L × – |
| Handle ply ×2 | 260 × 50 | L × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Top arch risemm
- Handle heightmm
The curved-top carton with carrying handle family
The same structure with sizes, boards and options set for a use.
Preset
Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this curved-top cake carrier yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
