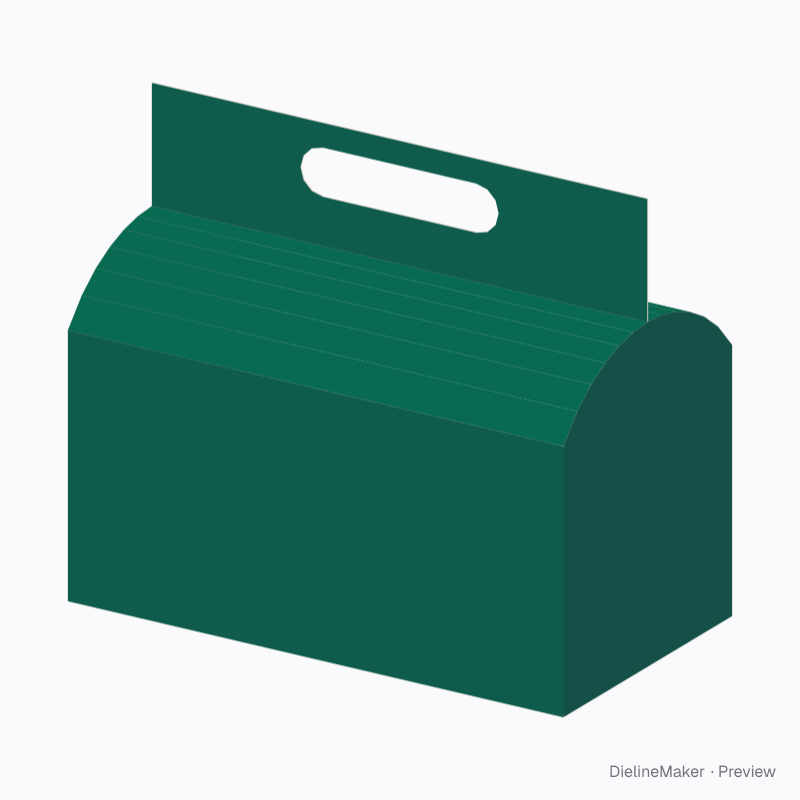

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-CURVED-TOP-HANDLE-01Carriers
Curved-top lunch box dieline
A carton whose front and back curve over into a barrel top and rise into a doubled carry handle; arched ends glued inside. A ready-sized preset of the curved-top carton with carrying handle — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 120 × 110 mm
Outside220.9 × 120.9 × 110.9 mm
Flat blank500 × 578.3 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-CURVED-TOP-HANDLE-01
- Inside size
- Length 220 · Width 120 · Wall height 110 mm
- Size range
- Length 80–450 · Width 50–300 · Wall height 40–350 mm
- Manufacturing
- 220.5 × 120.5 × 110.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.164 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350Kraft 350FBB 400E-flute WE-flute KSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-CURVED-TOP-HANDLE-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 220 × 120 | L × W |
| Front | 220 × 110 | L × H |
| Back | 220 × 110 | L × H |
| Arched end ×2 | 140 × 120 | – × W |
| Curved top ×2 | 220 × 14.7 | L × – |
| Glue flap ×4 | 108.1 × 12 | – |
| Curved top ×2 | 220 × 12.5 | L × – |
| Curved top ×2 | 220 × 11.3 | L × – |
| Curved top ×2 | 220 × 10.6 | L × – |
| Curved top ×2 | 220 × 10.2 | L × – |
| Curved top ×2 | 220 × 10 | L × – |
| Handle ply ×2 | 220 × 50 | L × – |
