Domed-lid gift box dieline
Two-piece gift box with a curved, domed lid over a flanged base. A ready-sized preset of the curved-top lid and base — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside200 × 130 × 70 mm
Outside221.3 × 151.3 × 70.3 mm
Flat blank367.9 × 269.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F20.01.00.00
- Inside size
- Length (A) 200 · Width (B) 130 · Height (closed) 70 mm
- Size range
- Length (A) 80–500 · Width (B) 60–400 · Height (closed) 30–70 mm
- Manufacturing
- 200.5 × 130.5 × 70 mm score to score · inside vs outside sizes
- Parts
- 2 parts — Base, Curved lid
- Board area
- 0.157 m² · about 4 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350FBB 400GD2 350Kraft 350SBS 300SBS 18 pt
- Good for
The flat dieline

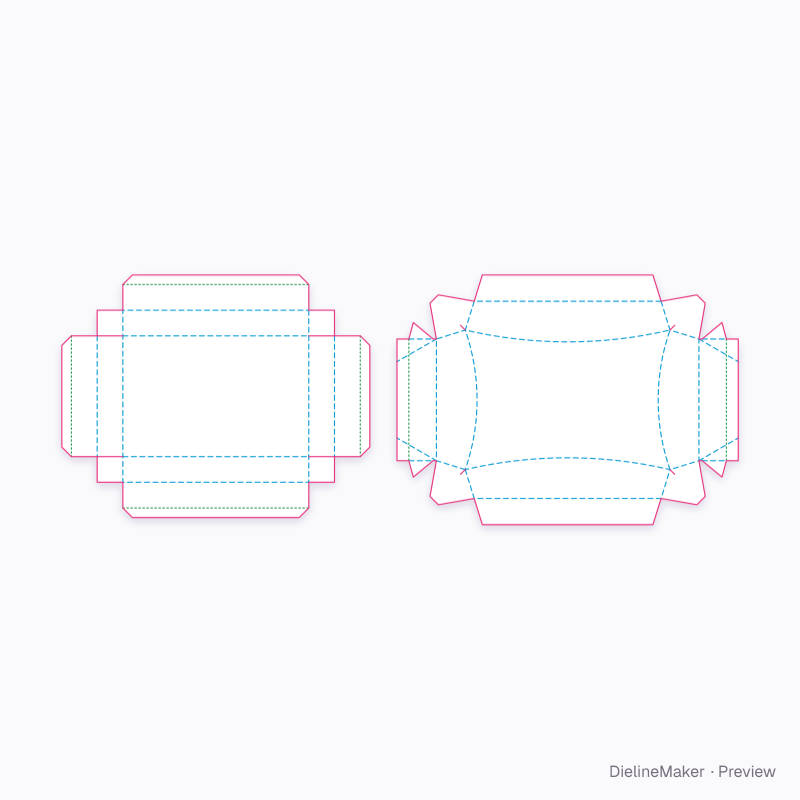

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F20.01.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| BaseBase | 200.5 × 130.5 | L + T × W + T |
| Front wallBase | 200.5 × 27.7 | L + T × – |
| Back wallBase | 200.5 × 27.7 | L + T × – |
| Front outer layerBase | 200.5 × 27.7 | L + T × – |
| Back outer layerBase | 200.5 × 27.7 | L + T × – |
| Front flangeBase | 200.5 × 10.3 | L + T × – |
| Back flangeBase | 200.5 × 10.3 | L + T × – |
| Corner ear ×4Base | 27.7 × 27.7 | – |
| End wall ×2Base | 27.7 × 130.5 | – × W + T |
| End outer layer ×2Base | 27.7 × 130.5 | – × W + T |
| End flange ×2Base | 10.3 × 130.5 | – × W + T |
| Pose rigCurved lid | 100 × 45.3 | – |
| Curved topCurved lid | 100 × 120.7 | – |
| Lid back wallCurved lid | 220.8 × 31.1 | – |
| Lid lining flap ×2Curved lid | 201.5 × 28.3 | – |
| Lid right wallCurved lid | 31.1 × 150.8 | – |
8 more panels are listed in the editor’s structure step.
