The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
ECMA F80.24.00.00Trays & lids
Uneven compartment insert 150×60×120 dieline
A large compartment beside a small one, e.g. for a bottle and its accessories. A ready-sized preset of the diagonal compartment insert — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside150 × 60 × 120 mm
Outside150.9 × 60.9 × 120 mm
Flat blank631.3 × 120 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- ECMA F80.24.00.00
- Inside size
- Length 150 · Width 60 · Height 120 mm
- Size range
- Length 50–600 · Width 25–400 · Height 20–400 mm
- Manufacturing
- 150.5 × 60.5 × 120 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.076 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- Kraft board 350 g · 0.46 mm caliper
- Board options
- SBS 350Kraft 350FBB 400GD2 350F-fluteE-flute KE-flute WSBS 18 pt
- Good for

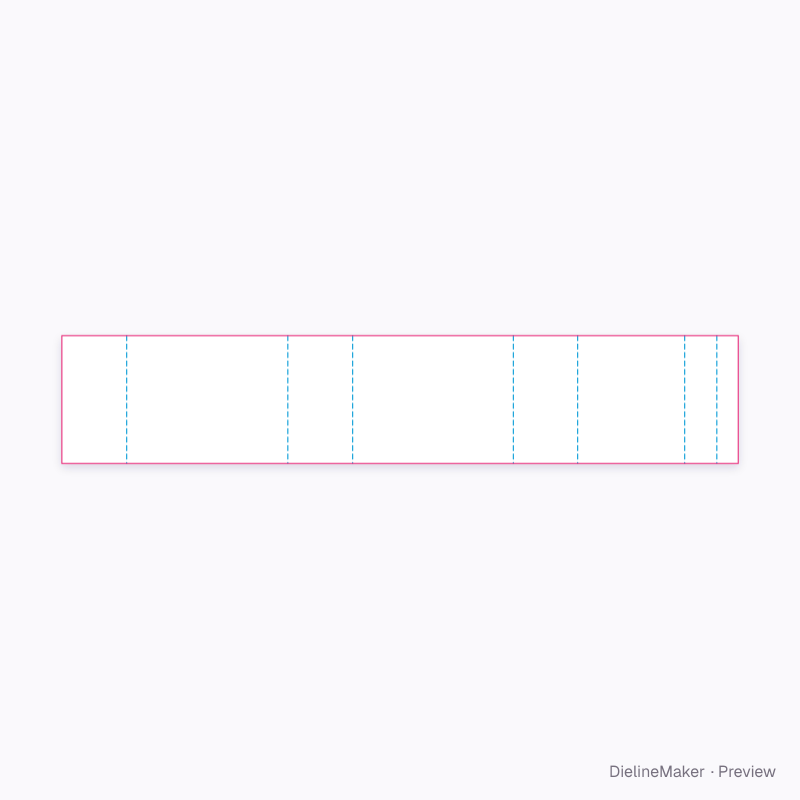

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this ECMA F80.24.00.00 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.46 mm for Kraft board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| End wall ×2 | 60.5 × 120 | W + T × H |
| Side wall | 150.5 × 120 | L + T × H |
| Side wall | 150 × 120 | L × H |
| End panel (inside the end wall) | 60 × 120 | W × H |
| Divider | 99.9 × 120 | – × H |
| Spacer | 30 × 120 | – × H |
| Glue flap | 20 × 120 | – × H |
Adjustable in the editor
Beyond the size and board, this structure exposes 3 options; the template and 3D preview follow each change.
- Compartments2 options
- Divider reachmm
- Spacermm
