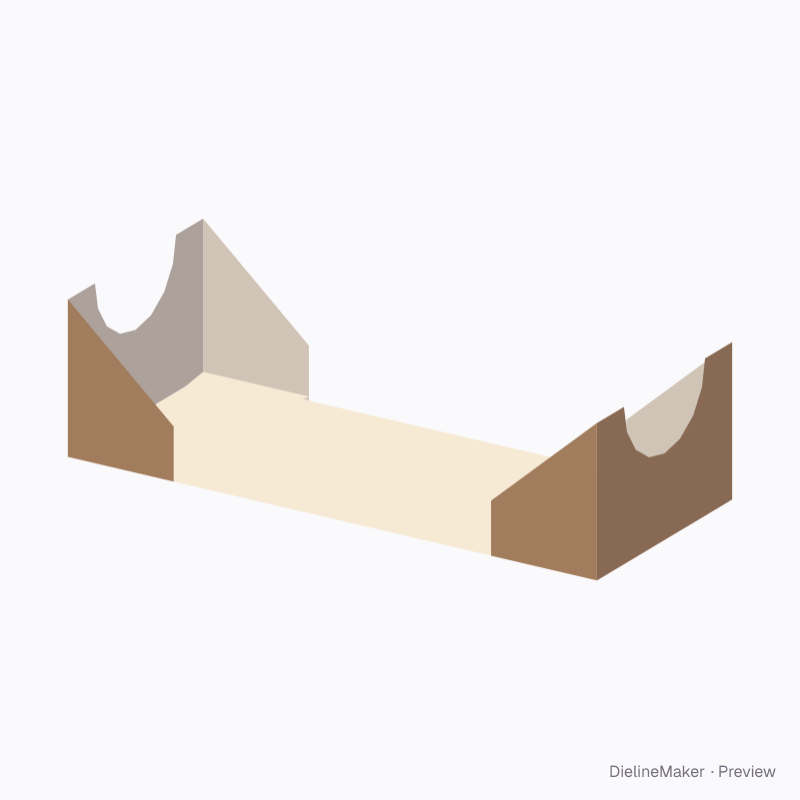

The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-SADDLE-ENDWALL-INSERT-01Trays & lids
Cradle end-wall insert dieline
A one-piece insert that holds a bottle, tube or roll horizontally: two upright end walls with half-round cradles braced by side wings, or two A-frame saddles with a cradle notch across the apex, joined by a base. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside220 × 90 × 60 mm
Outside223.2 × 90 × 61.6 mm
Flat blank340 × 178 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-SADDLE-ENDWALL-INSERT-01
- Inside size
- Length 220 · Width 90 · Height 60 mm
- Size range
- Length 60–600 · Width 30–300 · Height 20–250 mm
- Manufacturing
- 220 × 90 × 60 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.038 m² · about 8 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KSBS 350Kraft 350SBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-SADDLE-ENDWALL-INSERT-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 220 × 90 | L × W |
| Cradle end wall ×2 | 60 × 90 | H × W |
| Side wing ×4 | 60 × 44 | H × – |
| Glue foot ×4 | 15 × 44 | – |
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Supports2 options
- Cradle diametermm
Ready-sized cradle end-wall insert presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset
Preset

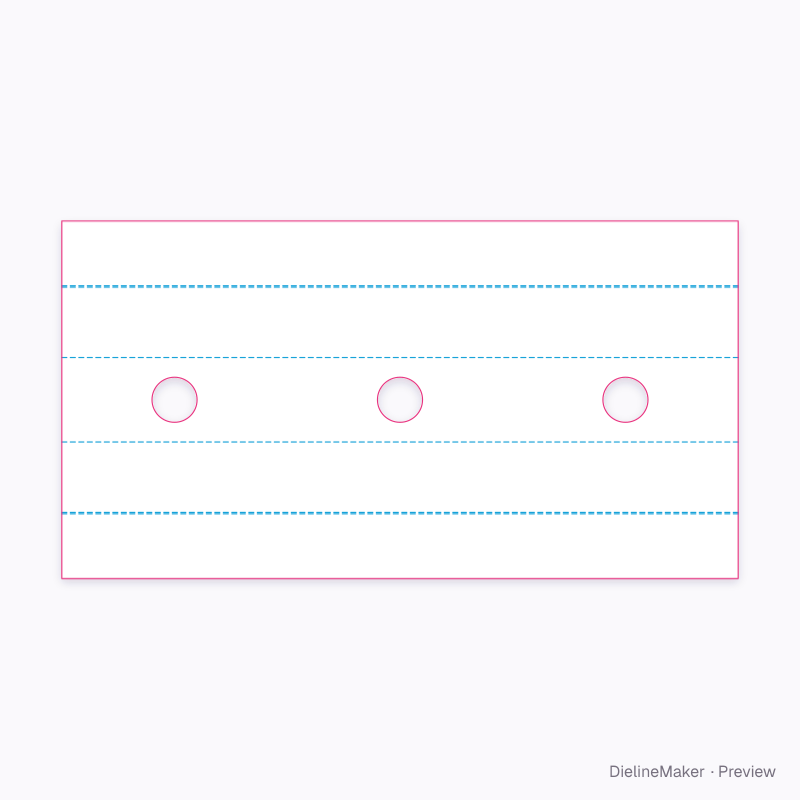

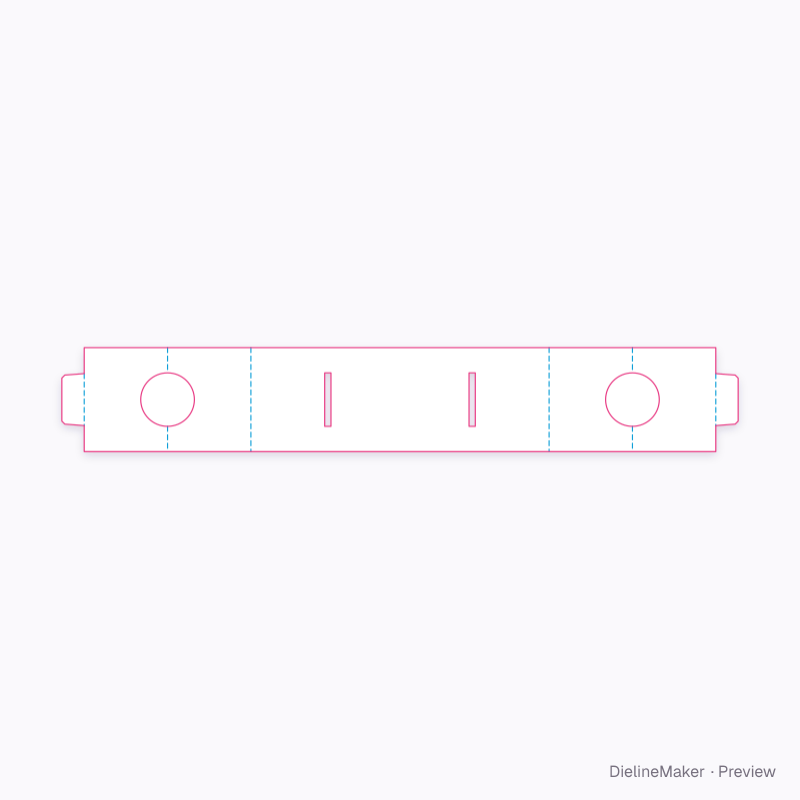

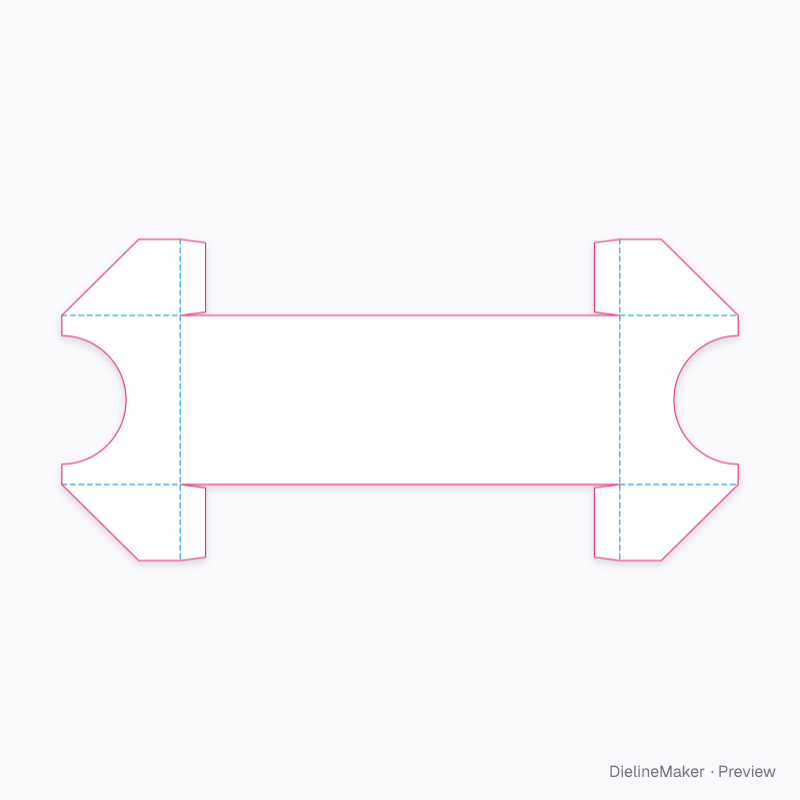

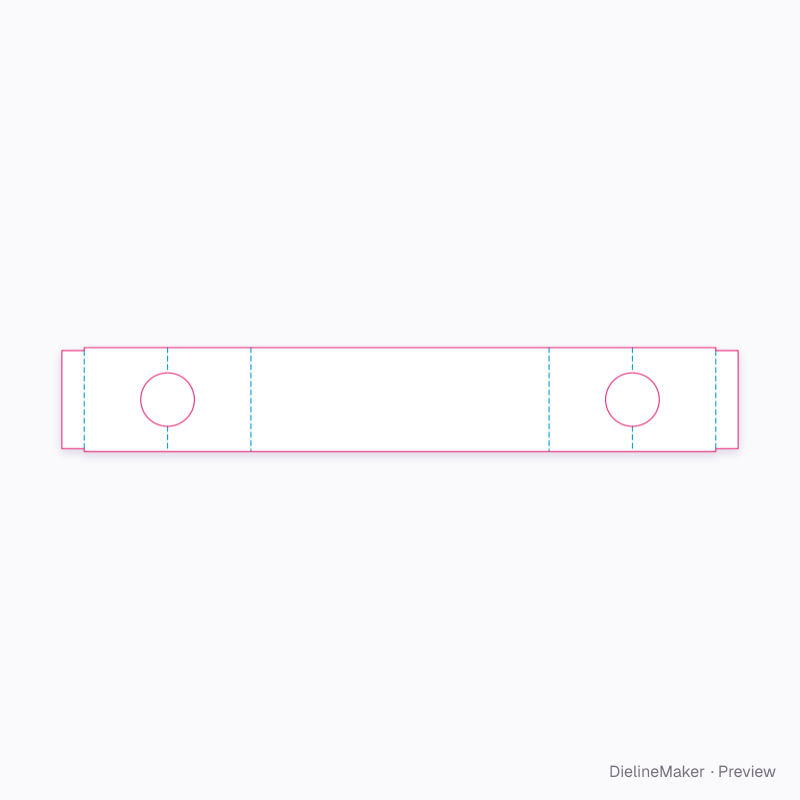

Similar structures
Other structures built in a similar way, matched on code family, category, closures and proportions.
Make this cradle end-wall insert yours
Open it in the editor to set your size, drop artwork on each face, check bleed and safe areas, and export print-ready PDF with the dieline on its own layer — or stage it in a 3D scene for a mockup.
