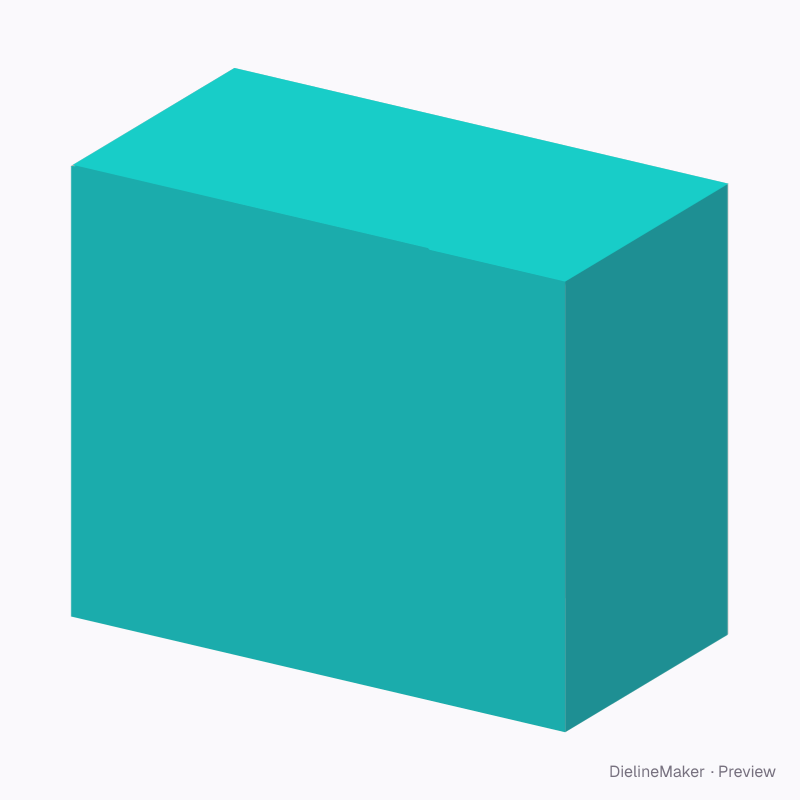

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
DM-DISPENSER-TUCK-01Display
Wrapped pet treat dispenser — Dispenser carton dieline
Editable 180 × 95 × 150 mm starting point using dispenser carton. Adjust the dimensions to your product before prototyping. A ready-sized preset of the dispenser carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside180 × 95 × 150 mm
Outside181 × 96 × 151 mm
Flat blank563.5 × 369.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-DISPENSER-TUCK-01
- Inside size
- Length 180 · Width 95 · Height 150 mm
- Size range
- Length 50–400 · Width 25–300 · Height 50–400 mm
- Manufacturing
- 180.5 × 95.5 × 150.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.143 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350F-fluteE-flute WSBS 18 pt
- Good for
The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-DISPENSER-TUCK-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 180.5 × 150.5 | L + T × H + T |
| Left side | 95.5 × 150.5 | W + T × H + T |
| Back | 180.5 × 150.5 | L + T × H + T |
| Right side | 95 × 150.5 | W × H + T |
| Glue flap | 12 × 150.5 | – × H + T |
| Top closure | 180.5 × 94.5 | L + T × W − T |
| Top tuck | 179.5 × 15 | L − T × – |
| Top dust flap | 95.5 × 55 | W + T × – |
| Top dust flap | 95 × 55 | W × – |
| Bottom closure | 180.5 × 94.5 | L + T × W − T |
| Bottom tuck | 179.5 × 15 | L − T × – |
| Bottom dust flap | 95.5 × 55 | W + T × – |
| Bottom dust flap | 95 × 55 | W × – |
Adjustable in the editor
Beyond the size and board, this structure exposes 9 options; the template and 3D preview follow each change.
- Dispenser4 options
- Bottom3 options
- Top tuck2 options
- Front lipmm
- Opening heightmm
- Tuck depthmm
- Slit lockon / off
- Thumb notchon / off
- Zigzag flap edges4 options
