DM-ADVENT-DOORS-01Display
Advent calendar carton with 24 doors dieline
Slim carton whose front carries 24 small hinged doors, perforated on three sides and creased to lift open. A ready-sized preset of the dispenser carton — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside300 × 30 × 220 mm
Outside301 × 31 × 221 mm
Flat blank673.5 × 303.5 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- DM-ADVENT-DOORS-01
- Inside size
- Length 300 · Width 30 · Height 220 mm
- Size range
- Length 50–400 · Width 25–300 · Height 50–400 mm
- Manufacturing
- 300.5 × 30.5 × 220.5 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.175 m² · about 2 up on a 720 × 1020 mm sheet
- Default board
- SBS white board 350 g · 0.5 mm caliper
- Board options
- SBS 350SBS 300FBB 400GD2 350Kraft 350F-fluteE-flute WSBS 18 pt
- Good for

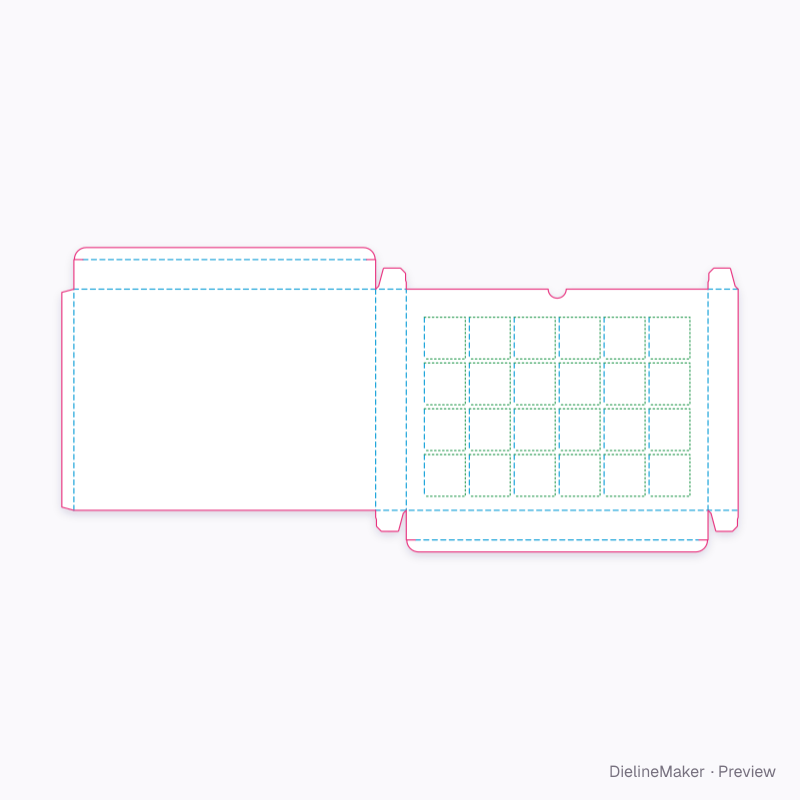

The flat dieline

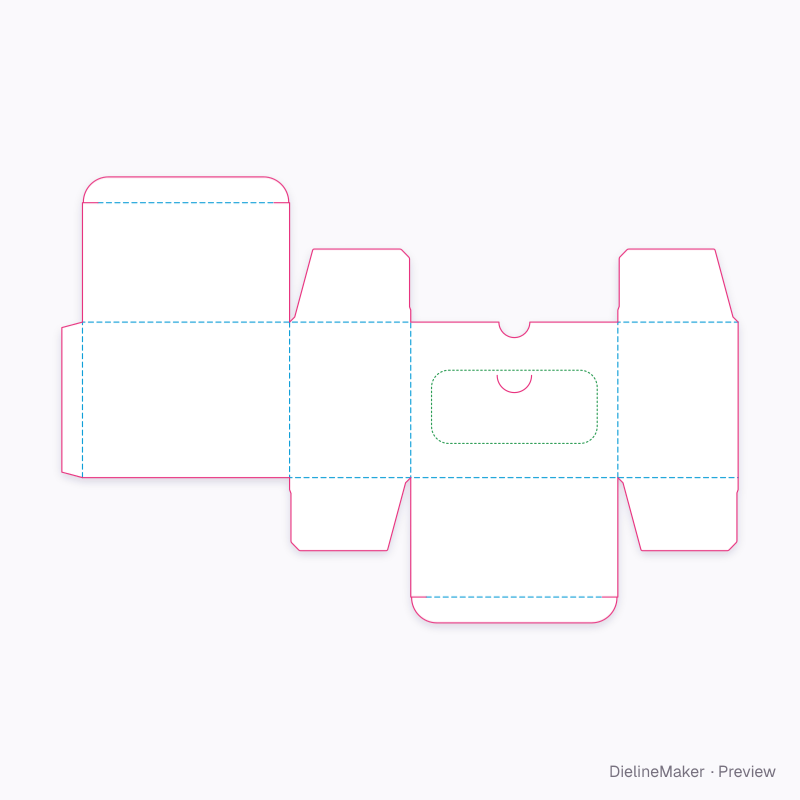

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Perforation
- Cut
- Glue area
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this DM-ADVENT-DOORS-01 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (0.5 mm for SBS white board 350 g). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Front | 300.5 × 220.5 | L + T × H + T |
| Left side | 30.5 × 220.5 | W + T × H + T |
| Back | 300.5 × 220.5 | L + T × H + T |
| Right side | 30 × 220.5 | W × H + T |
| Glue flap | 12 × 220.5 | – × H + T |
| Top closure | 300.5 × 29.5 | L + T × W − T |
| Top tuck | 299.5 × 12 | L − T × – |
| Top dust flap | 30.5 × 21 | W + T × – |
| Top dust flap | 30 × 21 | W × – |
| Bottom closure | 300.5 × 29.5 | L + T × W − T |
| Bottom tuck | 299.5 × 12 | L − T × – |
| Bottom dust flap | 30.5 × 21 | W + T × – |
| Bottom dust flap | 30 × 21 | W × – |
