FEFCO 0426Mailer
Tea tasting mailer — Double-front box with lid dieline
Editable 260 × 180 × 55 mm starting point using double-front box with lid. Adjust the dimensions to your product before prototyping. A ready-sized preset of the double-front box with lid — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside260 × 180 × 55 mm
Outside266.4 × 188 × 58.2 mm
Flat blank376.4 × 586.8 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0426
- Inside size
- Length 260 · Width 180 · Height 55 mm
- Size range
- Length 200–600 · Width 150–450 · Height 25–140 mm
- Manufacturing
- 264.8 × 186.4 × 56.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.203 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute white / kraft · 1.6 mm caliper
- Board options
- E-flute WE-flute KB-fluteF-flute
- Good for
The flat dieline

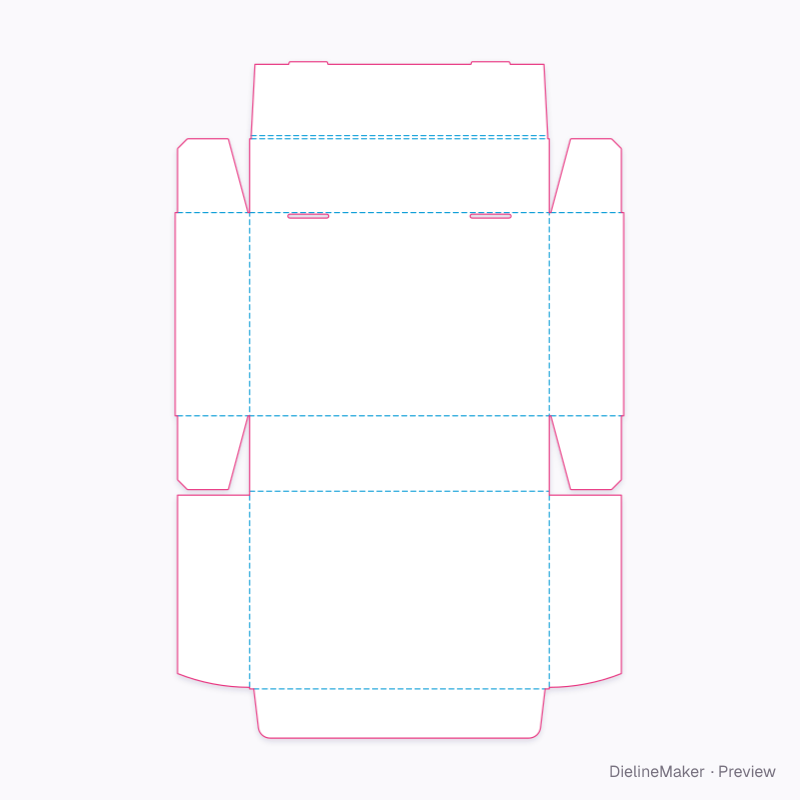

Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0426 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute white / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Base | 264.8 × 186.4 | L + 3T × W + 4T |
| Left end | 55.8 × 186.4 | W + 4T × H + T/2 |
| Right end | 55.8 × 186.4 | W + 4T × H + T/2 |
| Corner ear ×4 | 51.8 × 55 | H − 2T × H |
| Back | 264.8 × 56.6 | L + 3T × H + T |
| Front | 264.8 × 55 | – × H |
| Front roll | 261.6 × 3.2 | L + T × – |
| Front (inside) | 261.6 × 55 | L + T × H |
| Lid | 264.8 × 180.8 | L + 3T × W + 2.5T − DC |
| Lid ear ×2 | 53.4 × 175.2 | H − T × – |
| Front tuck | 256.4 × 49.8 | – |
