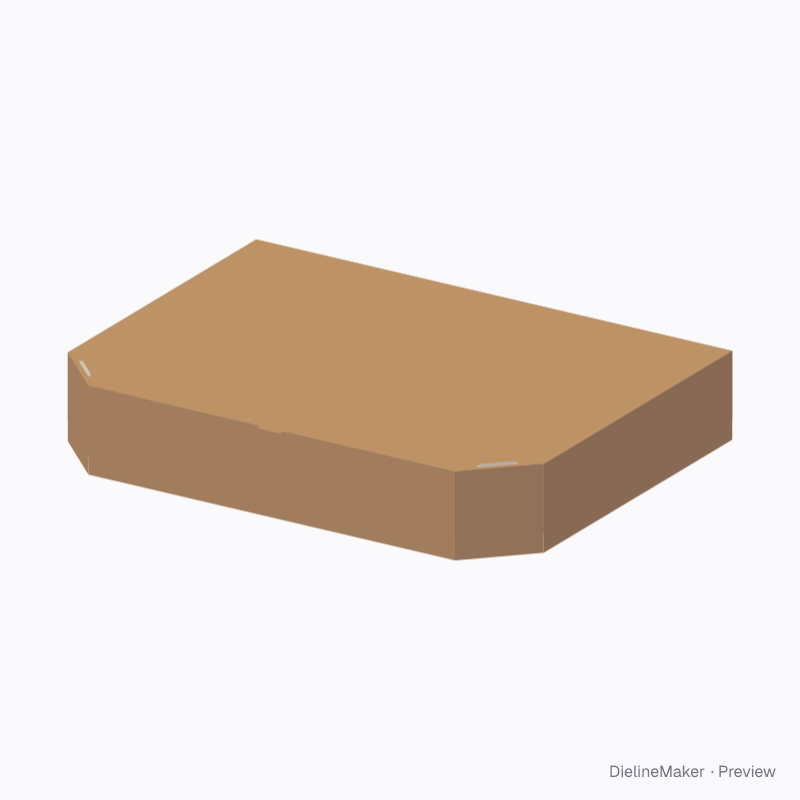

Preview image
The real blank at this size, folded by the same engine as the studio. The artwork is a sample from a fictional brand — swap in your own in the editor.
FEFCO 0462Trays & lids
Cut-corner hinged box dieline
Source-specific cut-corner constructions with glued corner faces or integral hinged covers and retaining flaps. A parametric template — change the length, width and height and every panel, tuck and glue flap is redrawn to match.
Inside320 × 240 × 55 mm
Outside332.8 × 249.6 × 58.2 mm
Flat blank491.3 × 694.9 mm
Download the dielinePro
Sign in to download. Dieline downloads are part of Pro: PDF, Illustrator, SVG and DXF, cut, crease and bleed on separate layers, without a watermark. See plans
- Reference
- FEFCO 0462
- Inside size
- Length 320 · Width 240 · Height 55 mm
- Size range
- Length 120–900 · Width 100–650 · Height 20–180 mm
- Manufacturing
- 331.2 × 248 × 56.6 mm score to score · inside vs outside sizes
- Parts
- One blank
- Board area
- 0.281 m² · about 1 up on a 720 × 1020 mm sheet
- Default board
- E-flute kraft / kraft · 1.6 mm caliper
- Board options
- E-flute KE-flute WB-fluteSBS 350SBS 18 pt
- Good for

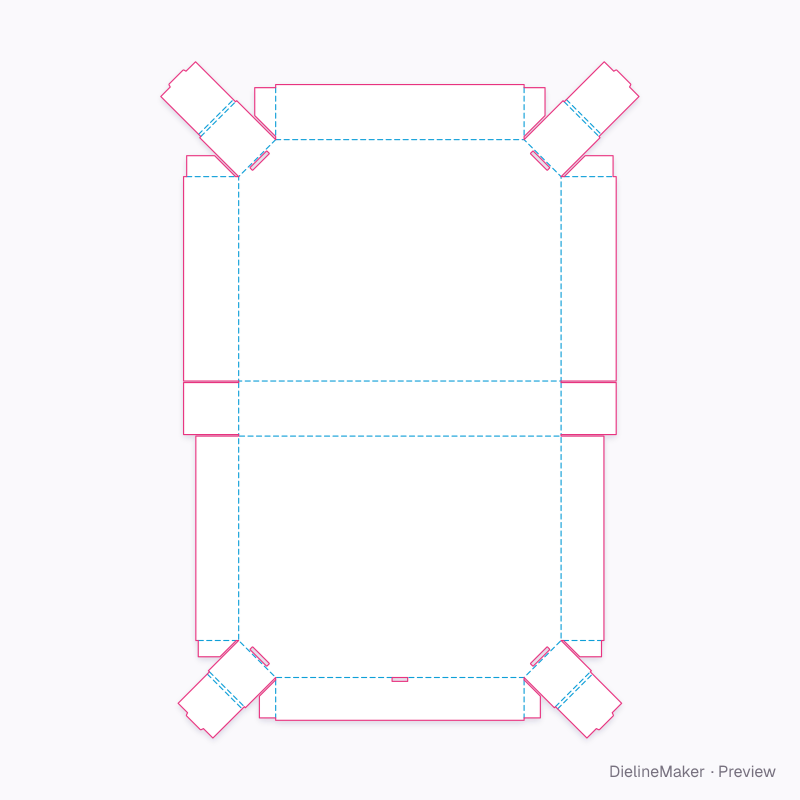

The flat dieline
Exactly what the downloads contain, drawn from the template at its default size, with a 3 mm bleed. How to read a dieline.
- Crease
- Cut
- Bleed 3 mm
How the blank is sized
Score-to-score panel sizes of this FEFCO 0462 blank at the default size, with the formula each one follows. L, W and H are the inside dimensions; T is the board caliper (1.6 mm for E-flute kraft / kraft). Change the size or board in the editor and every panel is recalculated.
| Panel | Size (mm) | Formula |
|---|---|---|
| Cut-corner floor | 331.2 × 248 | – |
| n | 255.2 × 56.6 | – × H + T |
| n start ear | 21.5 × 56.6 | – × H + T |
| n end ear | 21.5 × 56.6 | – × H + T |
| e | 56.6 × 210 | H + T × – |
| e start ear | 56.6 × 21.5 | H + T × – |
| s | 331.2 × 56.6 | – × H + T |
| s start ear | 56.6 × 53.4 | – × H − T |
| s end ear | 56.6 × 53.4 | – × H − T |
| w | 56.6 × 210 | H + T × – |
| w end ear | 56.6 × 21.5 | H + T × – |
| Diagonal return wall ×2 | 53.7 × 56.6 | – × H + T |
| Diagonal return wall roll ×4 | 50.5 × 3.2 | – |
| Diagonal return wall (inside) ×2 | 50.5 × 58 | – |
| Matching cut-corner lid | 331.2 × 248 | – |
| lid n | 255.2 × 44 | – |
9 more panels are listed in the editor’s structure step.
Adjustable in the editor
Beyond the size and board, this structure exposes 2 options; the template and 3D preview follow each change.
- Construction2 options
- Corner setbackmm
Ready-sized cut-corner hinged box presets
The same structure with sizes, boards and options set for a use.
- Preset
Preset

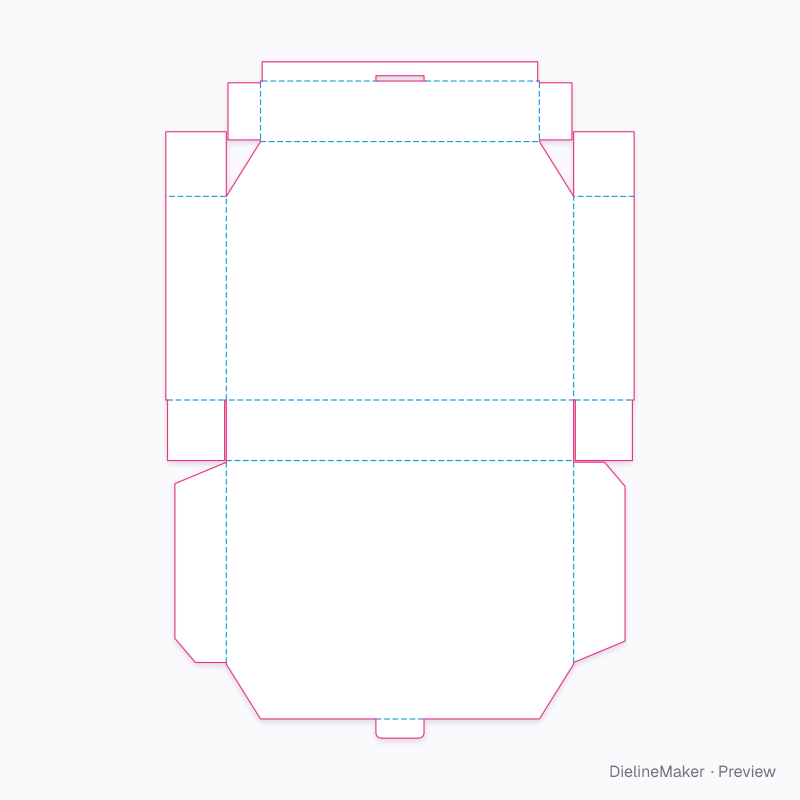

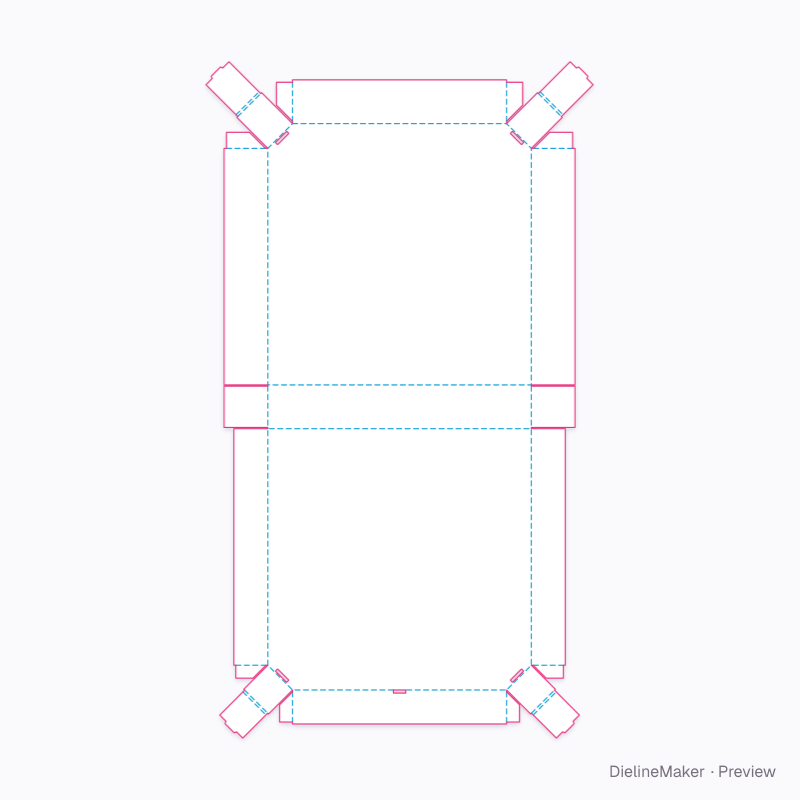

Similar structures
